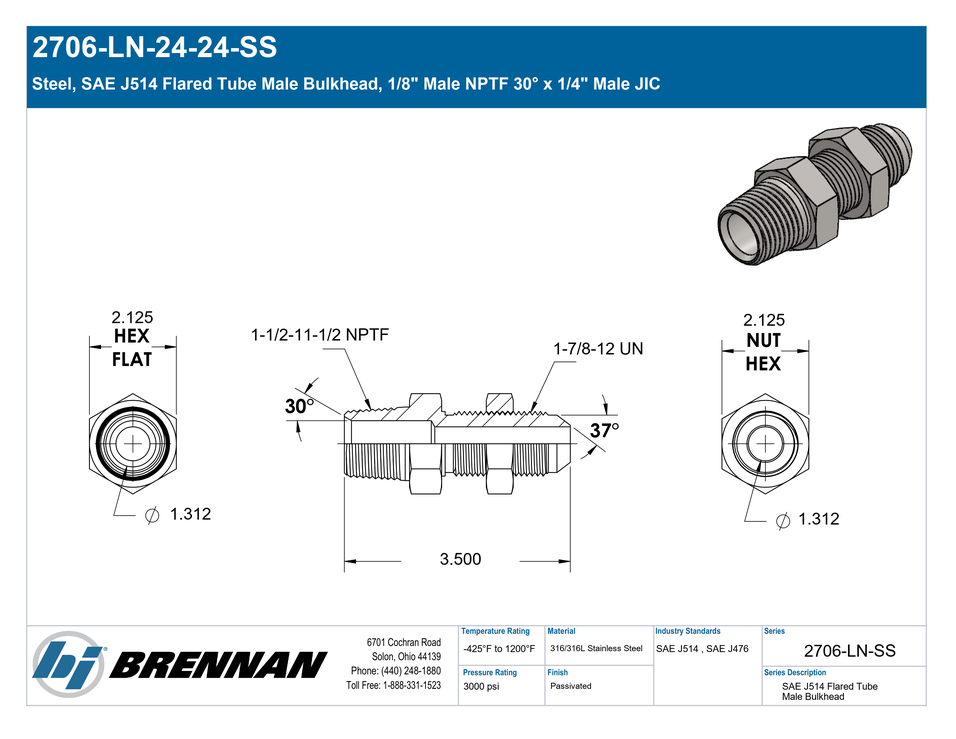

2706-LN-24-24-SS - Capital Rubber & Gasket: A Singer Industrial Company

Steel, SAE J514 Flared Tube Male Bulkhead, 1/8″ Male NPTF 30° x 1/4″ Male JIC

Connection Details	Side 1 Connection Type: Male NPTF 30° Side 1 Pipe Size: 1-1/2" Side 1 Thread Type: 1-1/2-11-1/2 NPTF Side 1 Standard: SAE J476 Side 1 Role: Line/Pipe Connection Side 2 Connection Type: Male JIC Side 2 Tube OD: 1-1/2" Side 2 Thread Type: 1-7/8-12 UN Side 2 Standard: SAE J514 – Class 2A Thread Side 2 Role: Line/Tube Connection
Body & Materials	Shape: Straight Shape Type: Male Bulkhead Primary Material: Stainless Steel Material Grade: 316/316L Surface Treatment: Passivated Feature: Bulkhead
Dimensions	Hex/Wrench: 2.125 Weight: 1.54 lb
Performance Specifications	Working Pressure: 3000 psi Temperature Range: -425°F to 1200°F Burst Pressure: 12000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 259-2240-24-24 Parker TFD Part Number: 24 WFTX-WLN-SS
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Male Pipe x Male JIC Bulkhead, With Lock Nut
Technical Series Configuration	SAE J476 Male NPTF x SAE J514 Male JIC Tube Bulkhead
Side 1 Connection Type	Male NPTF 30°
Side 2 Connection Type	Male JIC
Shape	Straight
Product Type	Fittings
