2705-LN-06-06-SS - Capital Rubber & Gasket: A Singer Industrial Company

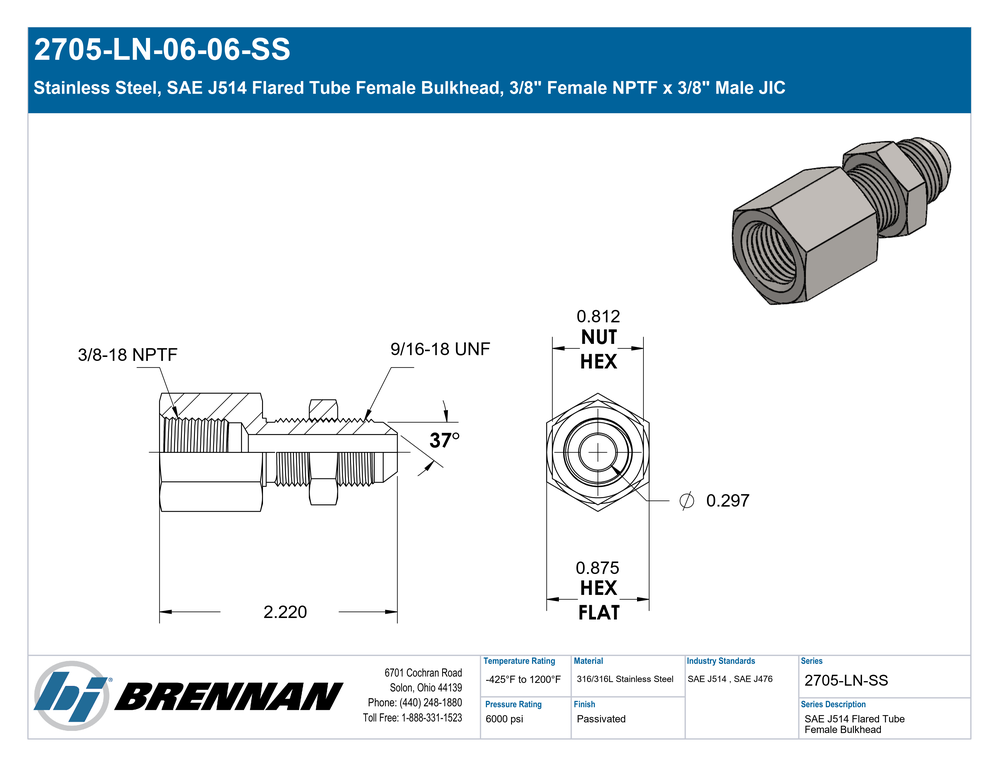

Stainless Steel, SAE J514 Flared Tube Female Bulkhead, 3/8″ Female NPTF x 3/8″ Male JIC

Connection Details	Side 1 Connection Type: Female NPTF Side 1 Pipe Size: 3/8" Side 1 Thread Type: 3/8-18 NPTF Side 1 Standard: SAE J476 Side 1 Role: Pipe Connection Side 2 Connection Type: Male JIC Side 2 Tube OD: 3/8" Side 2 Thread Type: 9/16-18 UNF Side 2 Standard: SAE J514 – Class 2A Thread Side 2 Role: Line/Tube Connection
Body & Materials	Shape: Straight Shape Type: Female Bulkhead Primary Material: Stainless Steel Material Grade: 316/316L Surface Treatment: Passivated Feature: Bulkhead
Dimensions	Hex/Wrench: 0.875 Weight: 0.23 lb
Performance Specifications	Working Pressure: 6000 psi Temperature Range: -425°F to 1200°F Burst Pressure: 24000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 259-2239-6-6 Parker TFD Part Number: 6-6 WGTX-WLN-SS
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Female Pipe x Male JIC Bulkhead, With Lock Nut
Technical Series Configuration	SAE J476 Female NPTF x SAE J514 Male JIC Tube Bulkhead
Side 1 Connection Type	Female NPTF
Side 2 Connection Type	Male JIC
Shape	Straight
Product Type	Fittings
