2705-06-08-B - Capital Rubber & Gasket: A Singer Industrial Company

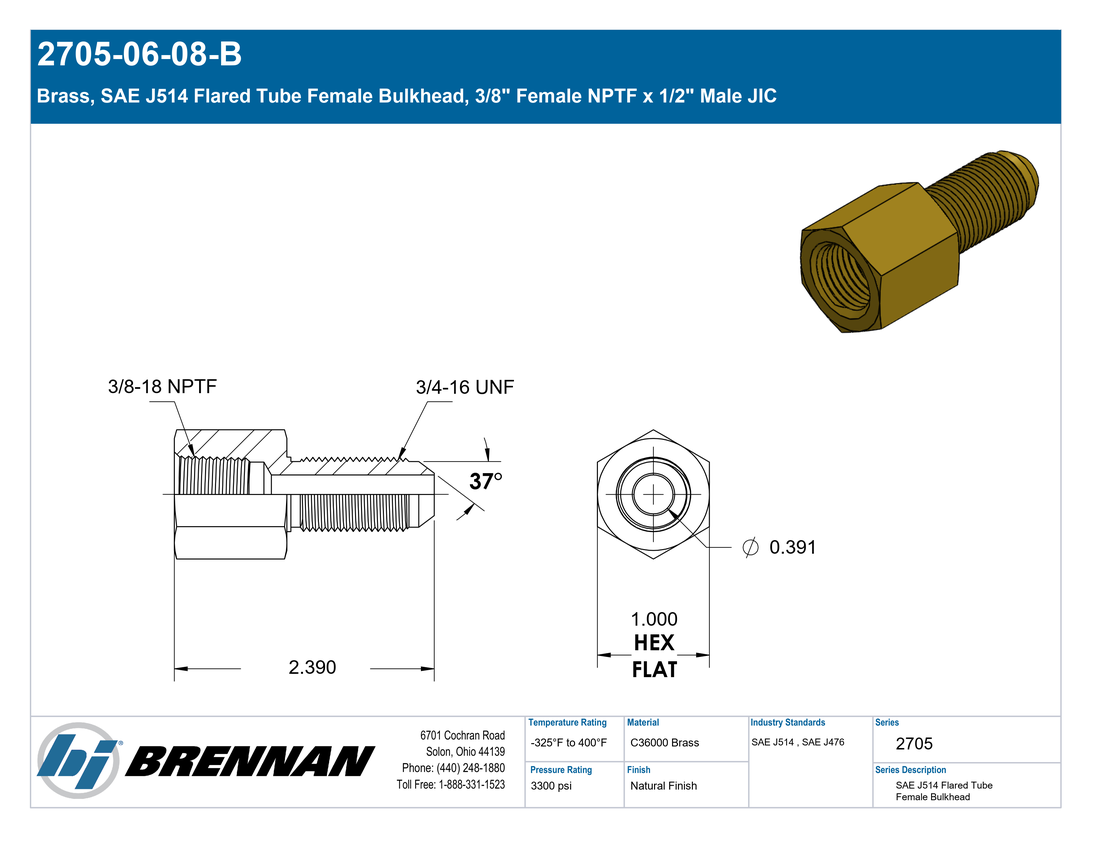

Brass, SAE J514 Flared Tube Female Bulkhead, 3/8″ Female NPTF x 1/2″ Male JIC

Connection Details	Side 1 Connection Type: Female NPTF Side 1 Pipe Size: 3/8" Side 1 Thread Type: 3/8-18 NPTF Side 1 Standard: SAE J476 Side 1 Role: Pipe Connection Side 2 Connection Type: Male JIC Side 2 Tube OD: 1/2" Side 2 Thread Type: 3/4-16 UNF Side 2 Standard: SAE J514 – Class 2A Thread Side 2 Role: Line/Tube Connection
Body & Materials	Shape: Straight Shape Type: Female Bulkhead Primary Material: Brass Material Grade: C36000 Surface Treatment: Natural Finish Feature: Bulkhead
Dimensions	Hex/Wrench: 1 Weight: 0.29 lb
Performance Specifications	Working Pressure: 3300 psi Temperature Range: -325°F to 400°F Burst Pressure: 13200 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 2239-1-6-8B Parker Hose Part Number: 0203-6-8NB Parker TFD Part Number: 8 WGTX-B
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6c (Lead in copper alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	Female Pipe x Male JIC Bulkhead
Technical Series Configuration	SAE J476 Female NPTF x SAE J514 Male JIC Tube Bulkhead
Side 1 Connection Type	Female NPTF
Side 2 Connection Type	Male JIC
Shape	Straight
Product Type	Fittings
