2704-LN-16-16-16-FG - Capital Rubber & Gasket: A Singer Industrial Company

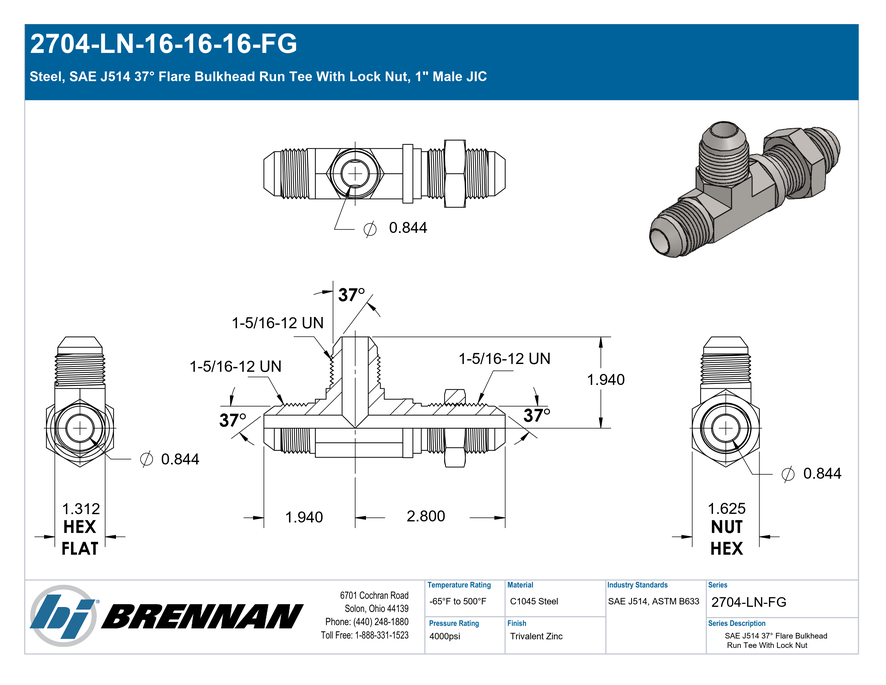

Steel, SAE J514 37° Flare Bulkhead Run Tee With Lock Nut, 1″ Male JIC

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 1" Side 1 Thread Type: 1-5/16-12 UN Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Male JIC Side 2 Tube OD: 1" Side 2 Thread Type: 1-5/16-12 UN Side 2 Standard: SAE J514 – Class 2A Thread Side 2 Role: Line/Tube Connection Side 3 Connection Type: Male JIC Side 3 Tube OD: 1" Side 3 Thread Type: 1-5/16-12 UN Side 3 Standard: SAE J514 – Class 2A Thread Side 3 Role: Line/Tube Connection
Body & Materials	Shape: Tee Shape Type: Bulkhead Run Tee Primary Material: Steel Material Grade: C1045 Plating: Trivalent Zinc Feature: Bulkhead
Dimensions	Weight: 1.34 lb
Performance Specifications	Working Pressure: 4000 psi Temperature Range: -65°F to 500°F Corrosion Resistance: 120 hrs no white rust; 240 hrs no red rust per ASTM B117 Burst Pressure: 16000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 203008-16-16S Parker TFD Part Number: 16 WJJTX-WLN-S
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Male JIC x Male JIC Bulkhead x Male JIC, With Lock Nut
Technical Series Configuration	SAE J514 Male JIC Tube x Male JIC Tube Bulkhead x Male JIC Tube Run Tee With Lock Nut
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Male JIC
Shape	Tee
Product Type	Fittings
