2701-14-14-SS - Capital Rubber & Gasket: A Singer Industrial Company

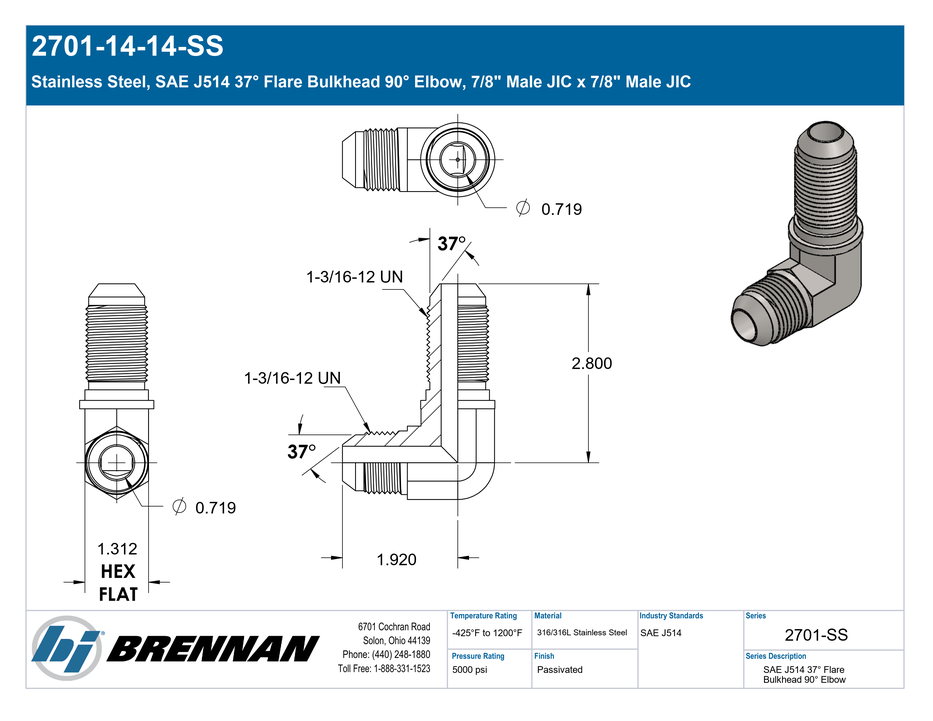

Stainless Steel, SAE J514 37° Flare Bulkhead 90° Elbow, 7/8″ Male JIC x 7/8″ Male JIC

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 7/8" Side 1 Thread Type: 1-3/16-12 UN Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Male JIC Side 2 Tube OD: 7/8" Side 2 Thread Type: 1-3/16-12 UN Side 2 Standard: SAE J514 – Class 2A Thread Side 2 Role: Line/Tube Connection
Body & Materials	Shape: 90° Elbow Shape Type: Bulkhead Elbow Primary Material: Stainless Steel Material Grade: 316/316L Feature: Bulkhead
Dimensions	Weight: 1.02 lb
Performance Specifications	Working Pressure: 5000 psi Temperature Range: -425°F to 1200°F Burst Pressure: 20000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 259-2043-1-14-14 Parker TFD Part Number: 14 WETX-SS SAE J514 Part Number: SAE J514 14-14 070701S
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Male JIC x Male JIC Bulkhead
Technical Series Configuration	SAE J514 Male JIC Tube x Male JIC Tube Bulkhead 90° Elbow
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Male JIC
Shape	90° Elbow
Product Type	Fittings
