2700-LN-32-32-SS - Capital Rubber & Gasket: A Singer Industrial Company

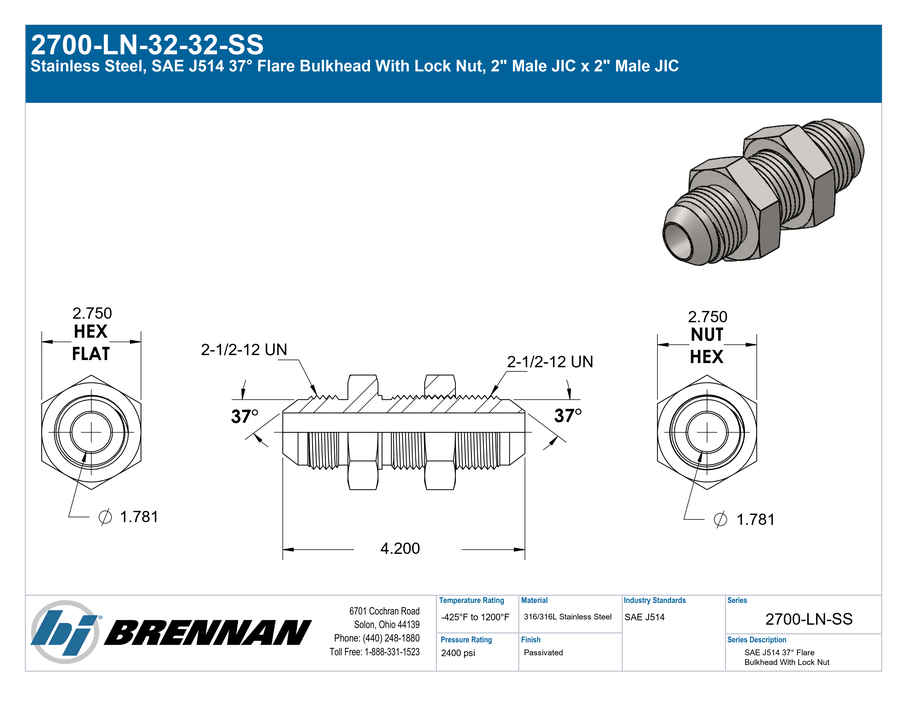

Stainless Steel, SAE J514 37° Flare Bulkhead With Lock Nut, 2″ Male JIC x 2″ Male JIC

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 2" Side 1 Thread Type: 2-1/2-12 UN Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Male JIC Side 2 Tube OD: 2" Side 2 Thread Type: 2-1/2-12 UN Side 2 Standard: SAE J514 – Class 2A Thread Side 2 Role: Line/Tube Connection
Body & Materials	Shape: Straight Shape Type: Bulkhead Primary Material: Stainless Steel Material Grade: 316/316L
Dimensions	Weight: 1.97 lb
Performance Specifications	Working Pressure: 2400 psi Temperature Range: -425°F to 1200°F Burst Pressure: 9600 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 259-2041-32-32 Parker TFD Part Number: 32 WTX-WLN-SS
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Male JIC x Male JIC Bulkhead, With Lock Nut
Technical Series Configuration	SAE J514 Male JIC Tube x Male JIC Tube Bulkhead With Lock Nut
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Male JIC
Shape	Straight
Product Type	Fittings
