2605-32-32-32-SS - Capital Rubber & Gasket: A Singer Industrial Company

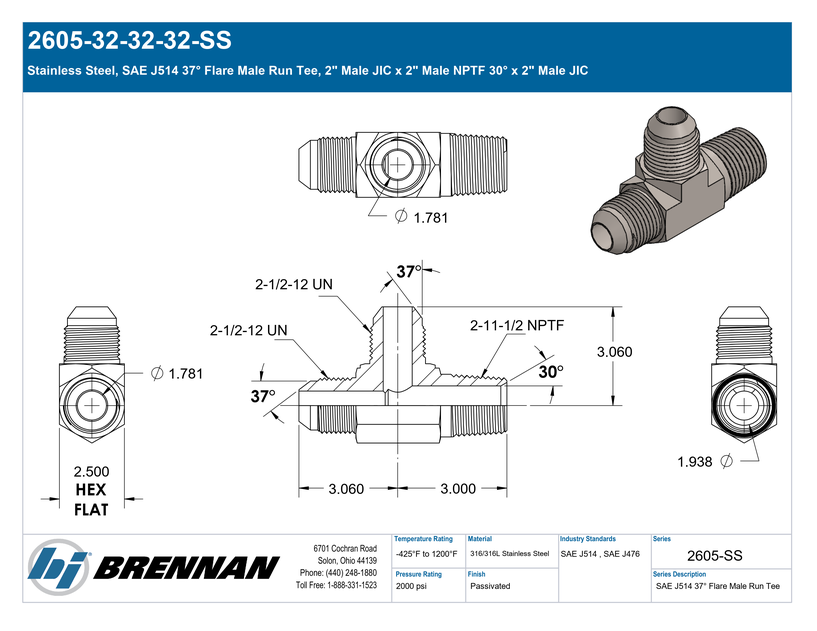

Stainless Steel, SAE J514 37° Flare Male Run Tee, 2″ Male JIC x 2″ Male NPTF 30° x 2″ Male JIC

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 2" Side 1 Thread Type: 2-1/2-12 UN Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Male NPTF 30° Side 2 Pipe Size: 2" Side 2 Thread Type: 2-11-1/2 NPTF Side 2 Standard: SAE J476 Side 2 Role: Line/Pipe Connection Side 3 Connection Type: Male JIC Side 3 Tube OD: 2" Side 3 Thread Type: 2-1/2-12 UN Side 3 Standard: SAE J514 – Class 2A Thread Side 3 Role: Line/Tube Connection
Body & Materials	Shape: Tee Shape Type: Male Run Tee Primary Material: Stainless Steel Material Grade: 316/316L Surface Treatment: Passivated
Dimensions	Hex/Wrench: 2.500 Weight: 4.65 lb
Performance Specifications	Working Pressure: 2000 psi Temperature Range: -425°F to 1200°F Burst Pressure: 8000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 259-2028-32-32 Parker TFD Part Number: 32 RTX-SS SAE J514 Part Number: SAE J514 32-32-32 070424S
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Male JIC x Male Pipe x Male JIC
Technical Series Configuration	SAE J514 Male JIC Tube x SAE J476 Male NPTF x Male JIC Tube Run Tee
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Male NPTF 30°
Shape	Tee
Product Type	Fittings
