2603-10-10-12-FG - Capital Rubber & Gasket: A Singer Industrial Company

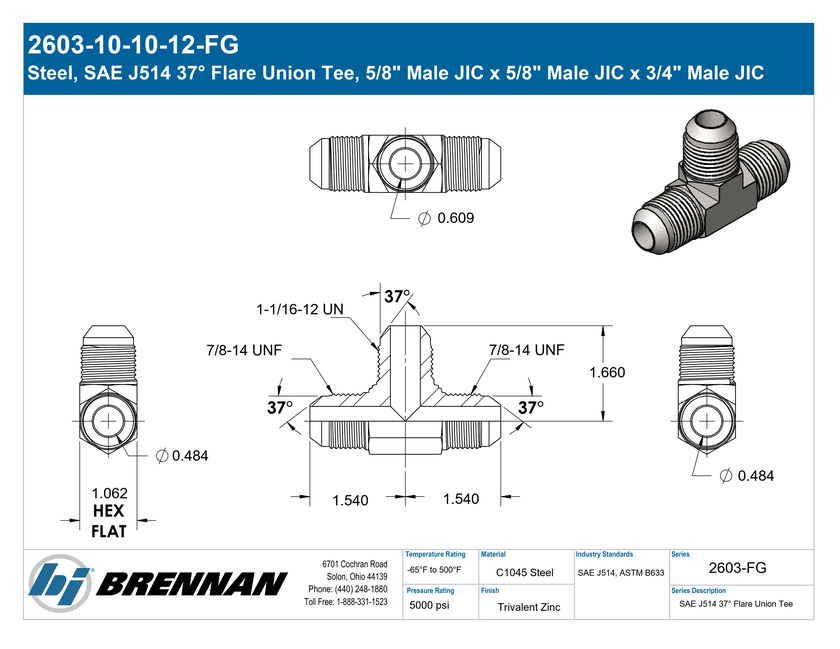

Steel, SAE J514 37° Flare Union Tee, 5/8″ Male JIC x 5/8″ Male JIC x 3/4″ Male JIC

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 5/8" Side 1 Thread Type: 7/8-14 UNF Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Male JIC Side 2 Tube OD: 5/8" Side 2 Thread Type: 7/8-14 UNF Side 2 Standard: SAE J514 – Class 2A Thread Side 2 Role: Line/Tube Connection Side 3 Connection Type: Male JIC Side 3 Tube OD: 3/4" Side 3 Thread Type: 1-1/16-12 UN Side 3 Standard: SAE J514 – Class 2A Thread Side 3 Role: Line/Tube Connection
Body & Materials	Shape: Tee Shape Type: Union Tee Primary Material: Steel Material Grade: C1045 Plating: Trivalent Zinc
Dimensions	Hex/Wrench: 1.062 Weight: 0.57 lb
Performance Specifications	Working Pressure: 5000 psi Temperature Range: -65°F to 500°F Corrosion Resistance: 120 hrs no white rust; 240 hrs no red rust per ASTM B117 Burst Pressure: 20000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 2033-12-10-10S Parker TFD Part Number: 10-10-12 JTX-S SAE J514 Part Number: SAE J514 10-10-12 070401C
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Male JIC x Male JIC x Male JIC
Technical Series Configuration	SAE J514 Male JIC Tube x Male JIC Tube x Male JIC Tube Union Tee
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Male JIC
Shape	Tee
Product Type	Fittings
