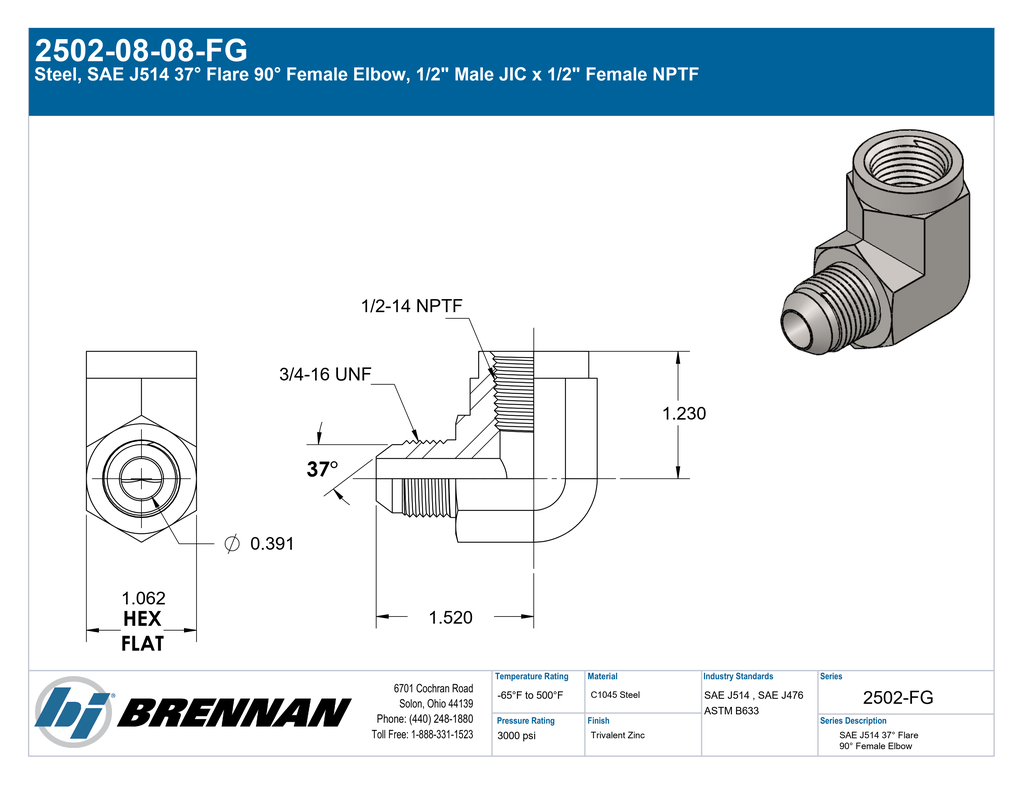

Steel, SAE J514 37° Flare 90° Female Elbow, 1/2″ Male JIC x 1/2″ Female NPTF

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 1/2" Side 1 Thread Type: 3/4-16 UNF Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Female NPTF Side 2 Pipe Size: 1/2" Side 2 Thread Type: 1/2-14 NPTF Side 2 Standard: SAE J476 Side 2 Role: Pipe Connection
Body & Materials	Shape: 90° Elbow Shape Type: Female Elbow Primary Material: Steel Material Grade: C1045 Plating: Trivalent Zinc
Dimensions	Hex/Wrench: 1.062 Weight: 0.42 lb
Performance Specifications	Working Pressure: 3000 psi Temperature Range: -65°F to 500°F Corrosion Resistance: 120 hrs no white rust; 240 hrs no red rust per ASTM B117 Burst Pressure: 12000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 2025-8-8S Parker Hose Part Number: 2203-8-8 Parker TFD Part Number: 8-8 DTX-S SAE J514 Part Number: SAE J514 8-8 070203C
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Male JIC x Female Pipe
Technical Series Configuration	SAE J514 Male JIC Tube x SAE J476 Female NPTF 90° Elbow
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Female NPTF
Shape	90° Elbow
Product Type	Fittings
