2502-06-06-B - Capital Rubber & Gasket: A Singer Industrial Company

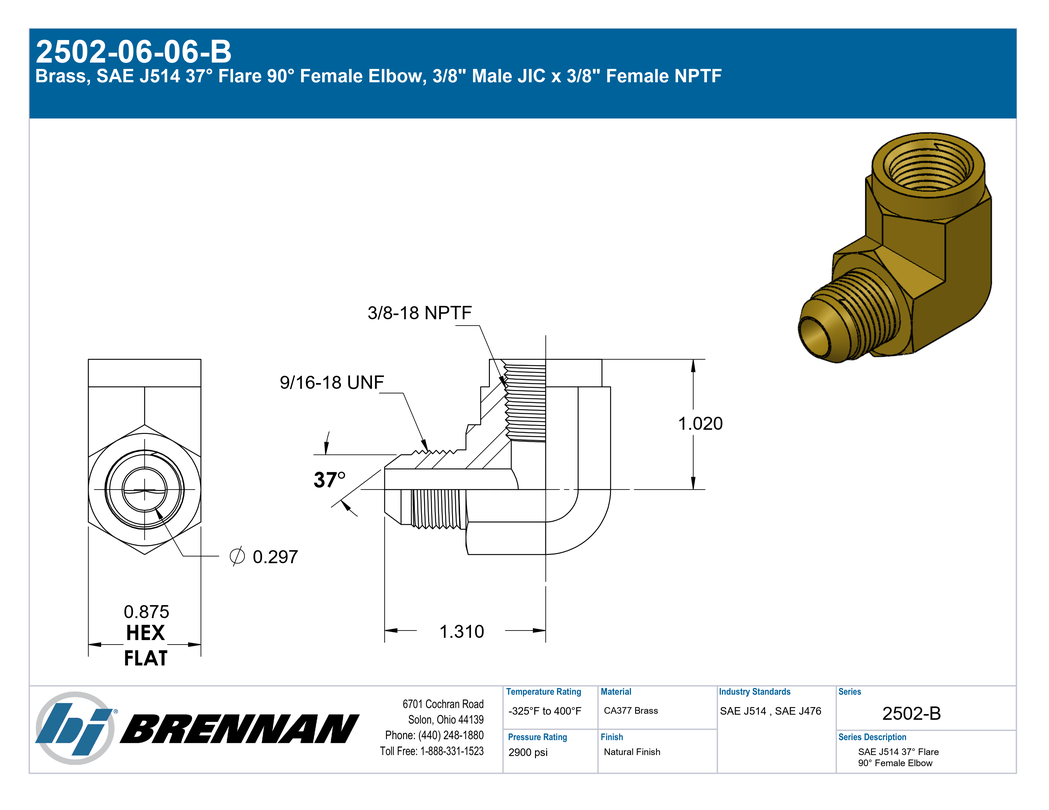

Brass, SAE J514 37° Flare 90° Female Elbow, 3/8″ Male JIC x 3/8″ Female NPTF

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 3/8" Side 1 Thread Type: 9/16-18 UNF Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Female NPTF Side 2 Pipe Size: 3/8" Side 2 Thread Type: 3/8-18 NPTF Side 2 Standard: SAE J476 Side 2 Role: Pipe Connection
Body & Materials	Shape: 90° Elbow Shape Type: Female Elbow Primary Material: Brass Material Grade: CA377 Surface Treatment: Natural Finish
Dimensions	Hex/Wrench: 0.875 Weight: 0.26 lb
Performance Specifications	Working Pressure: 2900 psi Temperature Range: -325°F to 400°F Burst Pressure: 11600 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 2025-6-6B Parker Hose Part Number: 2203-6-6-B Parker TFD Part Number: 6-6 DTX-B SAE J514 Part Number: SAE J514 6-6 070203B
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6c (Lead in copper alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	Male JIC x Female Pipe
Technical Series Configuration	SAE J514 Male JIC Tube x SAE J476 Female NPTF 90° Elbow
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Female NPTF
Shape	90° Elbow
Product Type	Fittings
