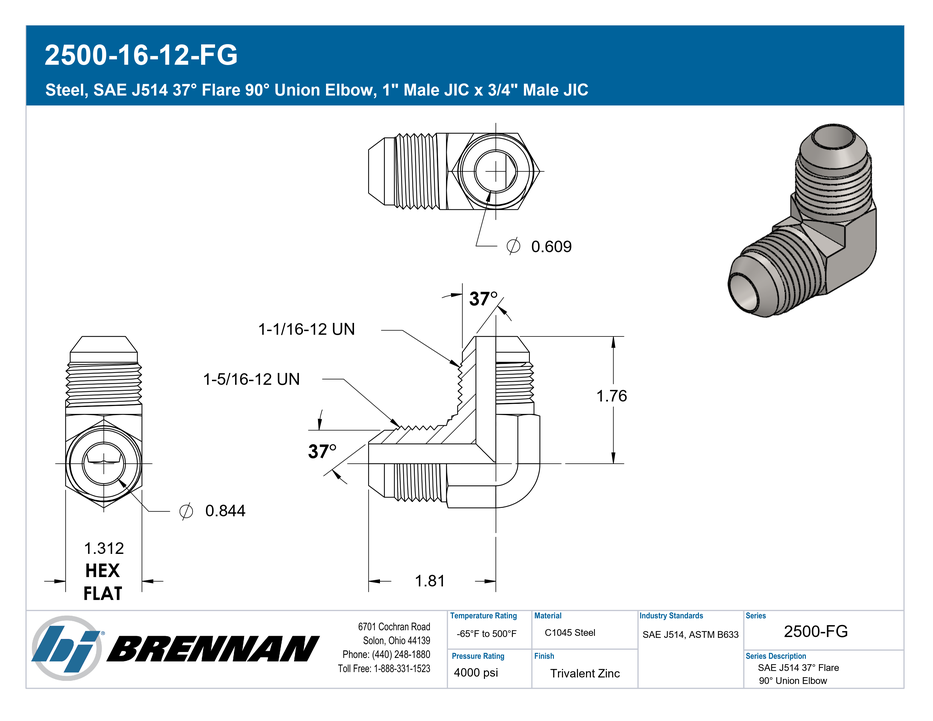

Steel, SAE J514 37° Flare 90° Union Elbow, 1″ Male JIC x 3/4″ Male JIC

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 1" Side 1 Thread Type: 1-5/16-12 UN Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Male JIC Side 2 Tube OD: 3/4" Side 2 Thread Type: 1-1/16-12 UN Side 2 Standard: SAE J514 – Class 2A Thread Side 2 Role: Line/Tube Connection
Body & Materials	Shape: 90° Elbow Shape Type: Union Elbow Primary Material: Steel Material Grade: C1045 Plating: Trivalent Zinc
Dimensions	Weight: 0.74 lb
Performance Specifications	Working Pressure: 4000 psi Temperature Range: -65°F to 500°F Corrosion Resistance: 120 hrs no white rust; 240 hrs no red rust per ASTM B117 Burst Pressure: 16000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 2039-16-12S Parker TFD Part Number: 16-12 ETX-S SAE J514 Part Number: SAE J514 16-12 070201C
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Male JIC x Male JIC
Technical Series Configuration	SAE J514 Male JIC Tube x Male JIC Tube 90° Union Elbow
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Male JIC
Shape	90° Elbow
Product Type	Fittings
