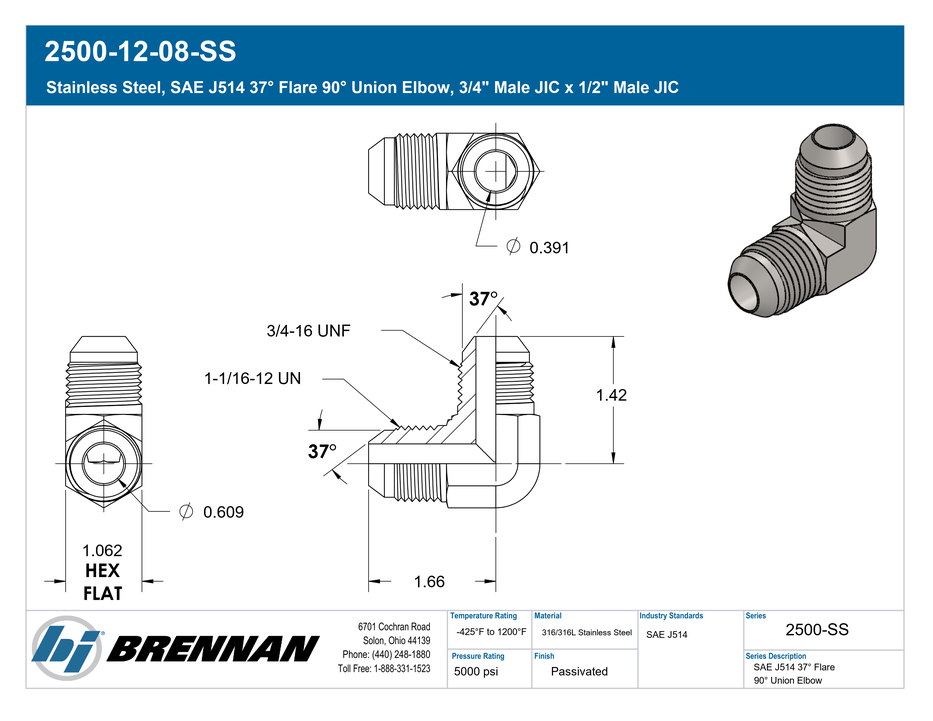

Stainless Steel, SAE J514 37° Flare 90° Union Elbow, 3/4″ Male JIC x 1/2″ Male JIC

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 3/4" Side 1 Thread Type: 1-1/16-12 UN Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Male JIC Side 2 Tube OD: 1/2" Side 2 Thread Type: 3/4-16 UNF Side 2 Standard: SAE J514 – Class 2A Thread Side 2 Role: Line/Tube Connection
Body & Materials	Shape: 90° Elbow Shape Type: Union Elbow Primary Material: Stainless Steel Material Grade: 316/316L
Dimensions	Weight: 0.46 lb
Performance Specifications	Working Pressure: 5000 psi Temperature Range: -425°F to 1200°F Burst Pressure: 20000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 259-2039-12-8 Parker TFD Part Number: 12-8 ETX-SS SAE J514 Part Number: SAE J514 12-8 070201S
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Male JIC x Male JIC
Technical Series Configuration	SAE J514 Male JIC Tube x Male JIC Tube 90° Union Elbow
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Male JIC
Shape	90° Elbow
Product Type	Fittings
