Cap and Plug / 2408-14-SS

2408-14-SS

2408-14-SS
2408-14-SS - Image 2
2408-14-SS - Image 3
2408-14-SS - Image 4
2408-14-SS - Image 5
Product Code: 2408-14-ss Brand:
Options
- +

Description

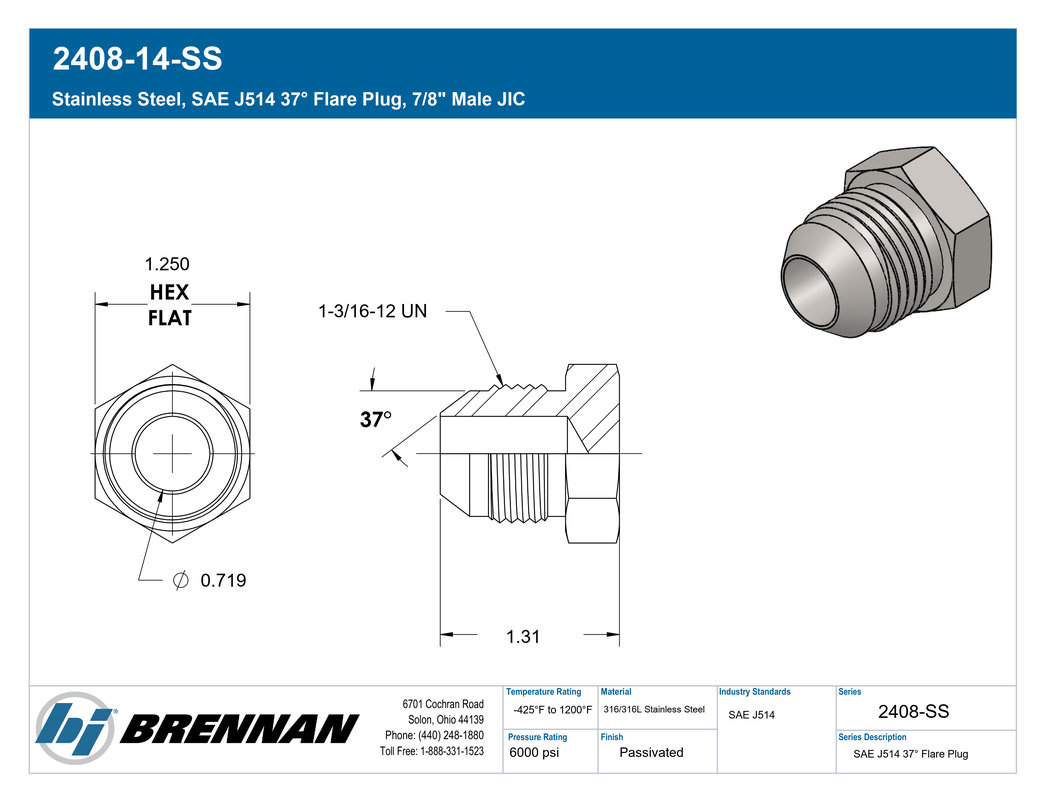

Stainless Steel, SAE J514 37° Flare Plug, 7/8″ Male JIC

Additional information

Connection Details

Connection Type: Male JIC
Tube OD: 7/8"
Thread Type: 1-3/16-12 UN
Standard: SAE J514 – Class 2A Thread
Connection Standard: SAE J514 – Class 2A Thread
Role: Line/Tube Connection
Connection Role: Line/Tube Connection
Body & Materials

Shape: Plug
Shape Type: Plug
Primary Material: Stainless Steel
Material Grade: 316/316L
Dimensions

Weight: 0.28 lb
Performance Specifications

Working Pressure: 6000 psi
Temperature Range: -425°F to 1200°F
Burst Pressure: 24000 psi
Burst Ratio: 4:1
Cross References

Aeroquip Part Number: 259-900599-14
Parker TFD Part Number: 14 PNTX-SS
SAE J514 Part Number: SAE J514 14 070109S
Regulatory & Compliance

RoHS Compliance: Compliant
REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration

Male JIC Plug
Technical Series Configuration

SAE J514 Male JIC Tube Plug
Side 1 Connection Type

Male JIC
Shape

Cap/Plug
Product Type

Fittings
