2408-02 - Capital Rubber & Gasket: A Singer Industrial Company

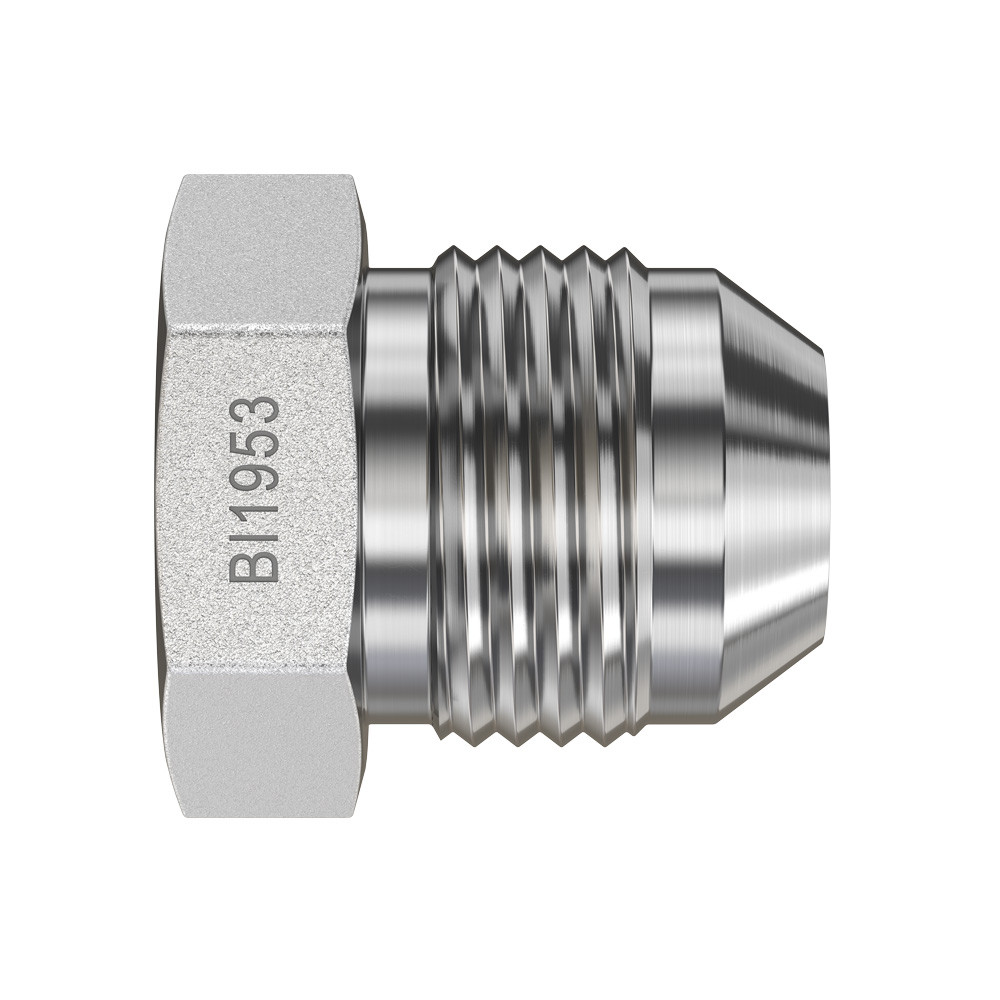

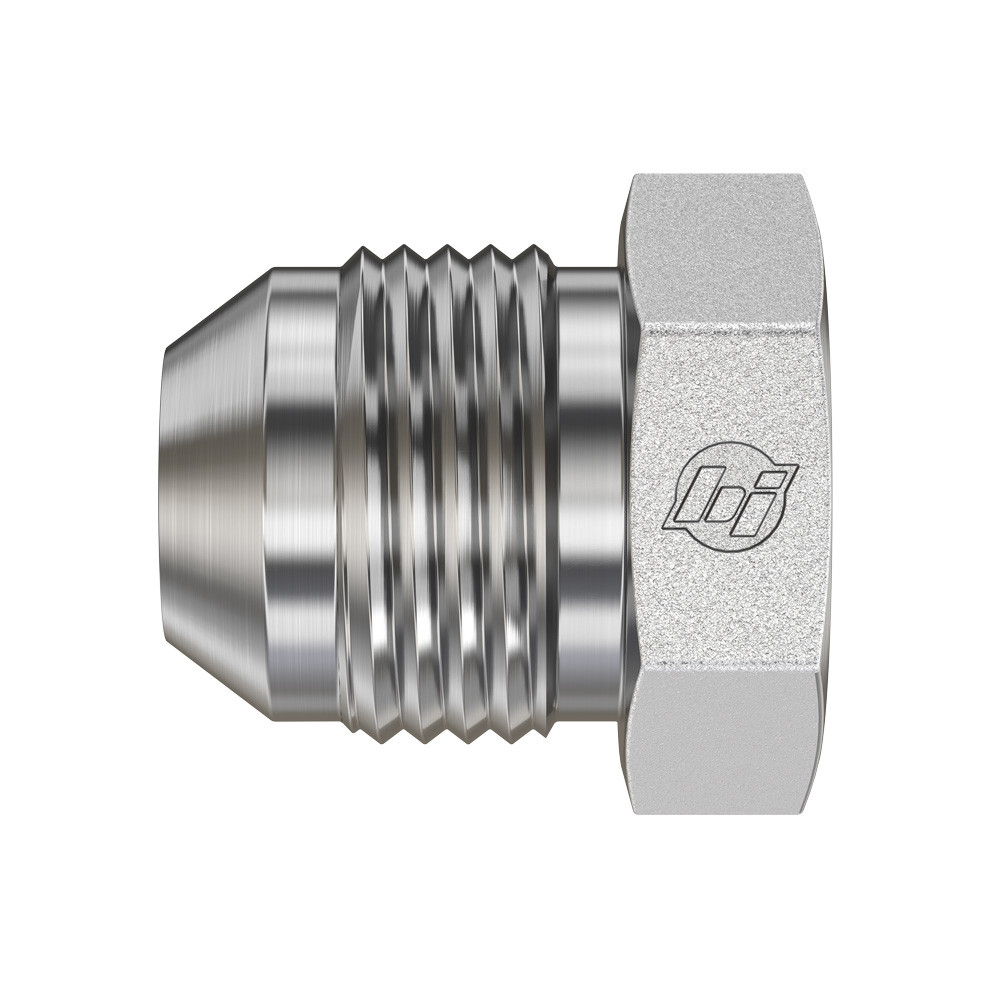

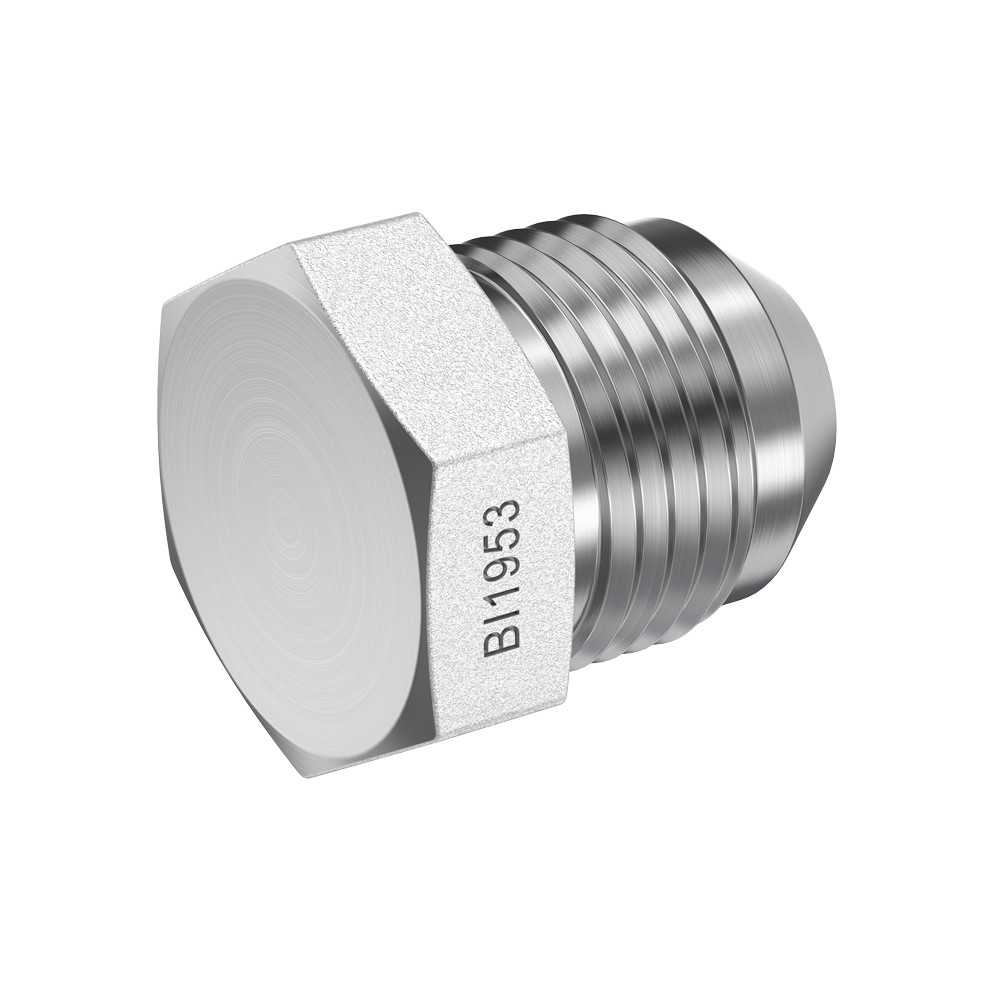

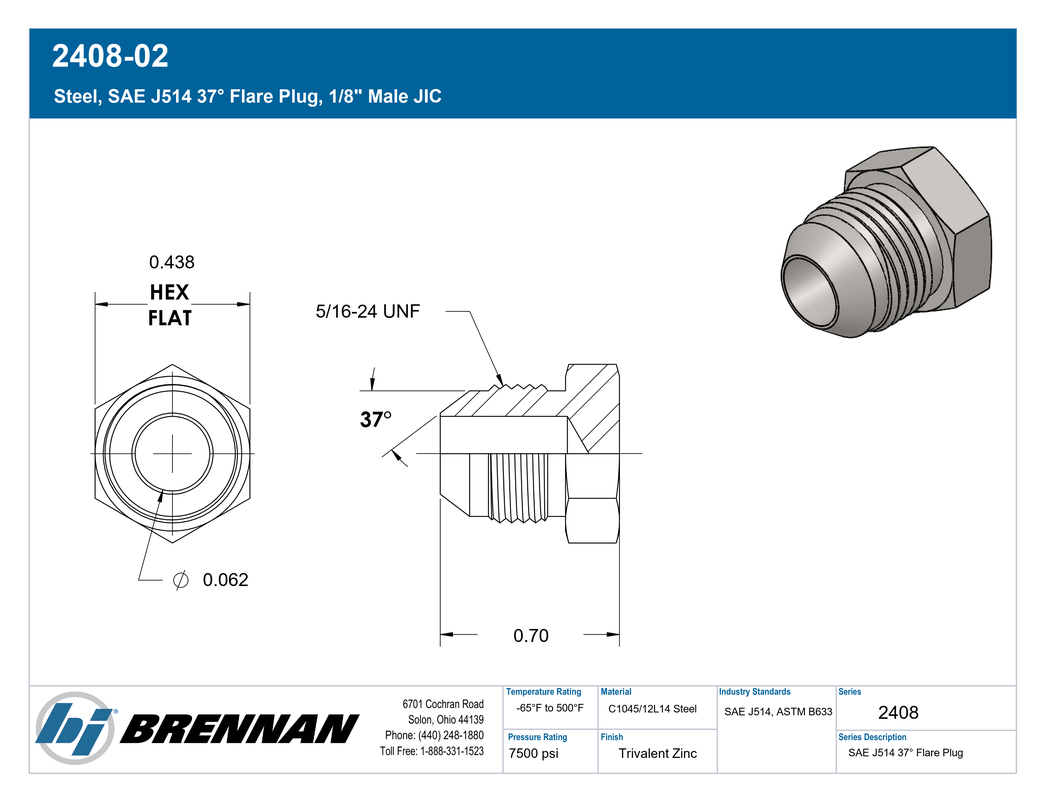

Steel, SAE J514 37° Flare Plug, 1/8″ Male JIC

Connection Details	Connection Type: Male JIC Tube OD: 1/8" Thread Type: 5/16-24 UNF Standard: SAE J514 – Class 2A Thread Connection Standard: SAE J514 – Class 2A Thread Role: Line/Tube Connection Connection Role: Line/Tube Connection
Body & Materials	Shape: Plug Shape Type: Plug Primary Material: Steel Material Grade: 12L14/C1045 Plating: Trivalent Zinc
Dimensions	Weight: 0.02 lb
Performance Specifications	Working Pressure: 7500 psi Temperature Range: -65°F to 500°F Corrosion Resistance: 120 hrs no white rust; 240 hrs no red rust per ASTM B117 Burst Pressure: 30000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 900599-2S Parker Hose Part Number: 03CP-2 Parker TFD Part Number: 2 PNTX-S SAE J514 Part Number: SAE J514 2 070109C
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6a-I (Lead in steel alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	Male JIC Plug
Technical Series Configuration	SAE J514 Male JIC Tube Plug
Side 1 Connection Type	Male JIC
Shape	Cap/Plug
Product Type	Fittings
