2406-32-40-SS - Capital Rubber & Gasket: A Singer Industrial Company

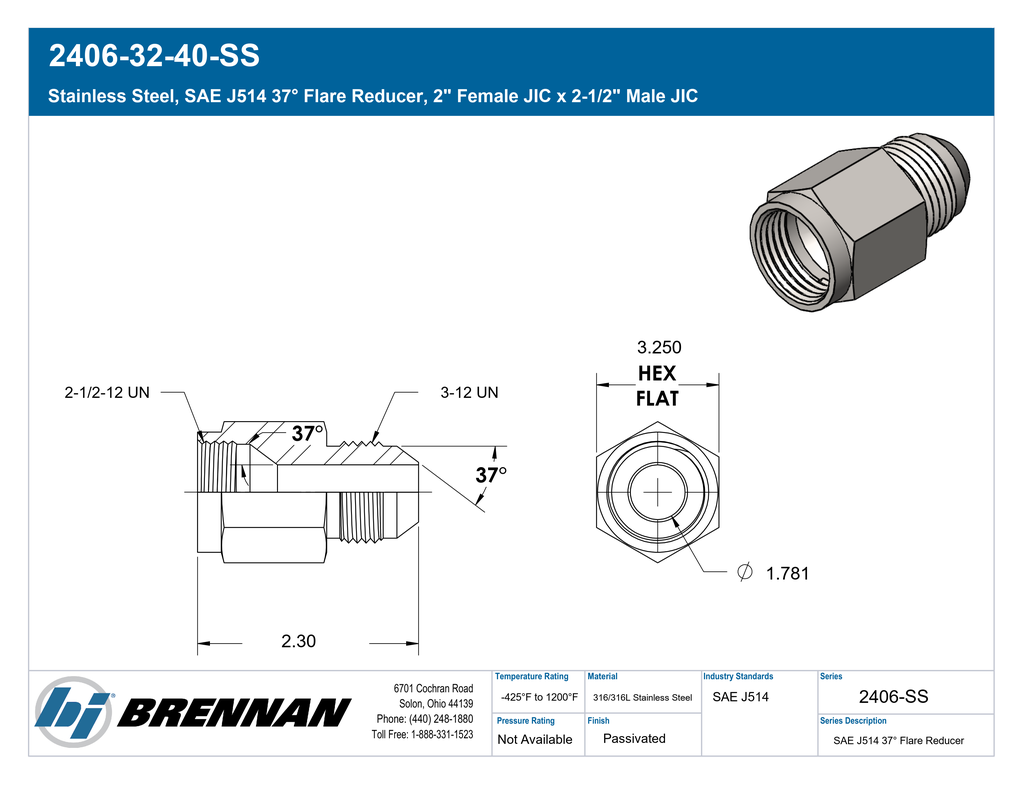

Stainless Steel, SAE J514 37° Flare Reducer, 2″ Female JIC x 2-1/2″ Male JIC

Connection Details	Side 1 Connection Type: Female JIC Side 1 Tube OD: 2" Side 1 Thread Type: 2-1/2-12 UN Side 1 Standard: SAE J514 – Class 2B Thread Side 1 Role: Line Connection Side 2 Connection Type: Male JIC Side 2 Tube OD: 2-1/2" Side 2 Thread Type: 3-12 UN Side 2 Standard: SAE J514 – Class 2A Thread Side 2 Role: Line/Tube Connection
Body & Materials	Shape: Straight Shape Type: Reducer Primary Material: Stainless Steel Material Grade: 316/316L
Dimensions	Weight: 2.32 lb
Performance Specifications	Temperature Range: -425°F to 1200°F
Cross References	Aeroquip Part Number: 259-2215-32-40 Parker TFD Part Number: 32-40 TRTXN-SS
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Female JIC x Male JIC
Technical Series Configuration	SAE J514 Female JIC Tube x SAE J514 Male JIC Tube Reducer
Side 1 Connection Type	Female JIC
Side 2 Connection Type	Male JIC
Shape	Straight
Product Type	Fittings
