2406-12-08-B - Capital Rubber & Gasket: A Singer Industrial Company

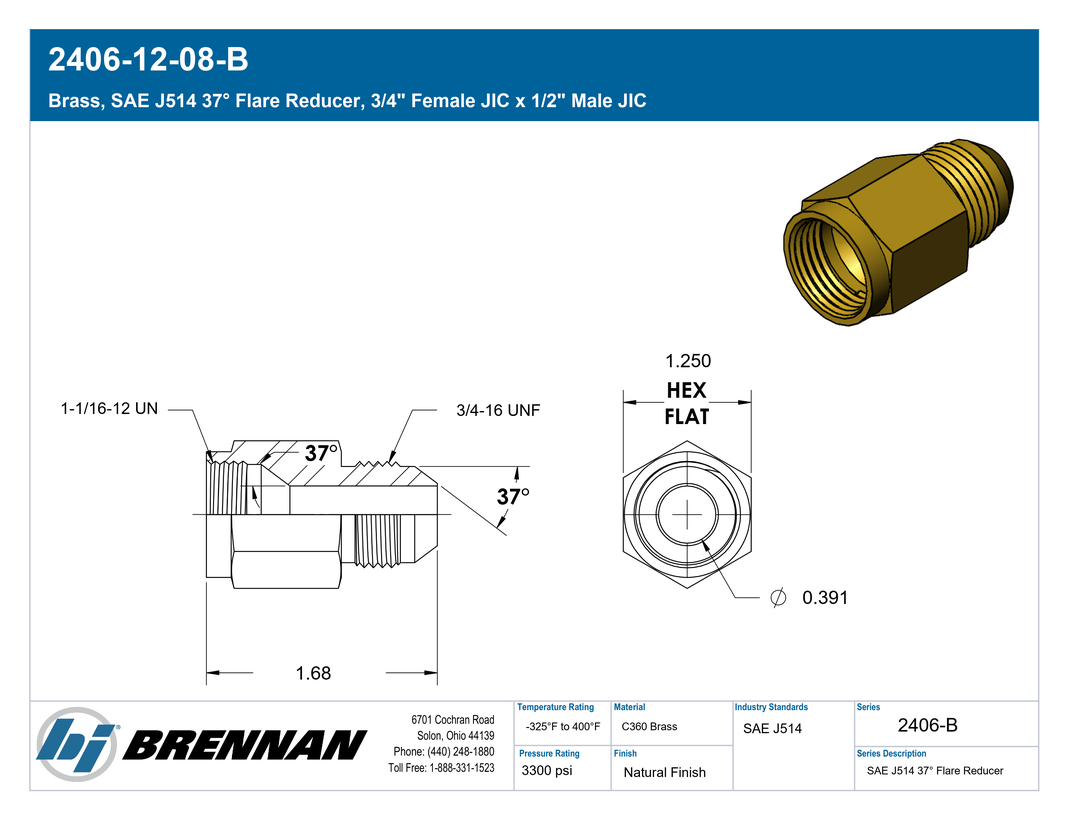

Brass, SAE J514 37° Flare Reducer, 3/4″ Female JIC x 1/2″ Male JIC

Connection Details	Side 1 Connection Type: Female JIC Side 1 Tube OD: 3/4" Side 1 Thread Type: 1-1/16-12 UN Side 1 Standard: SAE J514 – Class 2B Thread Side 1 Role: Line Connection Side 2 Connection Type: Male JIC Side 2 Tube OD: 1/2" Side 2 Thread Type: 3/4-16 UNF Side 2 Standard: SAE J514 – Class 2A Thread Side 2 Role: Line/Tube Connection
Body & Materials	Shape: Straight Shape Type: Reducer Primary Material: Brass Material Grade: C36000 Surface Treatment: Natural Finish
Dimensions	Weight: 0.28 lb
Performance Specifications	Working Pressure: 3300 psi Temperature Range: -325°F to 400°F Burst Pressure: 13200 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 2215-12-8B Parker Hose Part Number: 2603-12-8-B Parker TFD Part Number: 12-8 TRTXN-B
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6c (Lead in copper alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	Female JIC x Male JIC
Technical Series Configuration	SAE J514 Female JIC Tube x SAE J514 Male JIC Tube Reducer
Side 1 Connection Type	Female JIC
Side 2 Connection Type	Male JIC
Shape	Straight
Product Type	Fittings
