2404-20-16-SS - Capital Rubber & Gasket: A Singer Industrial Company

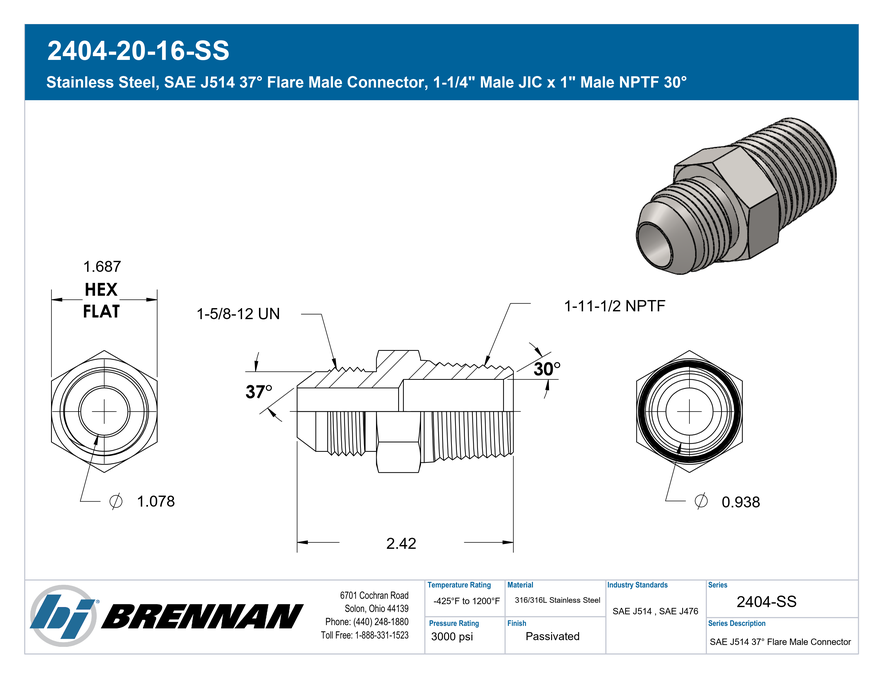

Stainless Steel, SAE J514 37° Flare Male Connector, 1-1/4″ Male JIC x 1″ Male NPTF 30°

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 1-1/4" Side 1 Thread Type: 1-5/8-12 UN Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Male NPTF 30° Side 2 Pipe Size: 1" Side 2 Thread Type: 1-11-1/2 NPTF Side 2 Standard: SAE J476 Side 2 Role: Line/Pipe Connection
Body & Materials	Shape: Straight Shape Type: Connector Primary Material: Stainless Steel Material Grade: 316/316L Surface Treatment: Passivated
Dimensions	Hex/Wrench: 1.687 Weight: 0.62 lb
Performance Specifications	Working Pressure: 3000 psi Temperature Range: -425°F to 1200°F Burst Pressure: 12000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 259-2021-16-20 Parker Hose Part Number: 0103-16-20-SS Parker TFD Part Number: 20-16 FTX-SS SAE J514 Part Number: SAE J514 20-16 070102S
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Male JIC x Male Pipe
Technical Series Configuration	SAE J514 Male JIC Tube x SAE J476 Male NPTF Connector
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Male NPTF 30°
Shape	Straight
Product Type	Fittings
