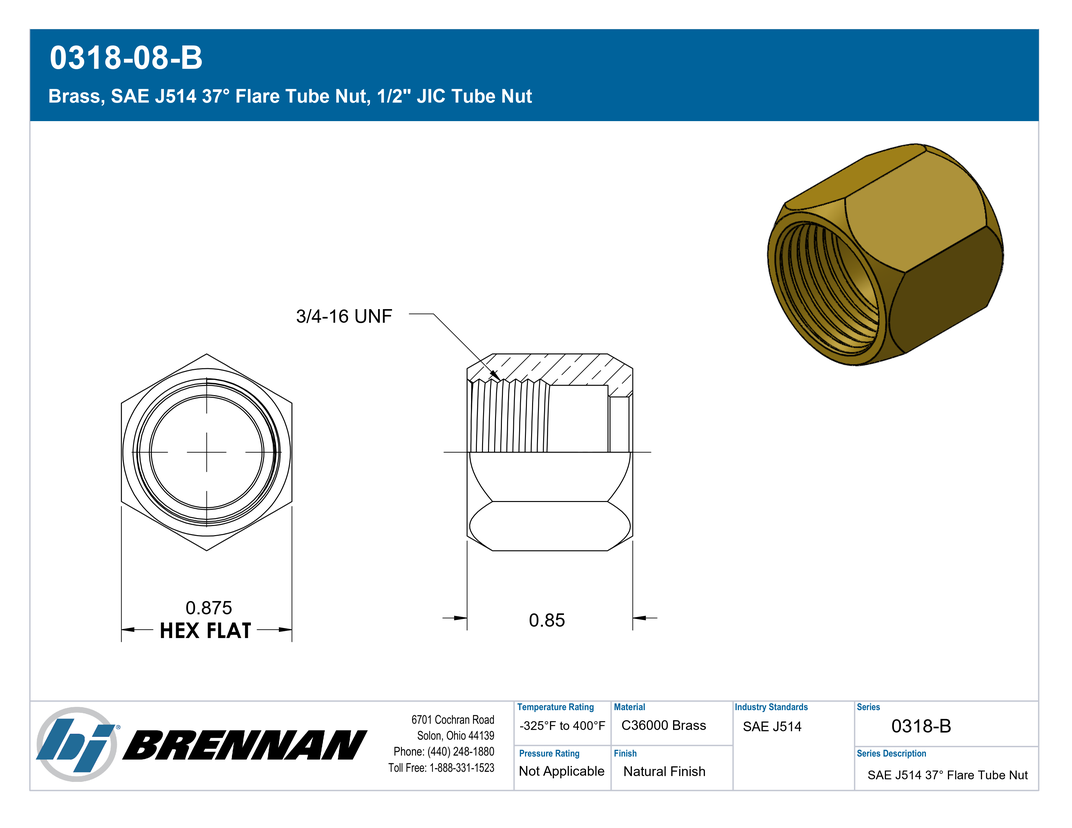

Brass, SAE J514 37° Flare Tube Nut, 1/2″ JIC Tube Nut

Connection Details	Connection Type: JIC Tube Nut Tube OD: 1/2" Thread Type: 3/4-16 UNF Standard: SAE J514 Connection Standard: SAE J514 Role: Line/Tube Connection Connection Role: Line/Tube Connection
Body & Materials	Shape: Nut Shape Type: Tube Nut Primary Material: Brass Material Grade: C36000 Surface Treatment: Natural Finish
Dimensions	Weight: 0.08 lb
Performance Specifications	Temperature Range: -325°F to 400°F
Cross References	Aeroquip Part Number: 1290-8B Parker Hose Part Number: 06B-8B Parker TFD Part Number: 8 BTX-B SAE J514 Part Number: SAE J514 8 070110B
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6c (Lead in copper alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	JIC Tube Nut
Technical Series Configuration	SAE J514 Female UN/UNF Tube Nut
Side 1 Connection Type	JIC Tube Nut
Shape	Nut/Sleeve
Product Type	Fittings
