Nuts, Sleeves, Locknuts / 0306-16-SS

0306-16-SS

0306-16-SS
0306-16-SS - Image 2
0306-16-SS - Image 3
0306-16-SS - Image 4
0306-16-SS - Image 5
Product Code: 0306-16-ss Brand:
Options
- +

Description

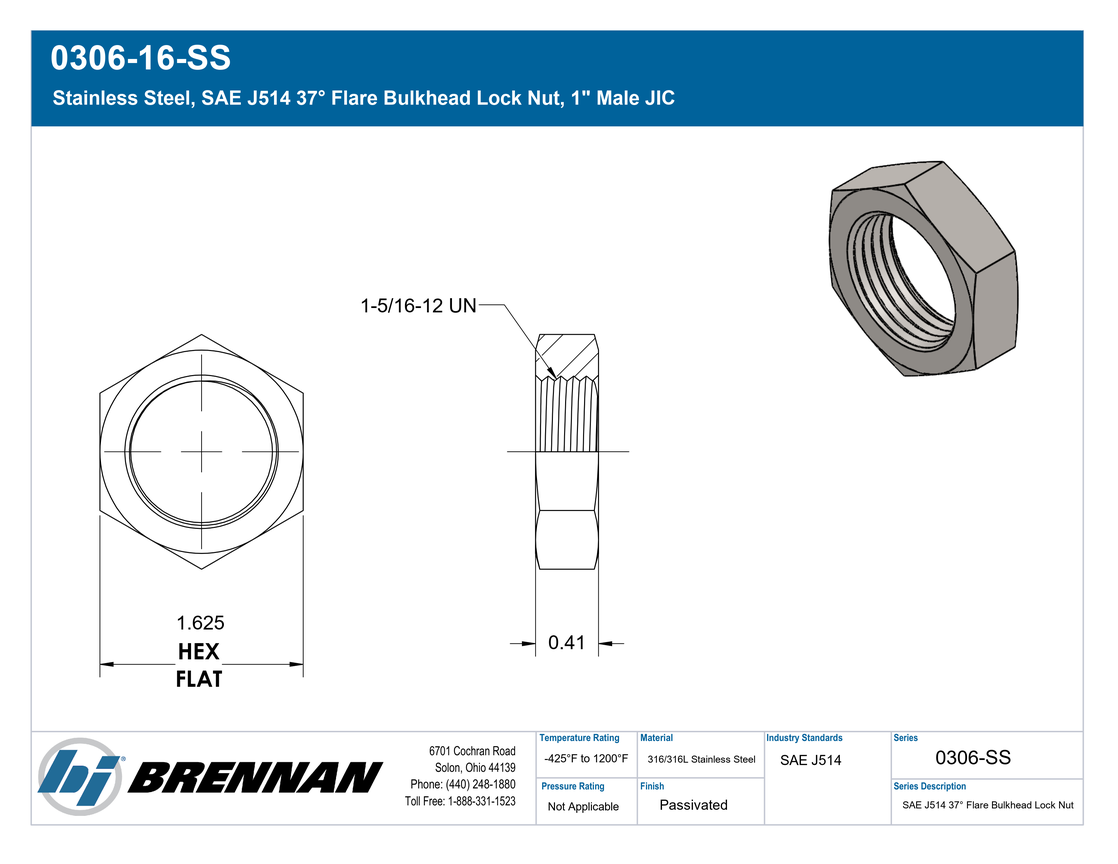

Stainless Steel, SAE J514 37° Flare Bulkhead Lock Nut, 1″ Male JIC

Additional information

Connection Details

Connection Type: JIC Locknut
Tube OD: 1"
Thread Type: 1-5/16-12 UN
Standard: SAE J514
Connection Standard: SAE J514
Role: Line Connection
Connection Role: Line Connection
Body & Materials

Shape: Nut
Shape Type: Lock Nut
Primary Material: Stainless Steel
Material Grade: 316/316L
Dimensions

Weight: 0.12 lb
Performance Specifications

Temperature Range: -425°F to 1200°F
Cross References

Aeroquip Part Number: 259-210212-16
Parker TFD Part Number: 16 WLN-SS
SAE J514 Part Number: SAE J514 16 070118S
Regulatory & Compliance

RoHS Compliance: Compliant
REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration

JIC Bulkhead Lock Nut
Technical Series Configuration

SAE J514 Female UN/UNF Bulkhead Lock Nut
Side 1 Connection Type

JIC Locknut
Shape

Nut/Sleeve
Product Type

Fittings
