0306-04-B - Capital Rubber & Gasket: A Singer Industrial Company

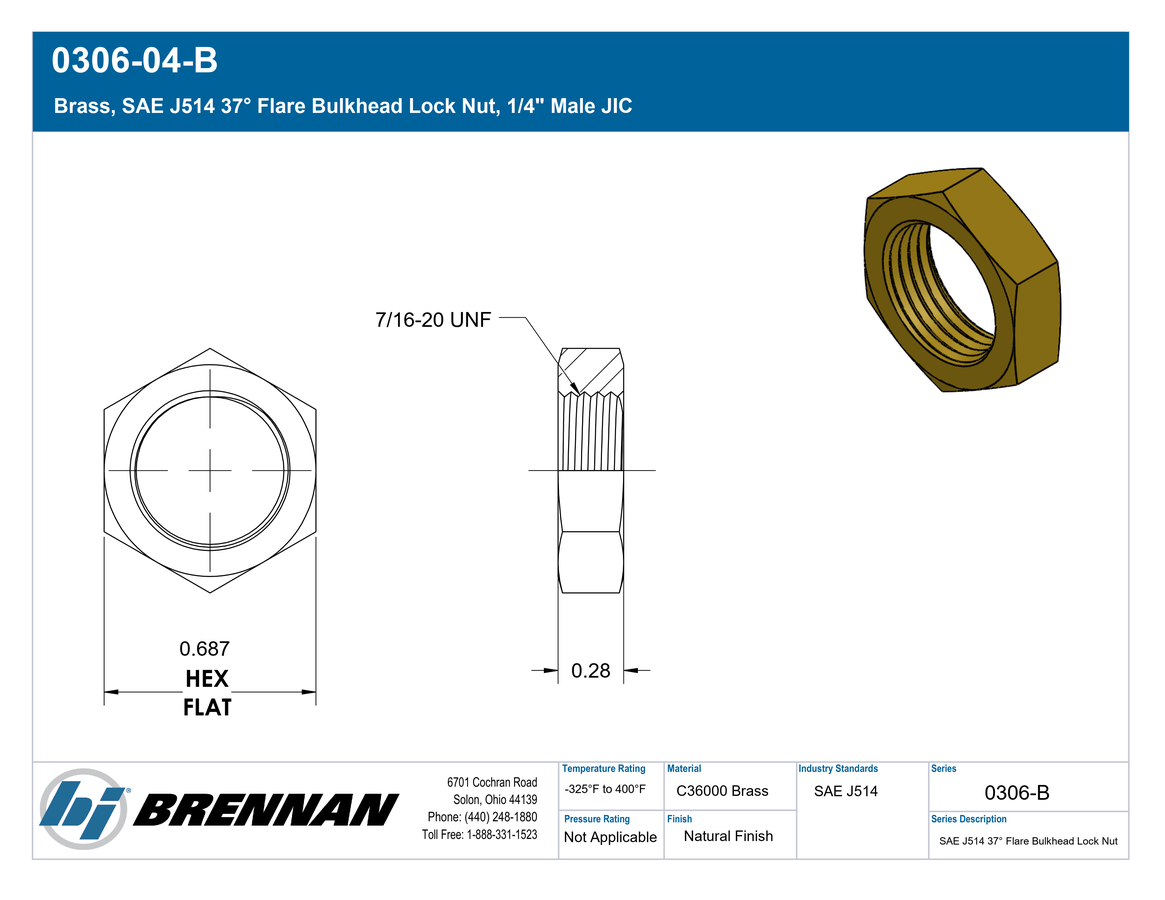

Brass, SAE J514 37° Flare Bulkhead Lock Nut, 1/4″ Male JIC

Connection Details	Connection Type: JIC Locknut Tube OD: 1/4" Thread Type: 7/16-20 UNF Standard: SAE J514 Connection Standard: SAE J514 Role: Line Connection Connection Role: Line Connection
Body & Materials	Shape: Nut Shape Type: Lock Nut Primary Material: Brass Material Grade: C36000 Surface Treatment: Natural Finish
Dimensions	Weight: 0.02 lb
Performance Specifications	Temperature Range: -325°F to 400°F
Cross References	Aeroquip Part Number: 210212-4B Parker Hose Part Number: 53-4N-B Parker TFD Part Number: 4 WLN-B SAE J514 Part Number: SAE J514 4 070118B
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6c (Lead in copper alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	JIC Bulkhead Lock Nut
Technical Series Configuration	SAE J514 Female UN/UNF Bulkhead Lock Nut
Side 1 Connection Type	JIC Locknut
Shape	Nut/Sleeve
Product Type	Fittings
