Cap and Plug / 0304-C-10-SS

0304-C-10-SS

0304-C-10-SS
0304-C-10-SS - Image 2
0304-C-10-SS - Image 3
0304-C-10-SS - Image 4
0304-C-10-SS - Image 5
Product Code: 0304-c-10-ss Brand:
Options
- +

Description

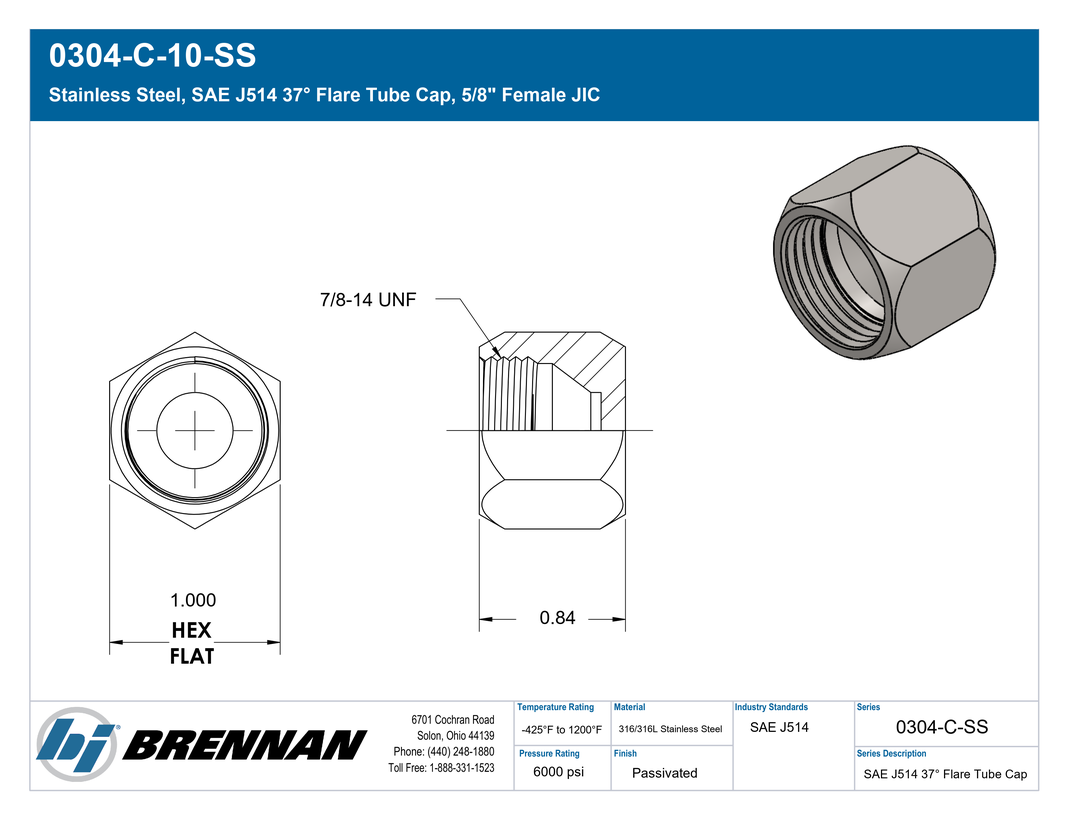

Stainless Steel, SAE J514 37° Flare Tube Cap, 5/8″ Female JIC

Additional information

Connection Details

Connection Type: Female JIC
Tube OD: 5/8"
Thread Type: 7/8-14 UNF
Standard: SAE J514
Connection Standard: SAE J514
Role: Line Connection
Connection Role: Line Connection
Body & Materials

Shape: Cap
Shape Type: Cap
Primary Material: Stainless Steel
Material Grade: 316/316L
Dimensions

Weight: 0.12 lb
Performance Specifications

Working Pressure: 6000 psi
Temperature Range: -425°F to 1200°F
Burst Pressure: 24000 psi
Burst Ratio: 4:1
Cross References

Aeroquip Part Number: 259-210292-10
Parker TFD Part Number: 10 FNTX-SS
SAE J514 Part Number: SAE J514 10 070112S
Regulatory & Compliance

RoHS Compliance: Compliant
REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration

JIC Cap
Technical Series Configuration

SAE J514 Female JIC Tube Cap
Side 1 Connection Type

Female JIC
Shape

Cap/Plug
Product Type

Fittings

Documents
