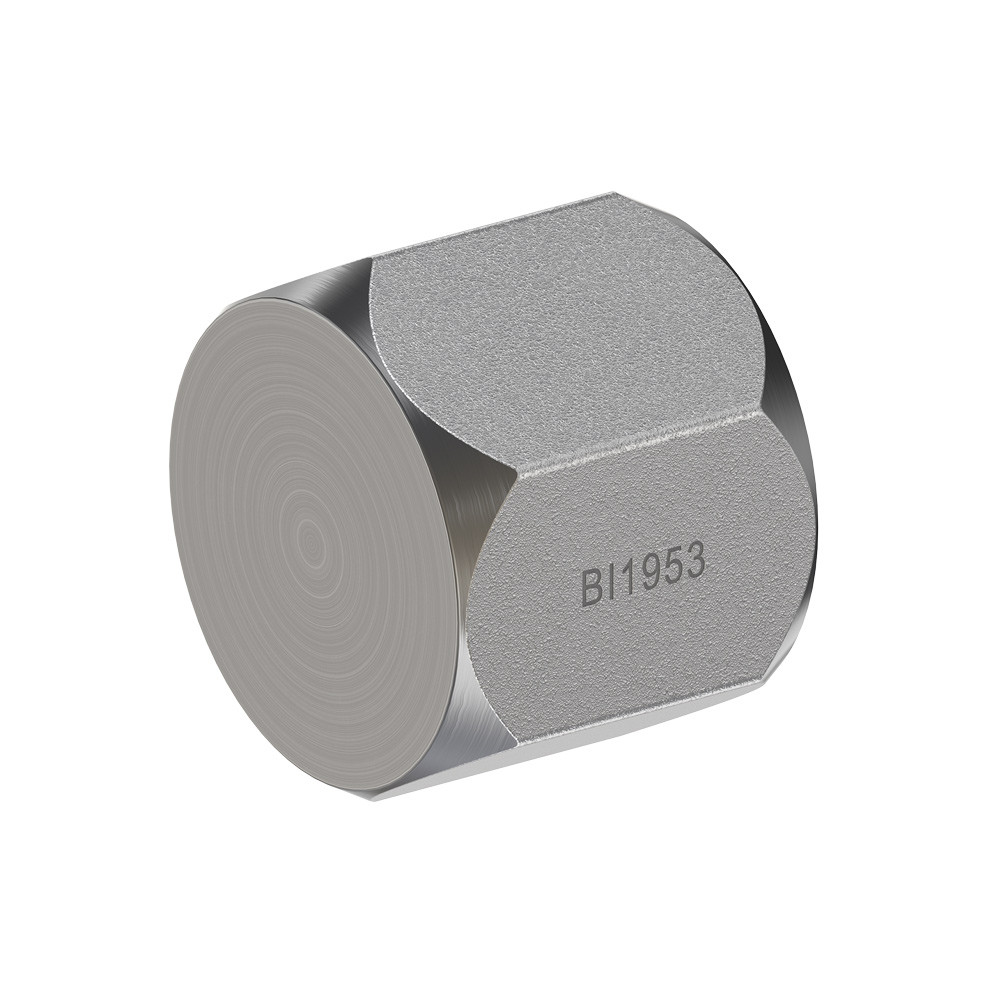

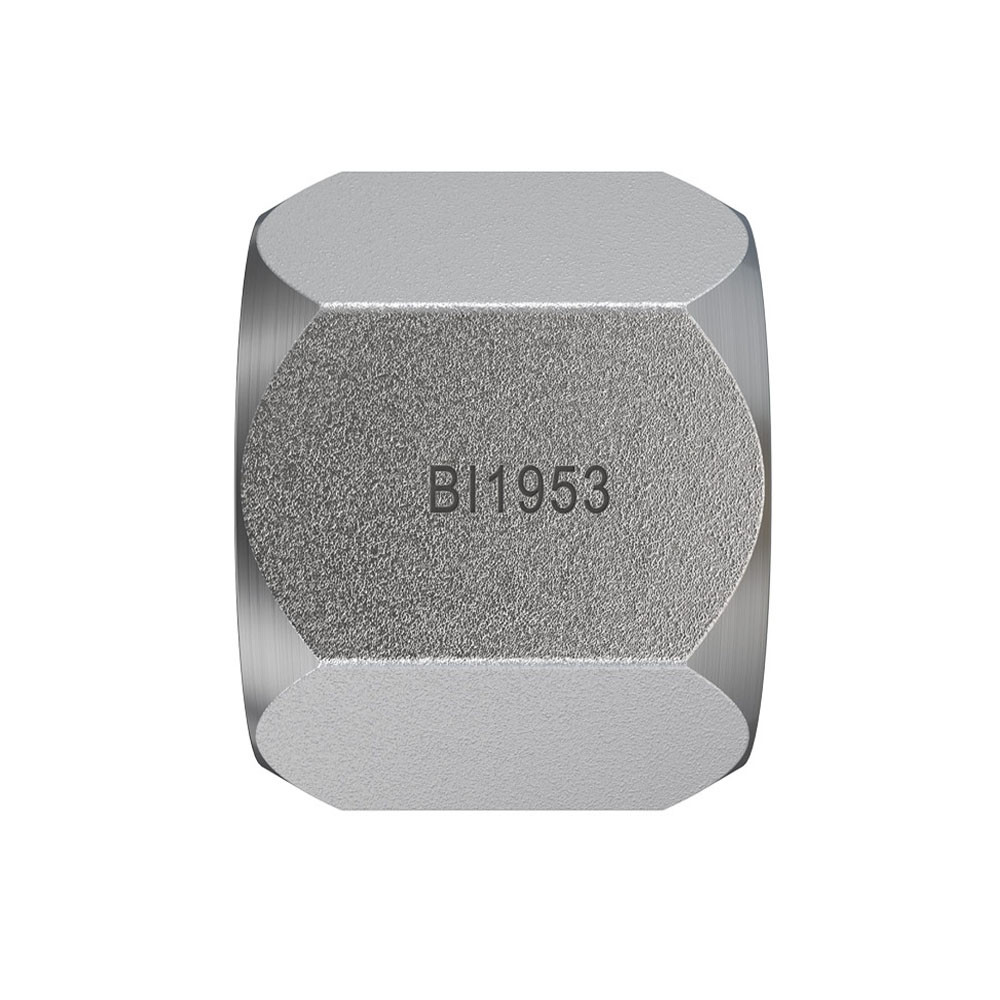

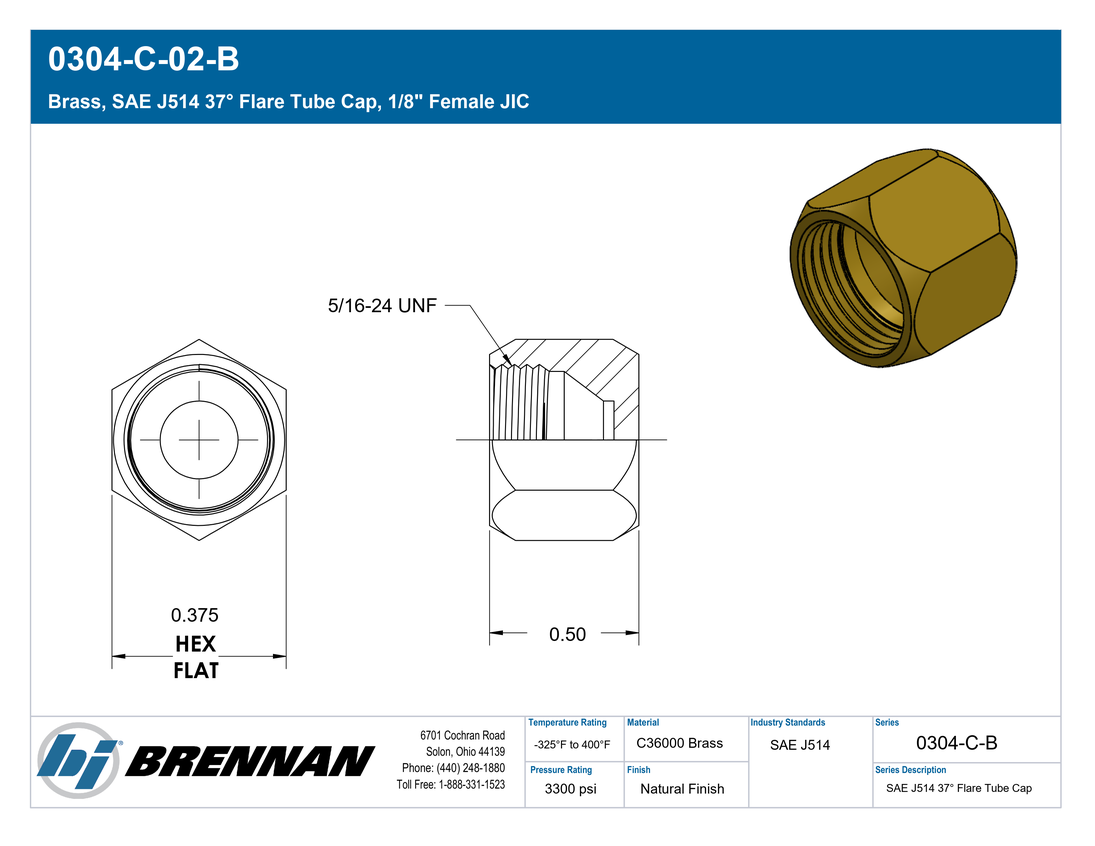

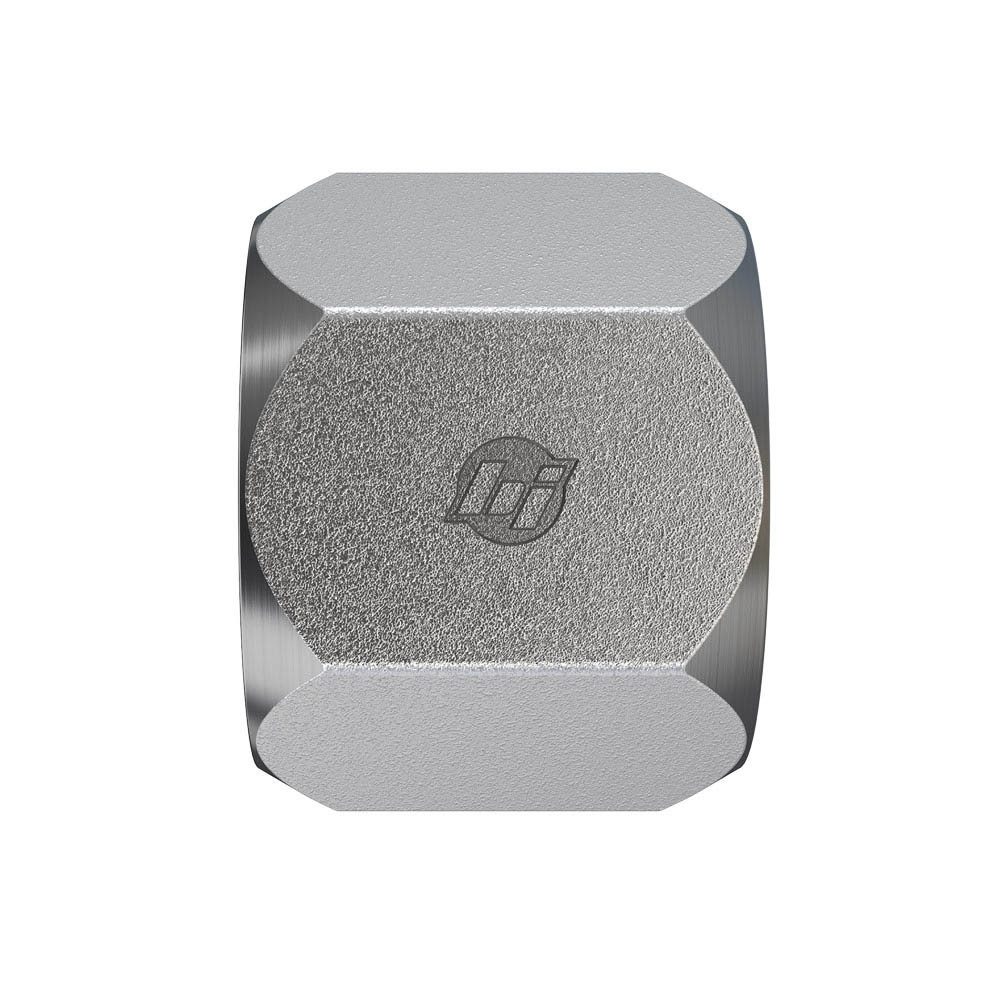

Brass, SAE J514 37° Flare Tube Cap, 1/8″ Female JIC

Connection Details	Connection Type: Female JIC Tube OD: 1/8" Thread Type: 5/16-24 UNF Standard: SAE J514 Connection Standard: SAE J514 Role: Line Connection Connection Role: Line Connection
Body & Materials	Shape: Cap Shape Type: Cap Primary Material: Brass Material Grade: C36000 Surface Treatment: Natural Finish
Dimensions	Weight: 0.03 lb
Performance Specifications	Working Pressure: 3300 psi Temperature Range: -325°F to 400°F Burst Pressure: 13200 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 210292-2B Parker Hose Part Number: 06CP-2B Parker TFD Part Number: 2 FNTX-B SAE J514 Part Number: SAE J514 2 070112B
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6c (Lead in copper alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	JIC Cap
Technical Series Configuration	SAE J514 Female JIC Tube Cap
Side 1 Connection Type	Female JIC
Shape	Cap/Plug
Product Type	Fittings
