0304-08 - Capital Rubber & Gasket: A Singer Industrial Company

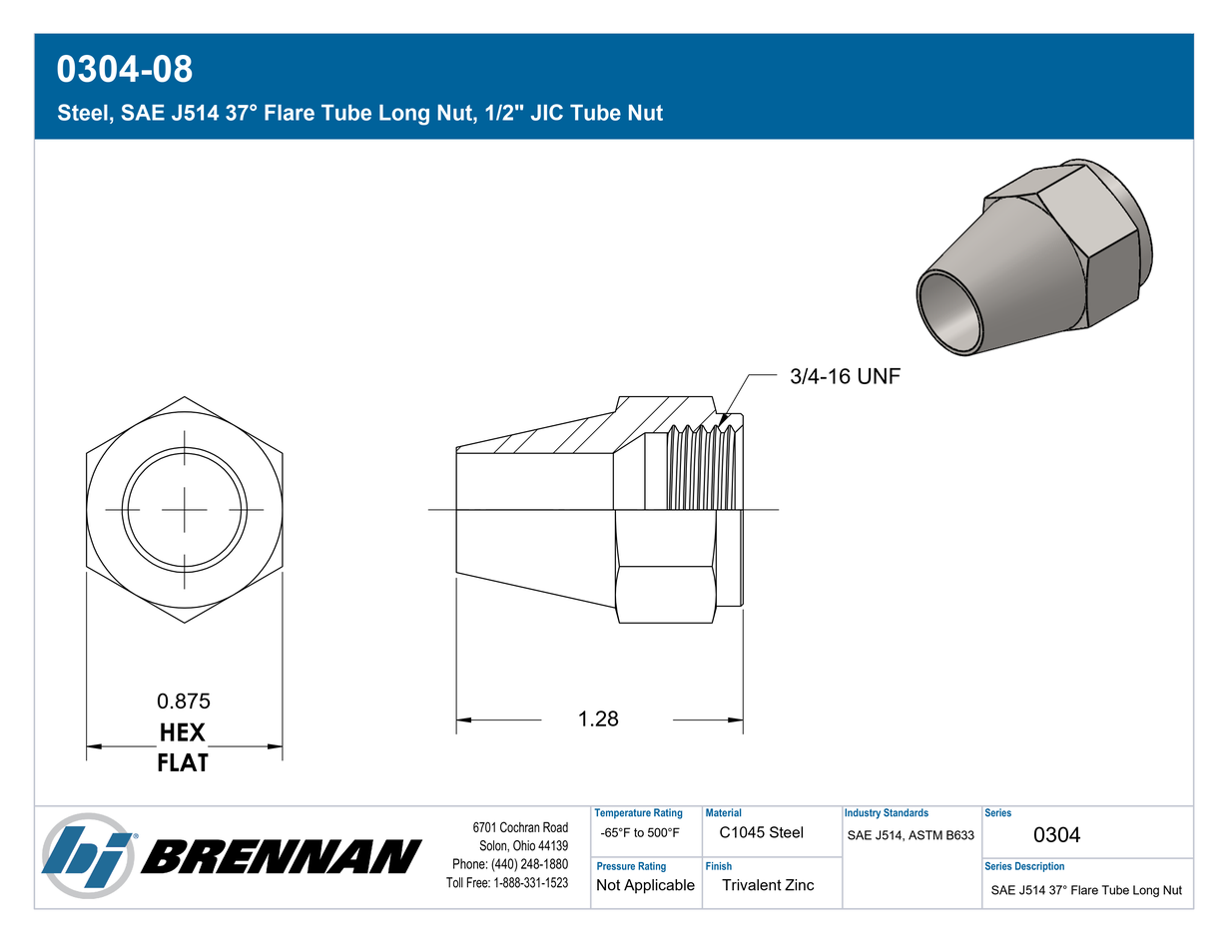

Steel, SAE J514 37° Flare Tube Long Nut, 1/2″ JIC Tube Nut

Connection Details	Connection Type: JIC Tube Nut Tube OD: 1/2" Thread Type: 3/4-16 UNF Standard: SAE J514 Connection Standard: SAE J514 Role: Line/Tube Connection Connection Role: Line/Tube Connection
Body & Materials	Shape: Nut Shape Type: Long Nut Primary Material: Steel Material Grade: 12L14/C1045 Plating: Trivalent Zinc
Dimensions	Weight: 0.09 lb
Performance Specifications	Temperature Range: -65°F to 500°F Corrosion Resistance: 120 hrs no white rust; 240 hrs no red rust per ASTM B117
Cross References	Aeroquip Part Number: 221000-8S SAE J514 Part Number: SAE J514 8 070111C
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6a-I (Lead in steel alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	JIC Long Nut
Technical Series Configuration	SAE J514 Female JIC Tube Long Nut
Side 1 Connection Type	JIC Tube Nut
Shape	Nut/Sleeve
Product Type	Fittings
