0304-06
Options
Description

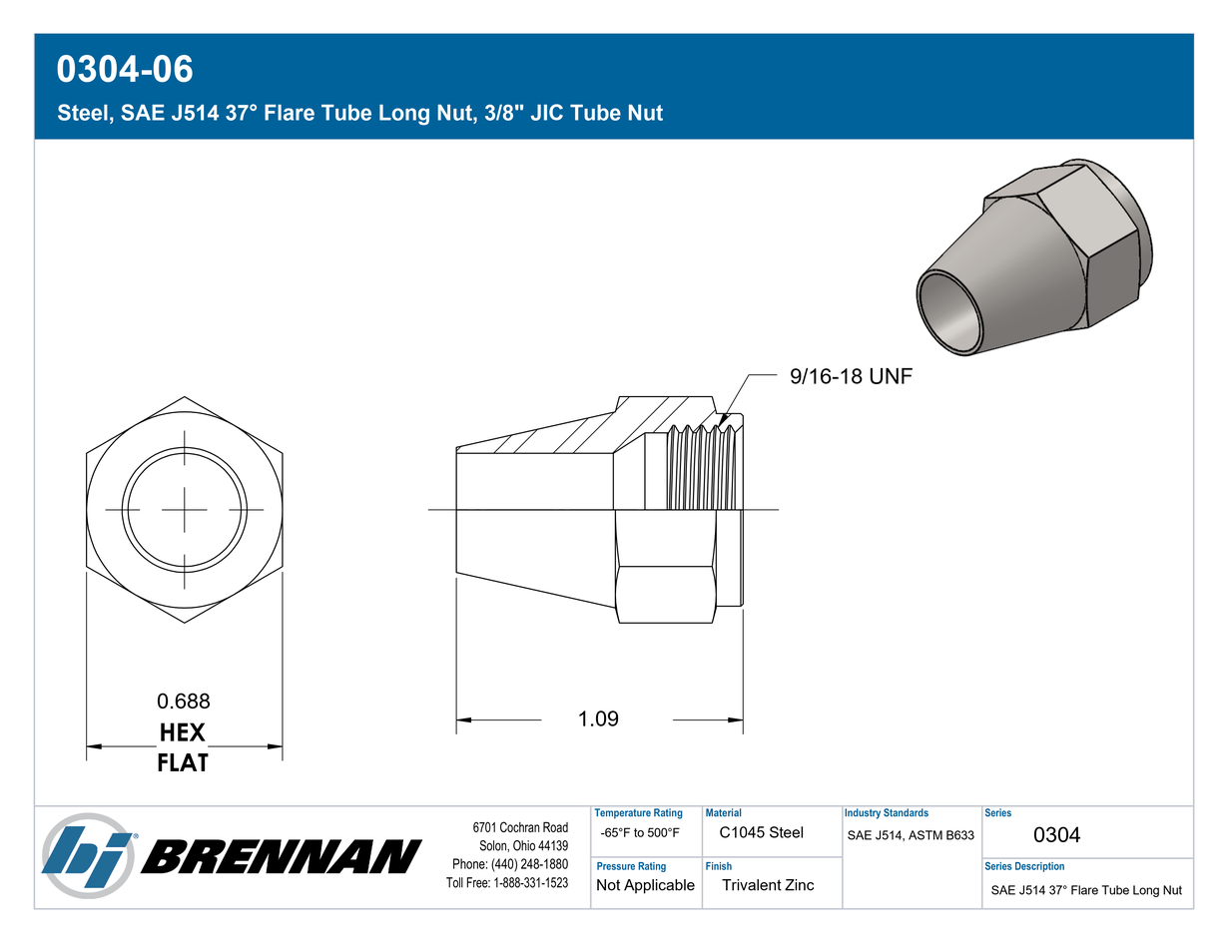

Steel, SAE J514 37° Flare Tube Long Nut, 3/8″ JIC Tube Nut
Additional information
| Connection Details | Connection Type: JIC Tube Nut |
|---|---|
| Body & Materials | Shape: Nut |
| Dimensions | Weight: 0.05 lb |
| Performance Specifications | Temperature Range: -65°F to 500°F |
| Cross References | Aeroquip Part Number: 221000-6S |
| Regulatory & Compliance | RoHS Compliance: Compliant by Exemption 6a-I (Lead in steel alloy) |
| Series Configuration | JIC Long Nut |
| Technical Series Configuration | SAE J514 Female JIC Tube Long Nut |
| Side 1 Connection Type | JIC Tube Nut |
| Shape | Nut/Sleeve |
| Product Type | Fittings |
