0304-06-B - Capital Rubber & Gasket: A Singer Industrial Company

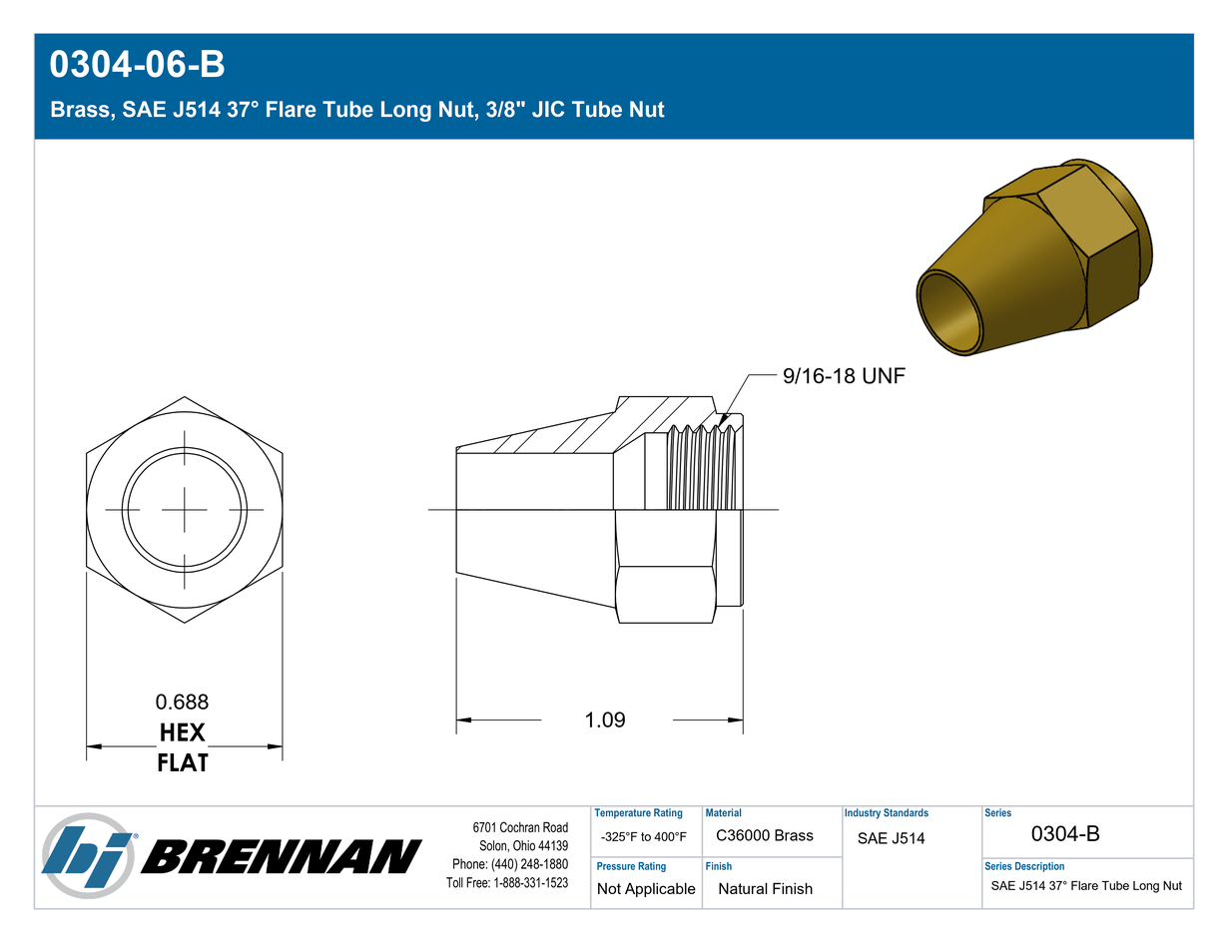

Brass, SAE J514 37° Flare Tube Long Nut, 3/8″ JIC Tube Nut

Connection Details	Connection Type: JIC Tube Nut Tube OD: 3/8" Thread Type: 9/16-18 UNF Standard: SAE J514 Connection Standard: SAE J514 Role: Line/Tube Connection Connection Role: Line/Tube Connection
Body & Materials	Shape: Nut Shape Type: Long Nut Primary Material: Brass Material Grade: C36000 Surface Treatment: Natural Finish
Dimensions	Weight: 0.05 lb
Performance Specifications	Temperature Range: -325°F to 400°F
Cross References	Aeroquip Part Number: 221000-6B SAE J514 Part Number: SAE J514 6 070111B
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6c (Lead in copper alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	JIC Long Nut
Technical Series Configuration	SAE J514 Female JIC Tube Long Nut
Side 1 Connection Type	JIC Tube Nut
Shape	Nut/Sleeve
Product Type	Fittings
