0304-04-SS
Options
Description

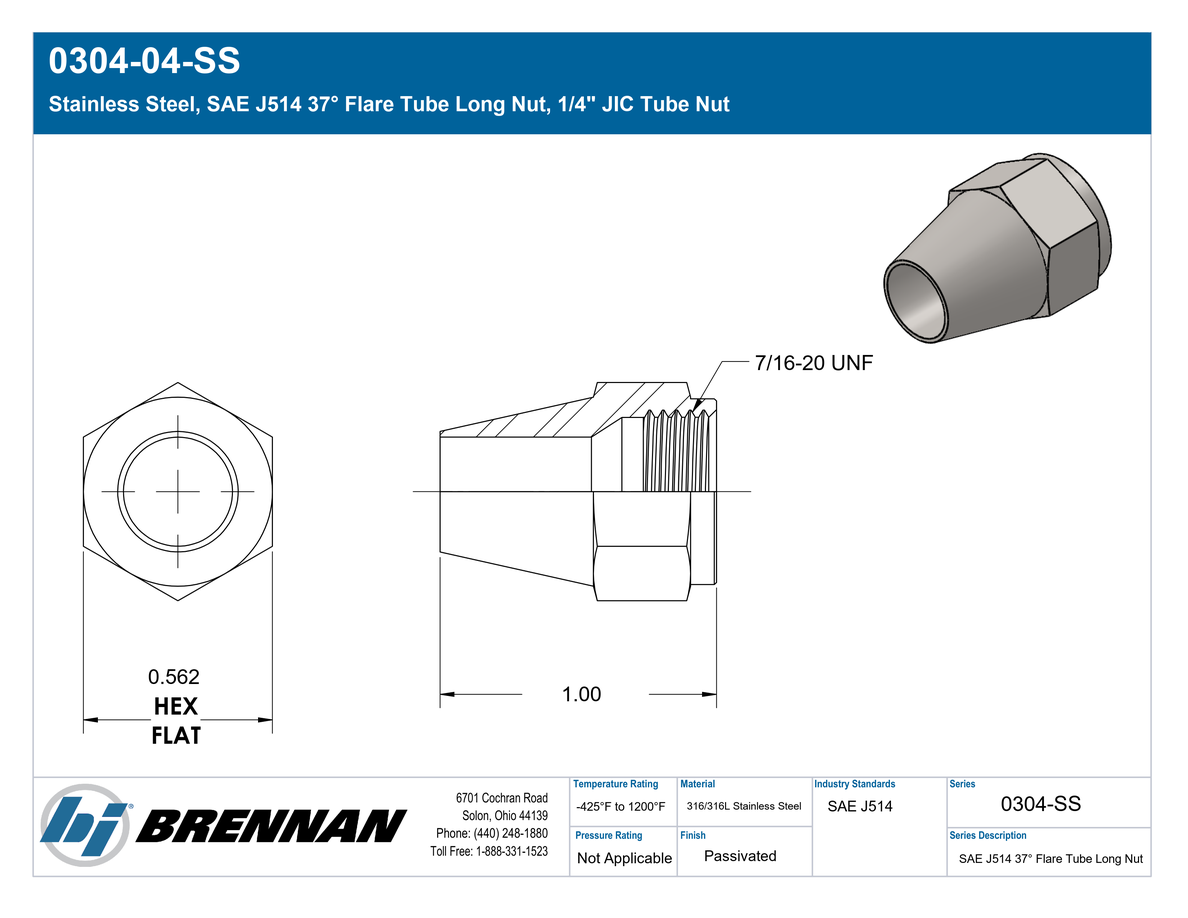

Stainless Steel, SAE J514 37° Flare Tube Long Nut, 1/4″ JIC Tube Nut
Additional information
| Connection Details | Connection Type: JIC Tube Nut |
|---|---|
| Body & Materials | Shape: Nut |
| Dimensions | Weight: 0.04 lb |
| Performance Specifications | Temperature Range: -425°F to 1200°F |
| Cross References | SAE J514 Part Number: SAE J514 4 070111S |
| Regulatory & Compliance | RoHS Compliance: Compliant |
| Series Configuration | JIC Long Nut |
| Technical Series Configuration | SAE J514 Female JIC Tube Long Nut |
| Side 1 Connection Type | JIC Tube Nut |
| Shape | Nut/Sleeve |
| Product Type | Fittings |
