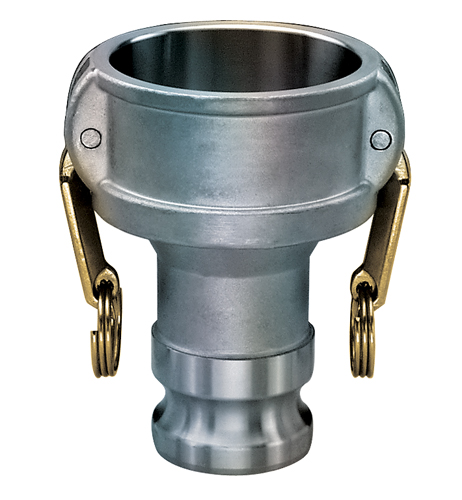

RDA-A4050
Description
GENERAL APPLICATIONS Kuriyama Camlock Couplings are intended for use in many industrial applications. To learn more, please refer to pages 296-297 in this catalog. FEATURES AND ADVANTAGES High quality design made to withstand rigorous applications found in industrial markets. Aluminum alloy specially designed for high tensile strength and impact resistance. Supplied with forged brass handles which results in less wear on connecting parts. MATERIAL SPECIFICATIONS ASTM aluminum alloy. Complies with Mil-Spec A-A-59326 for interchangeability. Forged brass handles. Zinc-plated carbon steel handle pins, pull rings and safety clips. Buna-N gasket included..
Additional information
| GENERAL APPLICATIONS | Agriculture industrial petroleum construction Irrigation |
|---|---|
| FEATURES AND ADVANTAGES | High quality design made to withstand rigorous applications found in industrial markets. Aluminum alloy specially designed for high tensile strength and impact resistance. Supplied with forged brass handles which results in less wear on connecting parts. |
| Aluminum | Aluminum is a lightweight metal with an excellent strength-to-weight ratio. At the same time, aluminum is more cost-effective than stainless steel or brass, so it is a good alternative for general industrial applications. This combination of strength of material and cost-effectiveness makes it the most popular camlock material. |
| MATERIAL SPECIFICATIONS | ASTM aluminum alloy. Complies with Mil-Spec A-A-59326 for interchangeability. Forged brass handles. Zinc-plated carbon steel handle pins, pull rings and safety clips. Buna-N gasket included.. |
| Brand | Kuriyama |
| Package Type | Each |
| Type | Female Coupler x Male Coupler |
| End Type A | Female Coupler |
| End Type B | Male Coupler |
| Material | Aluminum |
| Handle Material | Forged Brass |
| Handle Pins | Zinc-Plated Carbon Steel |
| Pull Rings | Zinc-Plated Carbon Steel |
| Safety Clips | Zinc-Plated Carbon Steel |
| Gasket | Buna-N |
| ASTM Specification | ASTM Specification N/A |
| Female Coupler | 4 in |
| Male Coupler | 5 in |
| NPT Size | NPT Size N/A |
| PSI Rating at 70°F (+21°C) | 150 psi |
| Weight Each | 4.41 lb |
| Standard Carton | 4 |
