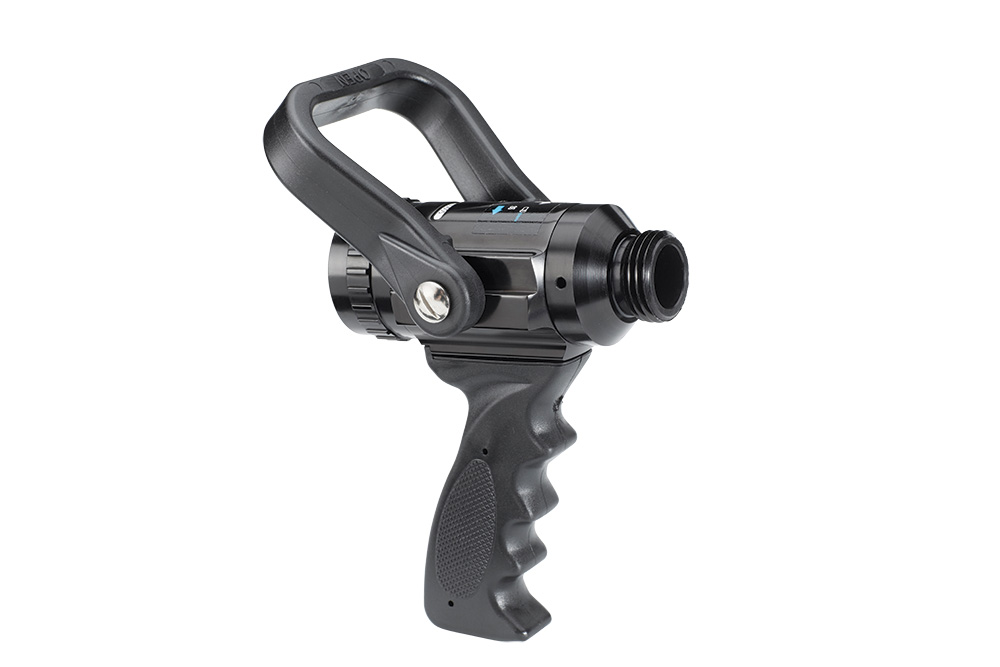

I219919
Additional information
| Bore Nozzle General Applications | The VIPER® Bore Nozzle is the combination of a VIPER® Bore Tip and a VIPER® Shut-Off for effective fire suppression. |
|---|---|
| Bore Nozzle Construction | Lightweight hard coat anodized aluminum |
| Bore Nozzle Features and Advantages | Combine with the Viper Ball Valve with Dual Seat and Dual Driven Shaft for superior firefighting solutions. Concentrated water flow while using lower pressures. Several sizes and orifices available. Select the nozzle tip size to meet your individual needs. |
| Bore Nozzle Approvals and Standards | The VIPER® Bore Nozzle is National Fire Protection Association (NFPA) 1964 compliant and is manufactured in an ISO 9001 accredited facility. European Standards (EN) 15182-1 and EN15182-2 type 3 Certificates are available by request. |
| Bore Nozzle Service and Maintenance | The VIPER® Bore Nozzles require minimal maintenance during operation provided the unit is regularly flushed with clean water after being used with contaminated water. Service kits are also available. |
| Shut-Off General Applications | The VIPER® Shut-Off can be used with any VIPER® Bore Tip for effective fire suppression |
| Shut-Off Construction | The VIPER® Shut-Off has a dual seat and dual driven shaft to offer better performance against water hammer and to enhance its durability. The VIPER® Shut-Off is a low maintenance product with a highly engineered polymer resin or stainless steel ball valve operated through an OPEN/CLOSE handle. |
| Shut-Off Features and Advantages | The VIPER® Shut-Off – The operation is smooth and constant allowing firefighters to open and close the valve easily. VIPER® Shut-Off Stainless Steel Inlet Screen – A stainless steel screen is mounted within the inlet to prevent materials from entering the nozzle to reduce the risk of damage or failure during operation. VIPER® Shut-Off Inlet Options – The VIPER® Shut-Off are available with the following standard threads: NST/NH Female, NPSH/IPT Female, and BSP Female. Swivel inlets – Full-time swivel inlets are provided. VIPER® Shut-Off Lot Number – Each VIPER® Shut-Off is marked with a lot number for ease of tracking. |
| Shut-Off Approvals and Standards | The VIPER® Shut-Off is National Fire Protection Association (NFPA) 1964 compliant and is manufactured in an ISO 9001 accredited facility. European Standards (EN) 15182-1 and EN15182-2 type 3 Certificates are available by request. |
| Brand | Viper® |
| Type | Shut-Off |
| Style | Bore Fire Nozzle |
| Handle Type | OPEN/CLOSE Handle |
| Function | Shut-Off |
| Grip Type | Pistol |
| Shut-Off Model Number | VB9520 |
| Inlet Female - Outlet Male | 1 1/2 – 1 1/2 in 38 – 38 mm |
| Thread | NH |
| Bore Size (Orifice) | 7/8 in 22.2 mm |
| Waterway Size | 1 3/8 in |
| Weight (each) | 1.91 kg 4.20 lb |
