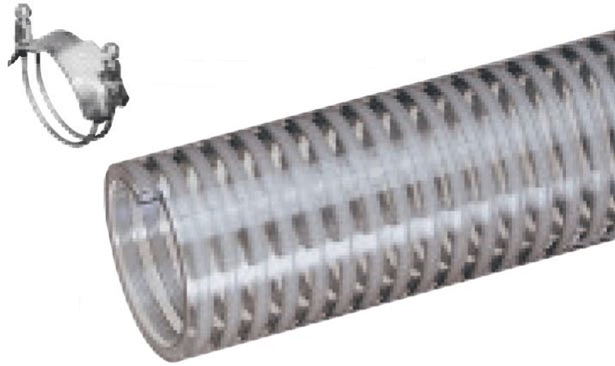

F600X100
Description
Made in the USA
Additional information
| General Applications | Irrigation lines Pumps, rental and construction dewatering Pumps, trash Water suction – heavy duty |
|---|---|
| Construction | PVC Tube with Rigid PVC Helix. |
| Service Temperature [Min] | -4 ºF -20 ºC |
| Service Temperature [Max] | 150 ºF 65 ºC |
| Features and Advantages | Transparent Construction – "See-the-flow." Allows for visual confiurmation of material flow. Smooth Outer Cover (Sizes 3/4" – 4") – Provides increased pressure rating and smooth surface for banding. Convoluted Outer Cover (Size 6") – Provides increased hose flexibility. |
| Brand | Tigerflex® |
| Series | F |
| Type | Heavy Duty PVC Suction Hose |
| Style | Transparent Construction (F Series only) |
| Color | Transparent Construction |
| Performance | Irrigation Lines |
| Outer Tube Material | Flexible PVC |
| Industry Standards/Certifications | EU 2002/95/EC |
| Body Material | PVC Tube |
| Reinforcement | Rigid PVC Helix |
| Note | Service life may vary depending on operating conditions and type of material being conveyed. |
| Compliance Footnotes | Phthalate Free – Manufactured from all phthalate free materials. RoHS – The product complies with the requirements of the EU directive 2002/95/EC which is on the restriction of the use of certain hazardous substances in electrical and electronic equipment. |
| ID | 6 in 152.4 mm |
| OD | 6.77 in 172.0 mm |
| Working Pressure at 68ºF | 40 psi |
| Working Pressure at 104ºF | 25 psi |
| Vacuum Rating at 68ºF | 28 inHg |
| Vacuum Rating at 104ºF | 22 inHg |
| Min. Bending Radius at 68ºF | 25 in |
| Standard Length | 100 ft |
| Weight | 3.76 lbs/ft |
