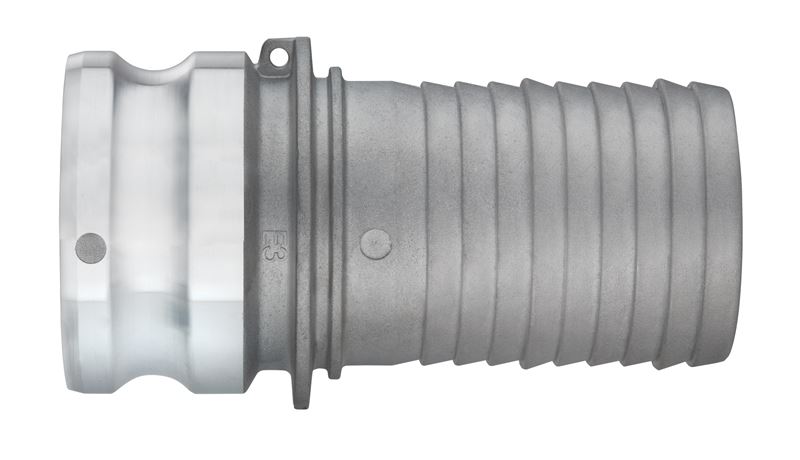

AL-E100
Description
GENERAL APPLICATIONS Kuriyama Camlock Couplings are intended for use in many industrial applications. To learn more, please refer to pages 296-297 in this catalog. FEATURES AND ADVANTAGES High quality design made to withstand rigorous applications found in industrial markets. Tri-Couple’m design available in 1 1/2″, 2″, 2 1/2″, 3″, 4″, 6″ sizes. Hose shanks especially designed for easy assembly with TigerflexTM type hoses. Kuriyama offers two 8″ coupling styles in aluminum.* Aluminum alloy specially designed for high tensile strength and impact resistance. MATERIAL SPECIFICATIONS ASTM aluminum alloy. Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
Additional information
| GENERAL APPLICATIONS | Agriculture industrial petroleum construction Irrigation |
|---|---|

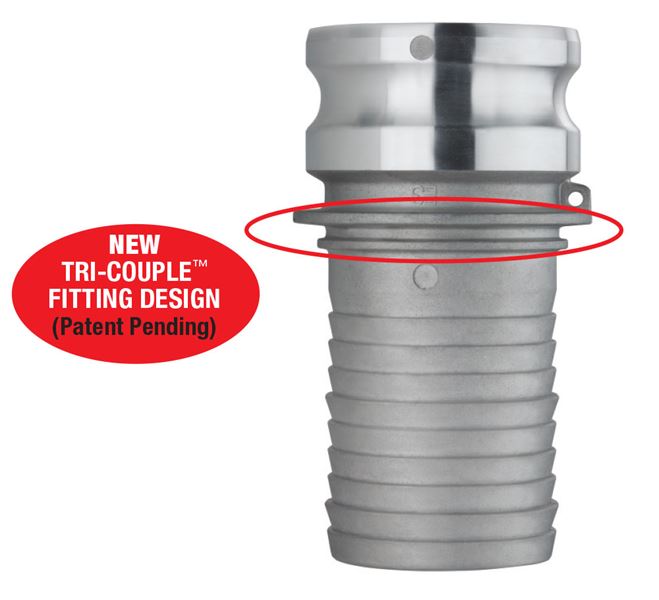

| FEATURES AND ADVANTAGES | High quality design made to withstand rigorous applications found in industrial markets. Tri-Couple'm design available in 1 1/2", 2", 2 1/2", 3", 4", 6" sizes. Hose shanks especially designed for easy assembly with TigerflexTM type hoses. Kuriyama offers two 8" coupling styles in aluminum.* Aluminum alloy specially designed for high tensile strength and impact resistance. |
| Aluminum | Aluminum is a lightweight metal with an excellent strength-to-weight ratio. At the same time, aluminum is more cost-effective than stainless steel or brass, so it is a good alternative for general industrial applications. This combination of strength of material and cost-effectiveness makes it the most popular camlock material. |
| MATERIAL SPECIFICATIONS | ASTM aluminum alloy. Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes. |
| Package Type | Each |
| Type | Male Coupler x Hose Shank |
| Style | Part E |
| End Type A | Male Coupler |
| End Type B | Hose Shank |
| Material | Aluminum |
| DETERMINING 8" COUPLING STYLE | To determine which version you need, please measure the outside diameter of the male coupling. If the measurement is less than 9" it is our AL-E800. If the measurement is more than 9" it is our HDAL-E801. |
| Coupler Size | 1 in |
| Shank Size | 1 in |
| PSI Rating at 70oF (+21oC | 250 psi |
| ASTM Specification | B85 Grade 383 |
| Weight Each | 0.20 lb |
| Standard Carton | 50 |
