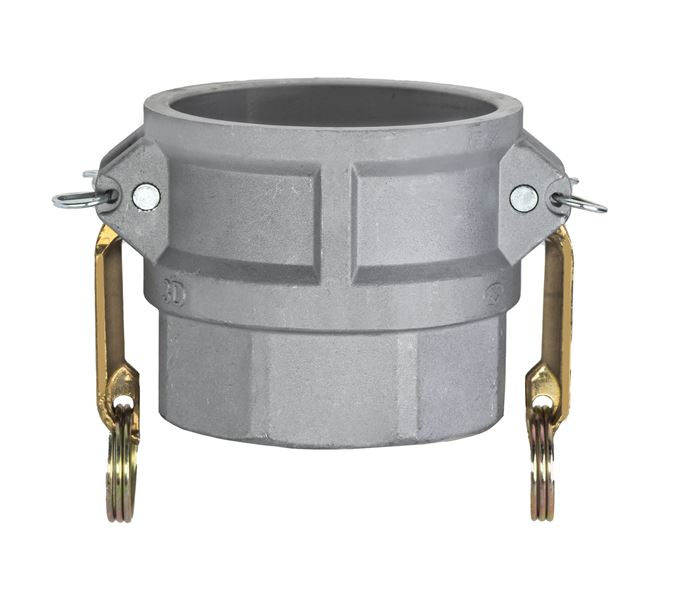

AL-D075
Description
Aluminum Quick-Acting Couplings
Additional information
| GENERAL APPLICATIONS | Agriculture industrial petroleum construction Irrigation |
|---|---|
| FEATURES AND ADVANTAGES | High quality design to withstand rigorous applications found in industrial markets. Kuriyama offers two 8" coupling styles in aluminum.* Aluminum alloy specially designed for high tensile strength and impact resistance. Supplied with forged brass handles which results in less wear on connecting parts. 8" & 10" sizes supplied with four brass handles. |
| Aluminum | Aluminum is a lightweight metal with an excellent strength-to-weight ratio. At the same time, aluminum is more cost-effective than stainless steel or brass, so it is a good alternative for general industrial applications. This combination of strength of material and cost-effectiveness makes it the most popular camlock material. |
| MATERIAL SPECIFICATIONS | ASTM aluminum alloy. Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes. Forged brass handles. Zinc-plated carbon steel handle pins, pull rings and safety clips. Buna-N gasket included. |
| Brand | Kuriyama |
| Package Type | Each |
| Material | Aluminum |
| Type | Female Coupler x Female NPT |
| Connection Type | Female |
| Style | Part D |
| End Type A | Female Coupler |
| End Type B | Female NPT |
| Handle Material | Forged Brass |
| Handle Pin Material | Zinc-Plated Carbon Steel |
| Pull Ring Material | Zinc-Plated Carbon Steel |
| Safety Clip Material | Zinc-Plated Carbon Steel |
| Gasket Material | Buna-N |
| DETERMINING 8" COUPLING STYLE | To determine which version you need, please measure the outside diameter of the male coupling. If the measurement is less than 9" it is our AL-D800. If the measurement is more than 9" it is our HDAL-D801. |
| Coupler Size | 3/4 in |
| Thread Size NPT | 3/4 in |
| PSI Rating at 70oF (+21oC | 250 psi |
| ASTM Specification | B85 Grade 383 |
| Weight Each | 0.22 lb |
| Standard Carton | 50 |
