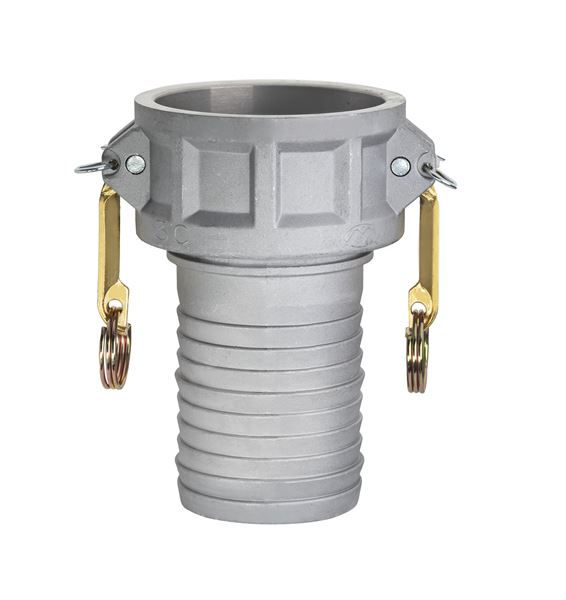

AL-C100
Description
GENERAL APPLICATIONS Kuriyama Camlock Couplings are intended for use in many industrial applications. To learn more, please refer to pages 296-297 in this catalog. FEATURES AND ADVANTAGES High quality design made to withstand rigorous applications found in industrial markets. MATERIAL SPECIFICATIONS ASTM aluminum alloy. Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes. Forged brass handles. Zinc-plated carbon steel handle pins, pull rings and safety clips. Buna-N gasket included.
Additional information
| GENERAL APPLICATIONS | Agriculture industrial petroleum construction Irrigation |
|---|---|
| FEATURES AND ADVANTAGES | High quality design made to withstand rigorous applications found in industrial markets. Tri-CoupleT" design available in 1 1/2", 2", 2 1/2", 3", 4", 6" sizes. Hose shanks especially designed for easy assembly with TigerflexTM type hoses. Kuriyama offers two 8" coupling styles in aluminum.* Aluminum alloy specially designed for high tensile strength and impact resistance. Supplied with forged brass handles which results in less wear on connecting parts. 8" & 10" sizes supplied with four brass handles. |
| Aluminum | Aluminum is a lightweight metal with an excellent strength-to-weight ratio. At the same time, aluminum is more cost-effective than stainless steel or brass, so it is a good alternative for general industrial applications. This combination of strength of material and cost-effectiveness makes it the most popular camlock material. |
| MATERIAL SPECIFICATIONS | ASTM aluminum alloy. Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes. Forged brass handles. Zinc-plated carbon steel handle pins, pull rings and safety clips. Buna-N gasket included. |
| Brand | Kuriyama |
| PSI Rating at 70oF (+21oC) | 250 psi |
| Coupling Design | Standard |
| Package Type | Each |
| Type | Female Coupler x Hose Shank |
| Style | Part C |
| End Type A | Female Coupler |
| End Type B | Hose Shank |
| Material | Aluminum |
| Handle Material | Forged Brass |
| Handle Pins | Zinc-Plated Carbon Steel |
| Pull Rings | Zinc-Plated Carbon Steel |
| Safety Clips | Zinc-Plated Carbon Steel |
| Gaskets | Buna-N |
| DETERMINING 8" COUPLING STYLE | To determine which version you need, please measure the outside diameter of the male coupling. If the measurement is less than 9" it is our AL-C800. If the measurement is more than 9" it is our HDAL-C801. |
| Coupler Size | 1 in |
| Thread Size NPT | 1 in |
| ASTM Specification | B85 Grade 383 |
| Weight Each | 0.42 lb |
| Standard Carton | 60 |
