2650-02-02-02-02-FG

2650-02-02-02-02-FG

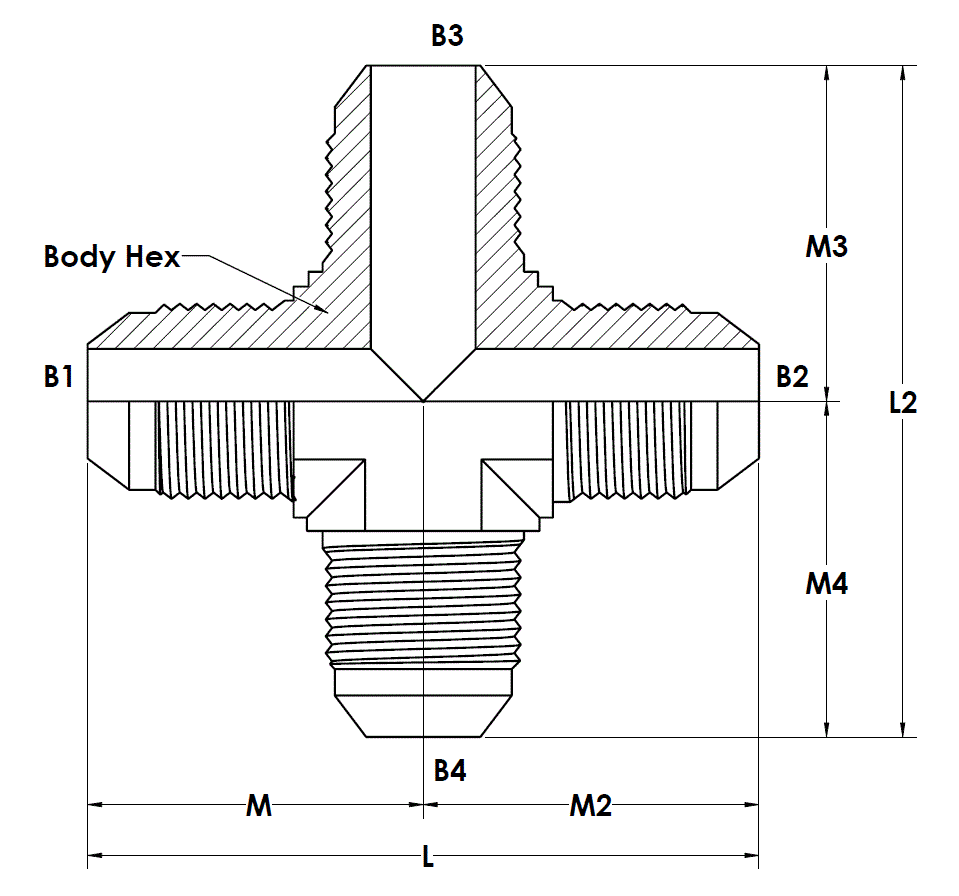

2650-02-02-02-02-FG - Image 2

Product Code: 2650-02-02-02-02-fg Brand: Brennan Inc

Options

Description

Steel, SAE J514 37° Flare Union Cross, 1/8″ Male JIC

Additional information

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 1/8" Side 1 Thread Type: 5/16-24 UNF Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Male JIC Side 2 Tube OD: 1/8" Side 2 Thread Type: 5/16-24 UNF Side 2 Standard: SAE J514 – Class 2A Thread Side 2 Role: Line/Tube Connection Side 3 Connection Type: Male JIC Side 3 Tube OD: 1/8" Side 3 Thread Type: 5/16-24 UNF Side 3 Standard: SAE J514 – Class 2A Thread Side 3 Role: Line/Tube Connection Side 4 Connection Type: Male JIC Side 4 Tube OD: 1/8" Side 4 Thread Type: 5/16-24 UNF Side 4 Standard: SAE J514 – Class 2A Thread Side 4 Role: Line/Tube Connection
Body & Materials	Shape: Cross Shape Type: Union Cross Primary Material: Steel Material Grade: C1045 Plating: Trivalent Zinc
Dimensions	Weight: 0.07 lb
Performance Specifications	Working Pressure: 7500 psi Temperature Range: -65°F to 500°F Corrosion Resistance: 120 hrs no white rust; 240 hrs no red rust per ASTM B117 Burst Pressure: 30000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 2020-2-2S Parker TFD Part Number: 2 KTX-S SAE J514 Part Number: SAE J514 2-2-2-2 070501C
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Male JIC x Male JIC x Male JIC x Male JIC
Technical Series Configuration	SAE J514 Male JIC Tube x Male JIC Tube x Male JIC Tube x Male JIC Tube Union Cross
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Male JIC
Shape	Cross
Product Type	Fittings
