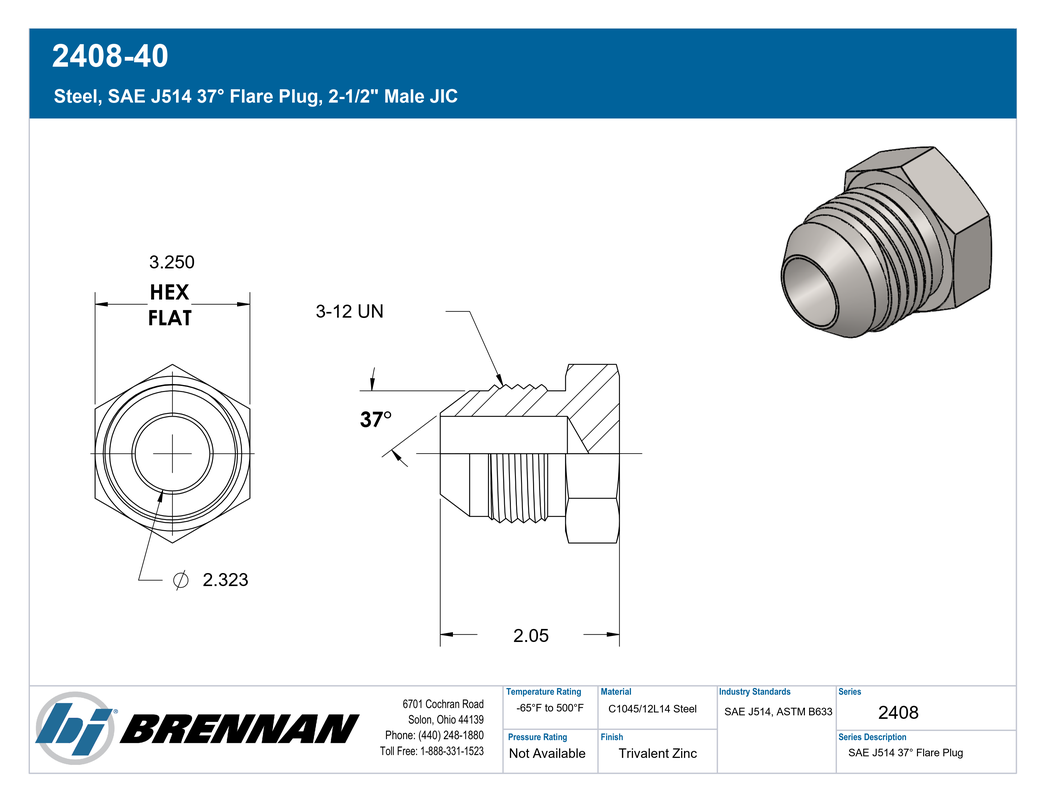

Steel, SAE J514 37° Flare Plug, 2-1/2″ Male JIC

Connection Details	Connection Type: Male JIC Tube OD: 2-1/2" Thread Type: 3-12 UN Standard: SAE J514 – Class 2A Thread Connection Standard: SAE J514 – Class 2A Thread Role: Line/Tube Connection Connection Role: Line/Tube Connection
Body & Materials	Shape: Plug Shape Type: Plug Primary Material: Steel Material Grade: 12L14/C1045 Plating: Trivalent Zinc
Dimensions	Weight: 2.85 lb
Performance Specifications	Temperature Range: -65°F to 500°F Corrosion Resistance: 120 hrs no white rust; 240 hrs no red rust per ASTM B117
Cross References	Aeroquip Part Number: 900599-40S Parker TFD Part Number: 40 PNTX-S SAE J514 Part Number: SAE J514 40 070109C
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6a-I (Lead in steel alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	Male JIC Plug
Technical Series Configuration	SAE J514 Male JIC Tube Plug
Side 1 Connection Type	Male JIC
Shape	Cap/Plug
Product Type	Fittings
