2408-08-SS - Capital Rubber & Gasket: A Singer Industrial Company

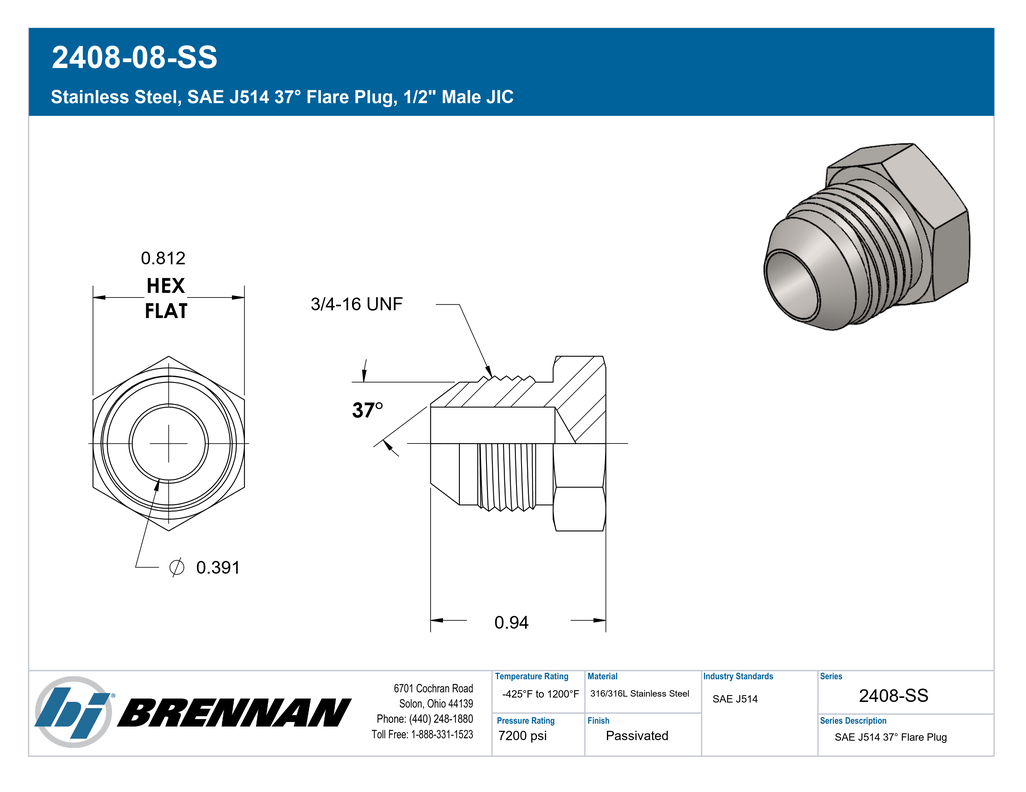

Stainless Steel, SAE J514 37° Flare Plug, 1/2″ Male JIC

Connection Details	Connection Type: Male JIC Tube OD: 1/2" Thread Type: 3/4-16 UNF Standard: SAE J514 – Class 2A Thread Connection Standard: SAE J514 – Class 2A Thread Role: Line/Tube Connection Connection Role: Line/Tube Connection
Body & Materials	Shape: Plug Shape Type: Plug Primary Material: Stainless Steel Material Grade: 316/316L
Dimensions	Weight: 0.09 lb
Performance Specifications	Working Pressure: 7200 psi Temperature Range: -425°F to 1200°F Burst Pressure: 28800 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 259-900599-8 Parker Hose Part Number: 03CP-8-SS Parker TFD Part Number: 8 PNTX-SS SAE J514 Part Number: SAE J514 8 070109S
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Male JIC Plug
Technical Series Configuration	SAE J514 Male JIC Tube Plug
Side 1 Connection Type	Male JIC
Shape	Cap/Plug
Product Type	Fittings
