2405-10-04-SS - Capital Rubber & Gasket: A Singer Industrial Company

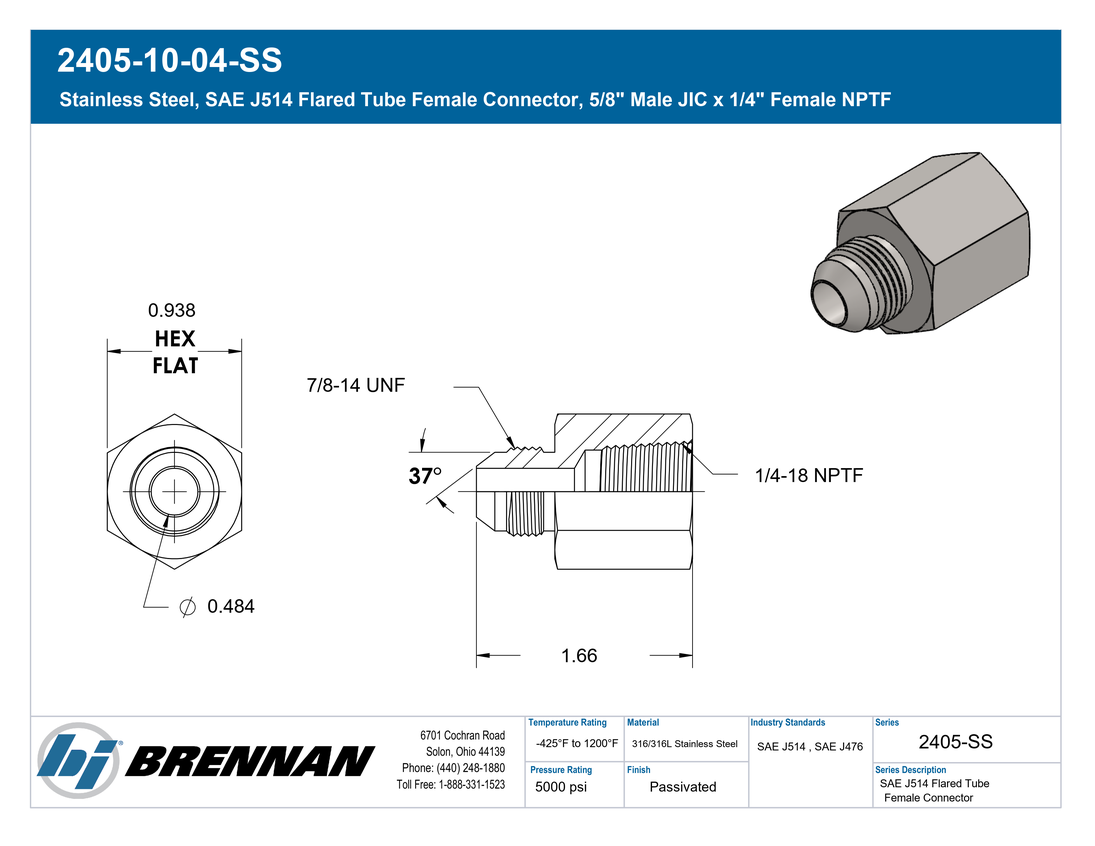

Stainless Steel, SAE J514 37° Flare Female Connector, 5/8″ Male JIC x 1/4″ Female NPTF

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 5/8" Side 1 Thread Type: 7/8-14 UNF Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Female NPTF Side 2 Pipe Size: 1/4" Side 2 Thread Type: 1/4-18 NPTF Side 2 Standard: SAE J476 Side 2 Role: Pipe Connection
Body & Materials	Shape: Straight Shape Type: Connector Primary Material: Stainless Steel Material Grade: 316/316L Surface Treatment: Passivated
Dimensions	Hex/Wrench: 0.938 Weight: 0.23 lb
Performance Specifications	Working Pressure: 5000 psi Temperature Range: -425°F to 1200°F Burst Pressure: 20000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 259-2022-4-10 Parker TFD Part Number: 10-4 GTX-SS SAE J514 Part Number: SAE J514 10-4 070103S
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Male JIC x Female Pipe
Technical Series Configuration	SAE J514 Male JIC Tube x SAE J476 Female NPTF Connector
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Female NPTF
Shape	Straight
Product Type	Fittings
