Nuts, Sleeves, Locknuts / 0319-20

0319-20

0319-20
0319-20 - Image 2
0319-20 - Image 3
0319-20 - Image 4
0319-20 - Image 5
Product Code: 0319-20 Brand:
Options
- +

Description

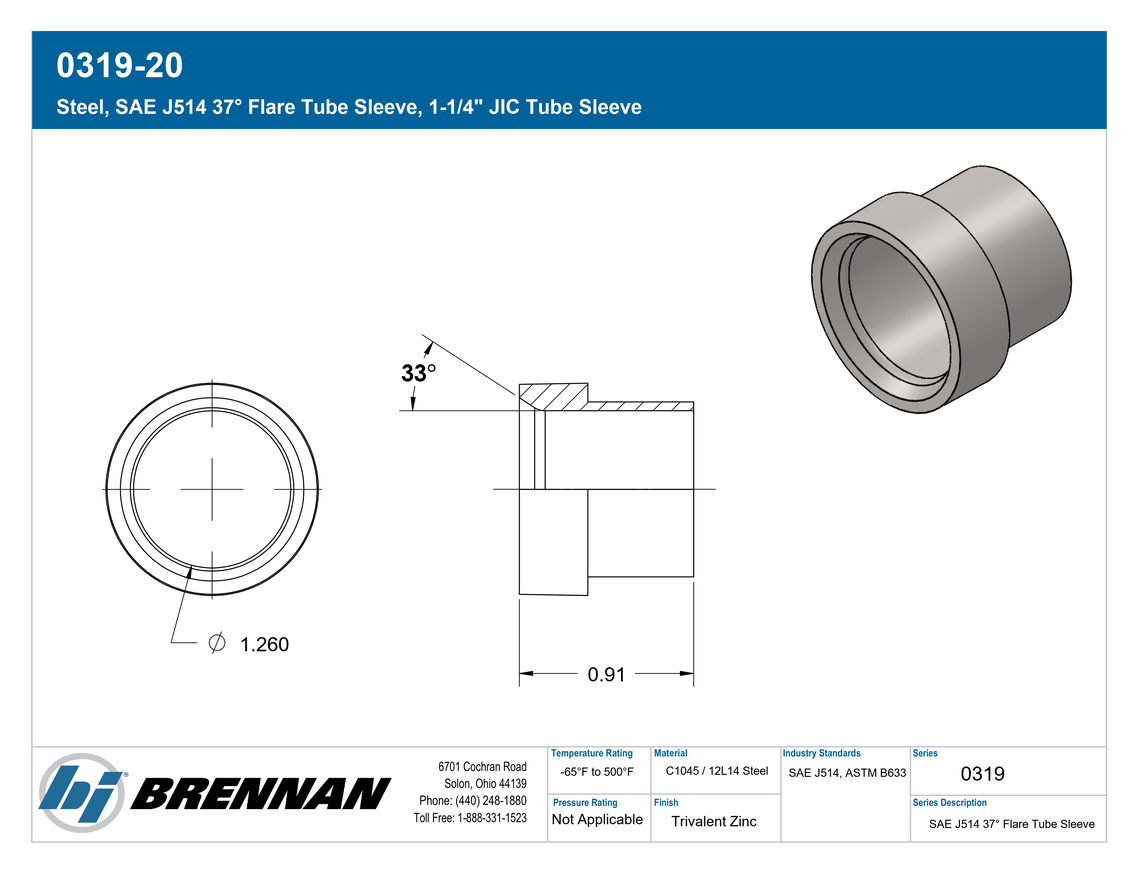

Steel, SAE J514 37° Flare Tube Sleeve, 1-1/4″ JIC Tube Sleeve

Additional information

Connection Details

Connection Type: JIC Tube Sleeve
Tube OD: 1-1/4"
Standard: SAE J514
Connection Standard: SAE J514
Role: Line/Tube Connection
Connection Role: Line/Tube Connection
Body & Materials

Shape: Sleeve
Shape Type: Tube Sleeve
Primary Material: Steel
Material Grade: 12L14/C1045
Plating: Trivalent Zinc
Dimensions

Weight: 0.07 lb
Performance Specifications

Temperature Range: -65°F to 500°F
Cross References

Aeroquip Part Number: 900605-20S
Parker Hose Part Number: 06S-20
Parker TFD Part Number: 20 TX-S
SAE J514 Part Number: SAE J514 20 070115C
Regulatory & Compliance

RoHS Compliance: Compliant by Exemption 6a-I (Lead in steel alloy)
REACH Compliance: May contain Lead ≥0.1%
Series Configuration

JIC Tube Sleeve
Technical Series Configuration

SAE J514 Tube Sleeve
Side 1 Connection Type

JIC Tube Sleeve
Shape

Nut/Sleeve
Product Type

Fittings
