0306-20-SS - Capital Rubber & Gasket: A Singer Industrial Company

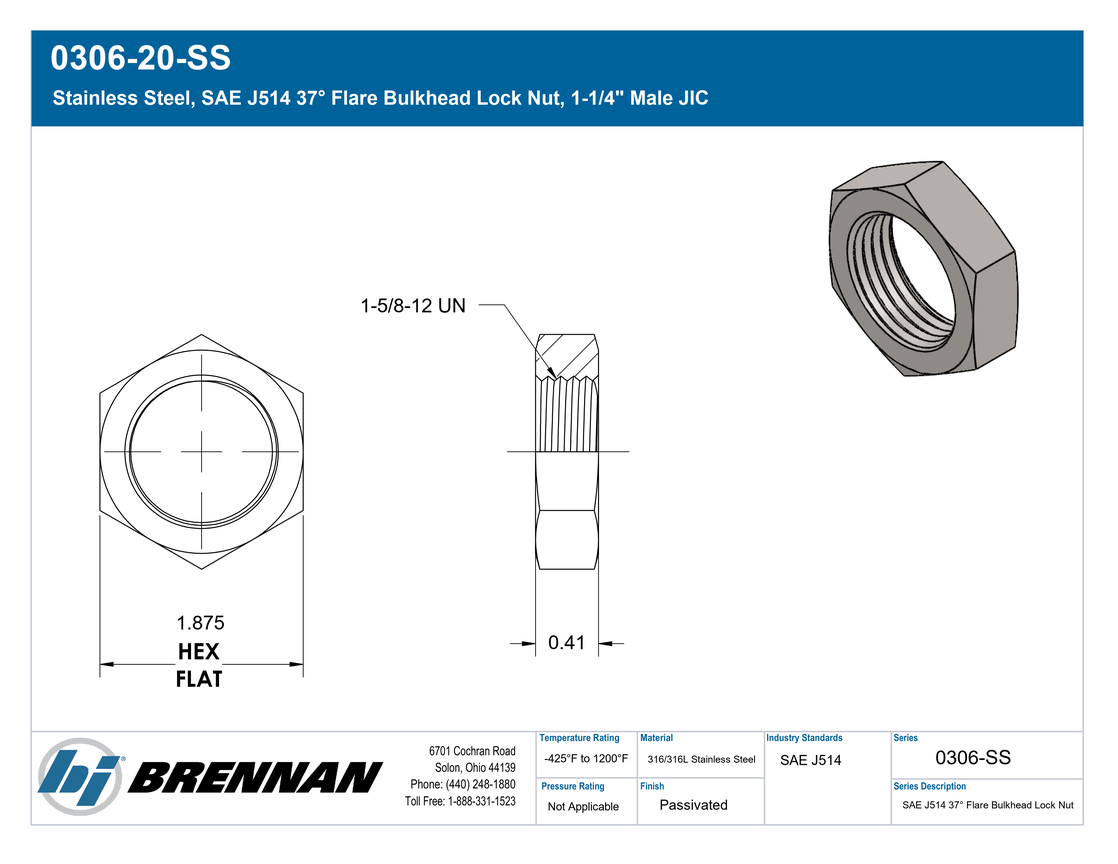

Stainless Steel, SAE J514 37° Flare Bulkhead Lock Nut, 1-1/4″ Male JIC

Connection Details	Connection Type: JIC Locknut Tube OD: 1-1/4" Thread Type: 1-5/8-12 UN Standard: SAE J514 Connection Standard: SAE J514 Role: Line Connection Connection Role: Line Connection
Body & Materials	Shape: Nut Shape Type: Lock Nut Primary Material: Stainless Steel Material Grade: 316/316L
Dimensions	Weight: 0.12 lb
Performance Specifications	Temperature Range: -425°F to 1200°F
Cross References	Aeroquip Part Number: 259-210212-20 Parker TFD Part Number: 20 WLN-SS SAE J514 Part Number: SAE J514 20 070118S
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	JIC Bulkhead Lock Nut
Technical Series Configuration	SAE J514 Female UN/UNF Bulkhead Lock Nut
Side 1 Connection Type	JIC Locknut
Shape	Nut/Sleeve
Product Type	Fittings
