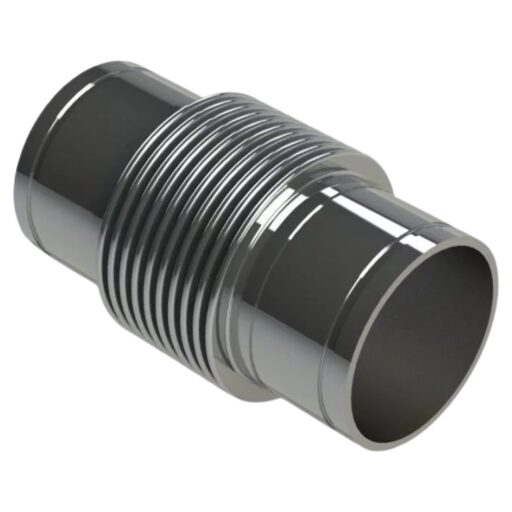

Pipe System Metal Expansion Joints for Data Centers
Overview:
Pipe System Metal Expansion Joints are engineered to absorb thermal expansion, vibration, and movement within liquid-cooling and process piping systems. Constructed from high-strength stainless steel with precision-formed bellows, these joints protect pumps, valves, and manifolds from mechanical stress while maintaining leak-free performance under continuous operation. Their robust design ensures reliability, corrosion resistance, and long service life—making them ideal for high-efficiency Data Center cooling networks where uptime and fluid containment are essential.
Key Technical Advantages:
Stainless Steel Construction: Typically manufactured from 304, 316L, or 321 stainless steel for superior corrosion and temperature resistance.
Multi-Ply Bellows Design: Provides flexibility and strength to accommodate axial, lateral, and angular movement in piping systems.
Pressure and Temperature Range: Handles up to 25 bar (362 psi) and service temperatures from –200 °C to +600 °C (–328 °F to +1112 °F).
Vibration Isolation: Reduces transmission of mechanical vibration from pumps and chillers to piping structures.
Leak-Tight Welded Assemblies: Fully welded, helium-tested construction ensures zero-permeation performance in critical systems.
Custom Configurations: Available with flanged, grooved, or weld-end fittings to integrate with various piping layouts.
Optional Reinforcement: Can be supplied with external braiding, tie rods, or limit rods for high-pressure or controlled movement applications.
Data-Center Application Focus:
Pipe System Metal Expansion Joints are essential for managing thermal growth and vibration in Data Center liquid-cooling, chilled-water, and condenser systems. Installed between pumps, CDUs, and heat exchangers, they prevent stress cracking, reduce fatigue, and maintain alignment throughout temperature fluctuations and startup cycles. Their all-metal, corrosion-resistant construction ensures durability and cleanliness in closed-loop coolant systems, while their precision flexibility minimizes downtime and maintenance. Designed to meet OCP reliability and safety standards, these expansion joints enhance the performance and mechanical integrity of mission-critical Data Center infrastructure.
