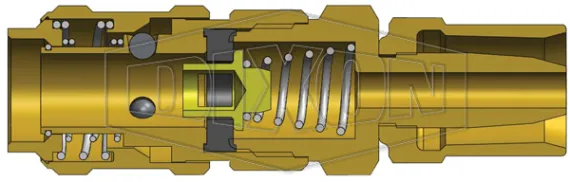

2AE2-B - A-Series Pneumatic Reusable Barb Coupler
Description
## Applications
A series couplers are intended for use in compressed air service where the convenience of one hand operation and a compact profile is desired.
## Compatibility & Interchange Data
Proprietary Astronautics
## Construction
– Machined components are manufactured using solid bar stock.
– Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
## Safety Notes
Pressure rating given at ambient temperature 70°F (21°C).
## Specifications
– Rated pressure for connected Brass Coupler & Brass Plug: 500 PSI (35 bar) Maximum Working and 6,500 PSI (450 bar) Burst
– Rated pressure for connected Brass Coupler & Steel Plug: 1,000 PSI (70 bar) Maximum Working and 8,000 PSI (550 bar) Burst
## Prop 65 Warning
**WARNING**: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
Additional information
| Weight | 0.19 lb |
|---|---|
| Break Quantity | 1 |
| Optional Package/Box Quantity | 1 |
| Material | Brass |
| Maximum OD | 0.77" |
| Body Size | 1/4" |
| Length | 2.62" |
| Hose ID | 1/4" |
| Hex | 11/16" |
| Flow | 25 CFM at 100 PSI |
| Hose OD | 1/2" |
| Pressure Rating | See Product Details |
| Applications | A series couplers are intended for use in compressed air service where the convenience of one hand operation and a compact profile is desired. |
| Compatibility & Interchange Data | Proprietary Astronautics |
| Construction | Machined components are manufactured using solid bar stock. Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life. |
| Safety Notes | Pressure rating given at ambient temperature 70°F (21°C). |
| Specifications | Rated pressure for connected Brass Coupler & Brass Plug: 500 PSI (35 bar) Maximum Working and 6,500 PSI (450 bar) Burst Rated pressure for connected Brass Coupler & Steel Plug: 1,000 PSI (70 bar) Maximum Working and 8,000 PSI (550 bar) Burst |
| Prop 65 Warning | WARNING : This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. |
