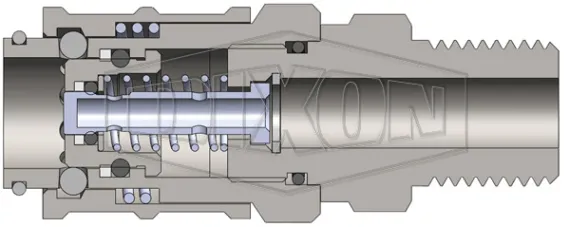

1PDM2 - PD-Series Diagnostic Male Coupler
Description
## Compatibility & Interchange Data
– Interchangeable to ISO15171-1
– Parker PD-Series, Aeroquip FD90
## Construction
– Machined components are manufactured using solid bar stock
– Stainless steel springs. Carbon steel balls and retaining rings.
– Steel componentry is plated using ROHS Compliant Trivalent Chrome.
– Nitrile (Nitrile Rubber) seals are standard
– PTFE anti-extrusion ring protects main coupler O-ring from dynamic impulse pressure damage.
## Prop 65 Warning
**WARNING**: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
Additional information
| Maximum Operating Pressure | 6000 PSI (400 bar) at 70°F (21°C) |
|---|---|
| Weight | 0.245 lb |
| Break Quantity | 1 |
| Optional Package/Box Quantity | 1 |
| Material | Steel |
| Maximum OD | 0.98" (24.9 mm) |
| Thread | Male NPT |
| Body Size | 1/8" |
| Temperature Range | -40°F to 250°F (-40°C to 121°C) |
| Burst Pressure | 18700 PSI (1300 bar) |
| Thread Size | 1/4"-18 |
| Length | 2.28" (57.9 mm) |
| Hex | 21mm |
| Compatibility & Interchange Data | Interchangeable to ISO15171-1 Parker PD-Series, Aeroquip FD90 |
| Construction | Machined components are manufactured using solid bar stock Stainless steel springs. Carbon steel balls and retaining rings. Steel componentry is plated using ROHS Compliant Trivalent Chrome. Nitrile (Nitrile Rubber) seals are standard PTFE anti-extrusion ring protects main coupler O-ring from dynamic impulse pressure damage. |
| Prop 65 Warning | WARNING : This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. |
