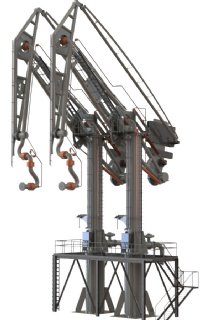

GasTec Marine Loading Arm

The GasTec is specifically designed to unload Compressed Natural Gas under high pressure.
Suitable for operation pressures up to 100 bar at temperatures between -50 and +200°C with diameters from 6″ up to 12″
Key Features
Cable free design with adjustable balancing link
Fully hardened replaceable cartridge swivel ball races
Support jack bent towards ship manifold
Provided with pressure relieve system
Vacuum resistant block seals
Hydraulic operation
Supported design with single product pipe
Only six swivel joints required with minimal jetty loads.
Minimum pressure drop
Zero emission
10 years guarantee
Technical Details
Hydraulically operated
Dedicated hydraulic solenoid valves for each Marine Loading Arm
Completely balanced, in empty or full condition
6″ up to 20″
-50°C / + 200°C
Suitable for all (petro-) chemicals, liquids and gases.
up to 900#
Available in all materials, e.g.: Carbon Steel, Stainless Steel and Stainless Steel 316Ti
