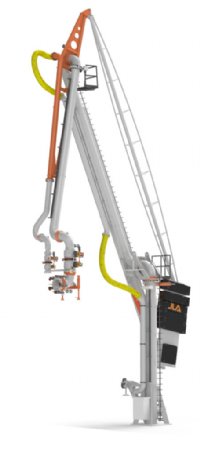

HydroTec Marine Loading Arm

The HydroTec is hydraulically operated.
Available in diameters ranging from 6″ to 20″, suitable for all liquids & gasses between -50°C and +200°C
Key features
Cable free design with adjustable balancing link
Fully hardened replaceable cartridge swivel ball races
Support jack bent towards ship manifold
Vacuum resistant block seals with zero emission
Self supported, lightweight design
Only six swivel joints required
Minimum pressure drop
Operator friendly locking system
Modular design suitable for container shipment
10 year guarantee
Technical Details
Hydraulically operated
Dedicated hydraulic solenoid valves for each Marine Loading Arm
Completely balanced, in empty or full condition
6″ up to 20″
-50°C / + 200°C
Suitable for all (petro-) chemicals, liquids and gases.
150# and 300#
Available in all materials, e.g.: Carbon Steel, Stainless Steel and Stainless Steel 316Ti
