NS2603-06-06-06-B - Capital Rubber & Gasket: A Singer Industrial Company

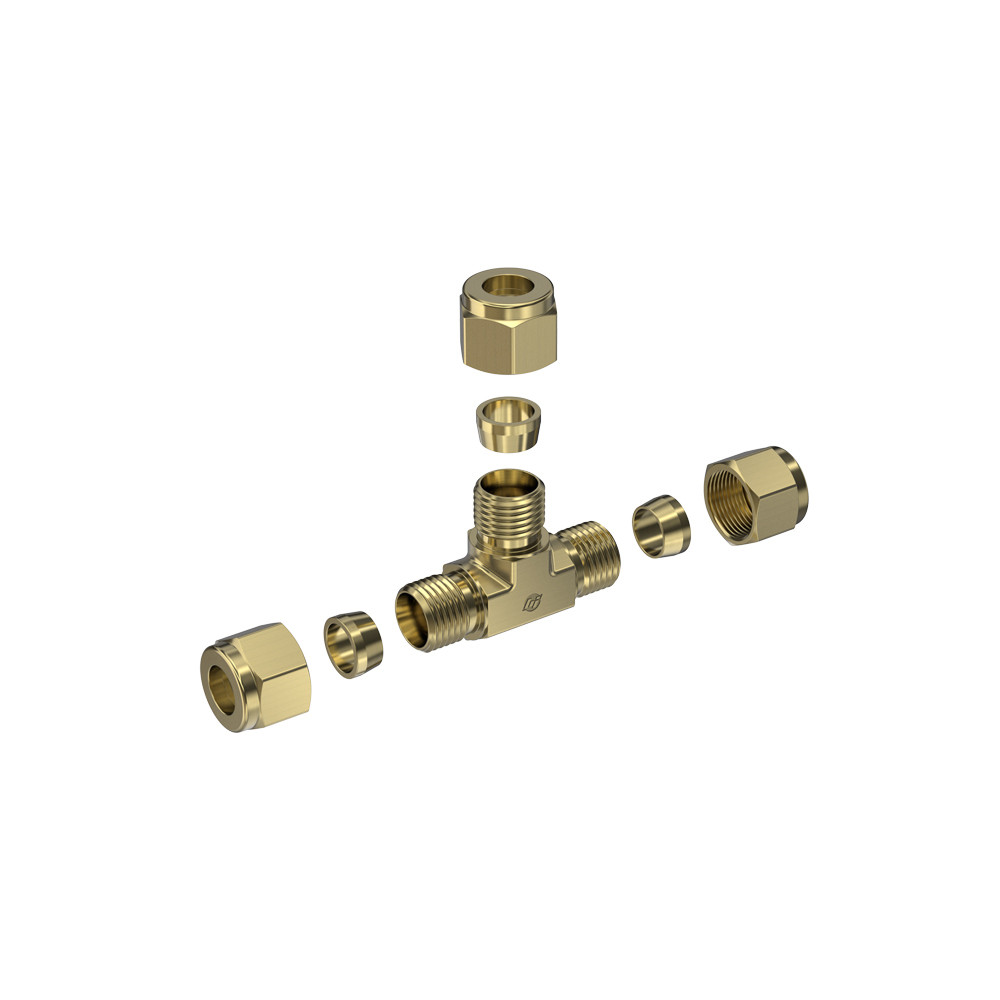

Brass, Brennan SF Tube Fitting Union Tee, 3/8″ Tube OD

Connection Details	Side 1 Connection Type: Single Ferrule Compression Side 1 Tube OD: 3/8" Side 1 Thread Type: 9/16-20 UN Side 1 Role: Tube Connection Side 1 Tube Fitting System: Brennan NS Series Side 2 Connection Type: Single Ferrule Compression Side 2 Tube OD: 3/8" Side 2 Thread Type: 9/16-20 UN Side 2 Role: Tube Connection Side 2 Tube Fitting System: Brennan NS Series Side 3 Connection Type: Single Ferrule Compression Side 3 Tube OD: 3/8" Side 3 Thread Type: 9/16-20 UN Side 3 Role: Tube Connection Side 3 Tube Fitting System: Brennan NS Series
Body & Materials	Shape: Tee Shape Type: Union Tee Primary Material: Brass Material Grade: ASTM B124 CA37700 Length: 0.91"
Dimensions	Hex/Wrench: 0.625" Overall Length/Centerline: 0.91" Weight: 0.2962 lb
Performance Specifications	Temperature Range: -325°F to 400°F Pressure Rating Notes: See Tube Pressure Rating Chart
Series Configuration	Single Ferrule Compression x Single Ferrule Compression x Single Ferrule Compression
Side 1 Connection Type	Single Ferrule Compression
Side 2 Connection Type	Single Ferrule Compression
Shape	Tee
Product Type	Fittings
