N7202-04-02-NWO-B - Capital Rubber & Gasket: A Singer Industrial Company

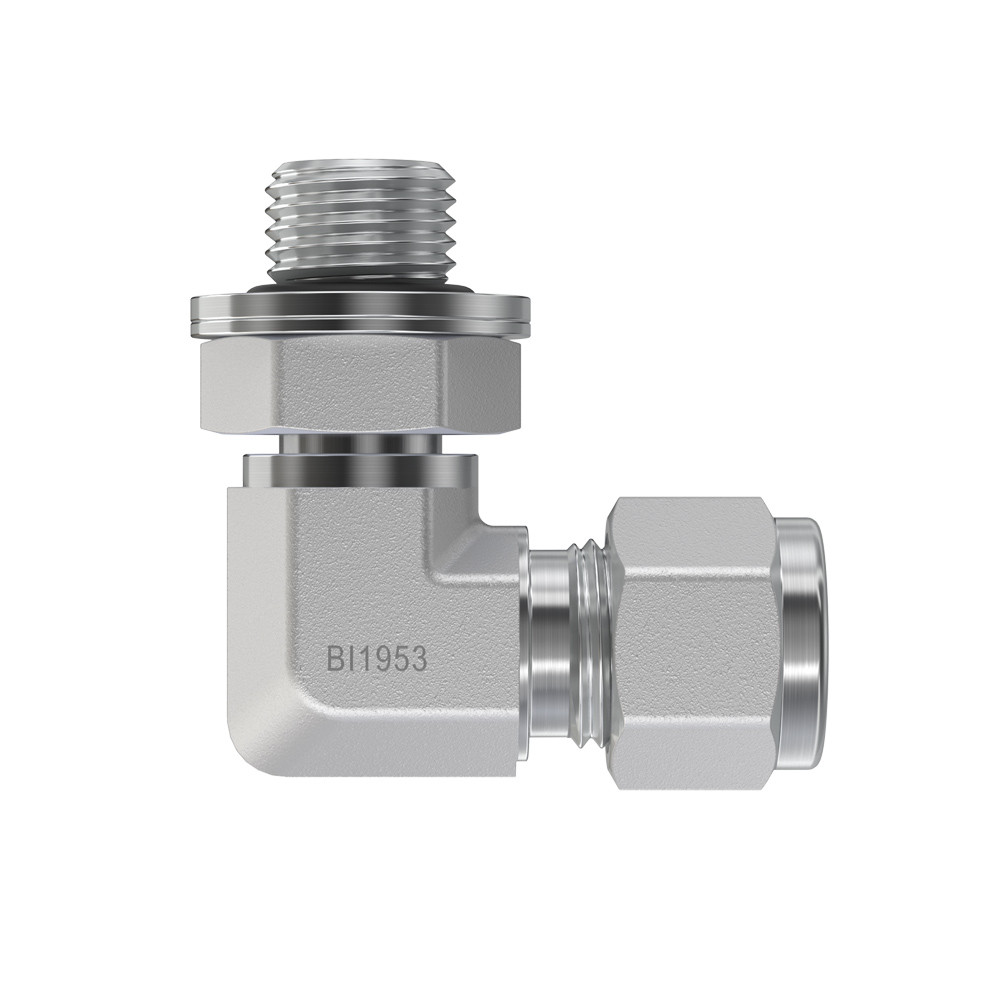

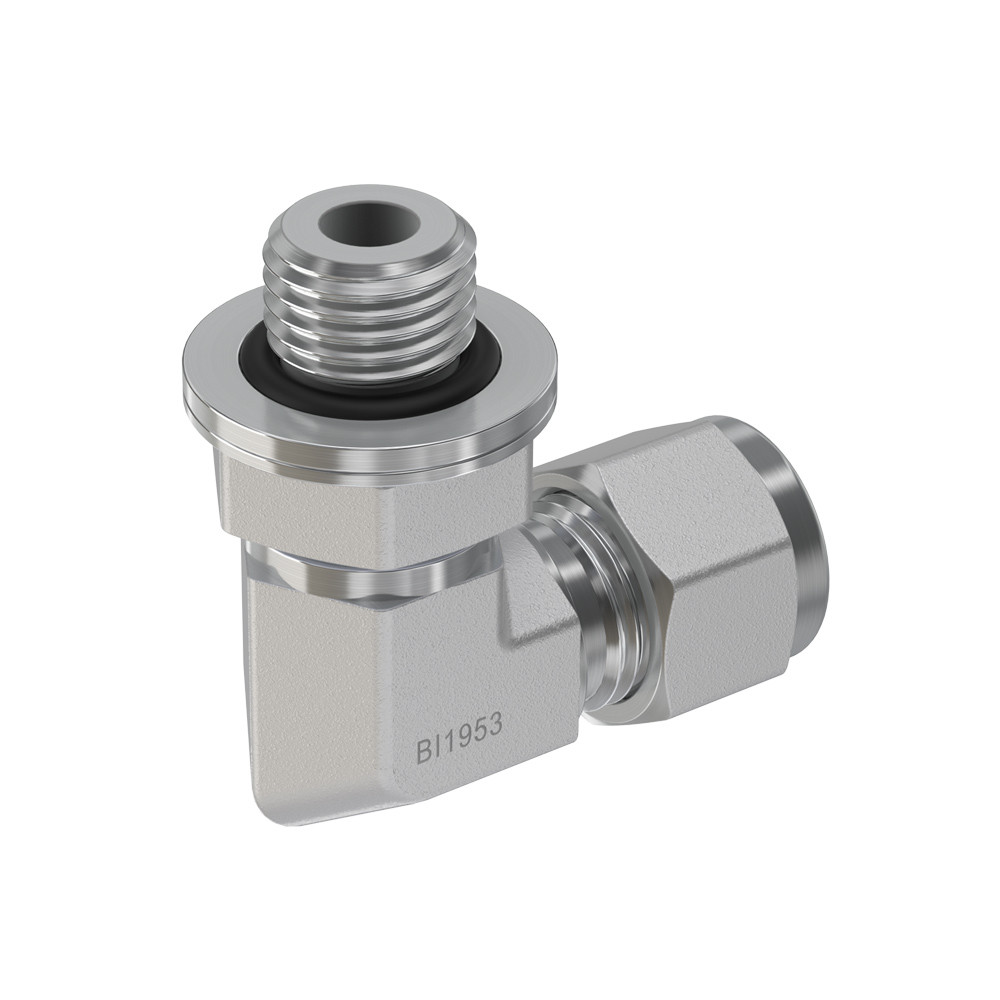

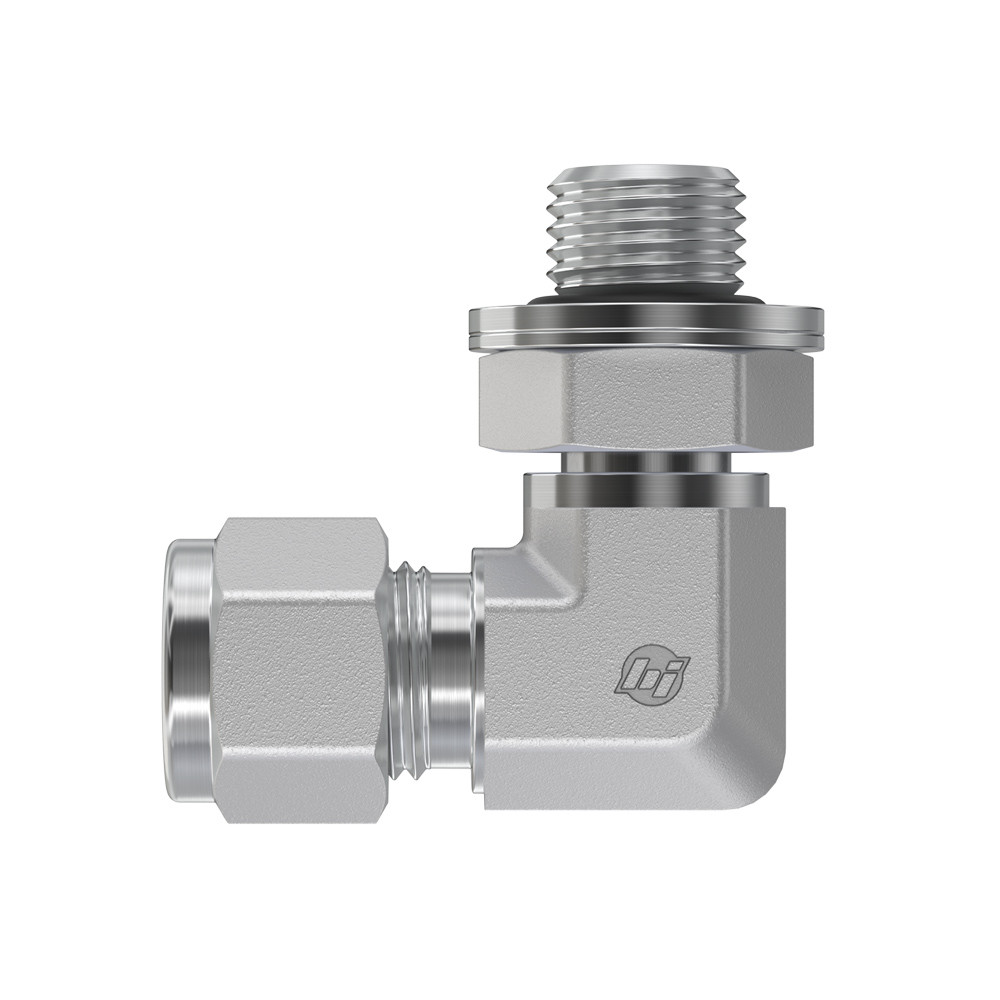

Brass, Brennan Tube Fitting 90° Male ISO Adjustable Port Elbow, 1/4″ Tube OD x G – 1/8-28 Male Adjustable BSPP ORR

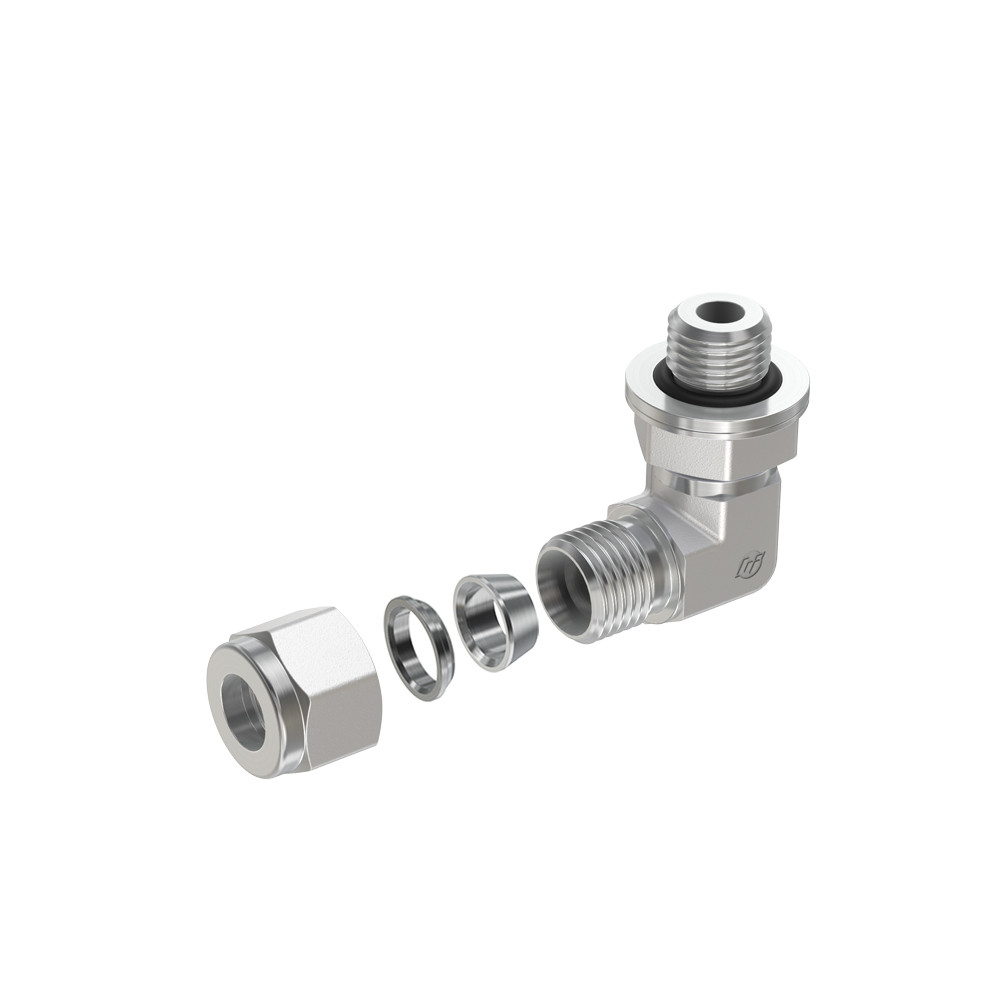

Connection Details	Side 1 Connection Type: Double Ferrule Compression Side 1 Tube OD: 1/4" Side 1 Thread Type: 7/16-20 UNF Side 1 Role: Tube Connection Side 1 Replacement Ferrule: N0319-F-04-B, N0319-B-04-B Side 1 Replacement Nut: N0318-04-B Side 1 Tube Fitting System: Brennan N Series Side 2 Connection Type: Male Adjustable BSPP ORR Side 2 Thread Type: G – 1/8-28 Side 2 Standard: ISO 1179 Side 2 Role: Port Connection Side 2 Replacement Seal: 9901-02
Body & Materials	Shape: 90° Elbow Shape Type: Male Elbow Primary Material: Brass Material Grade: ASTM B124 CA37700 Seal Code: FKM Seal Material: Viton (Fluorocarbon) Length: 0.77"

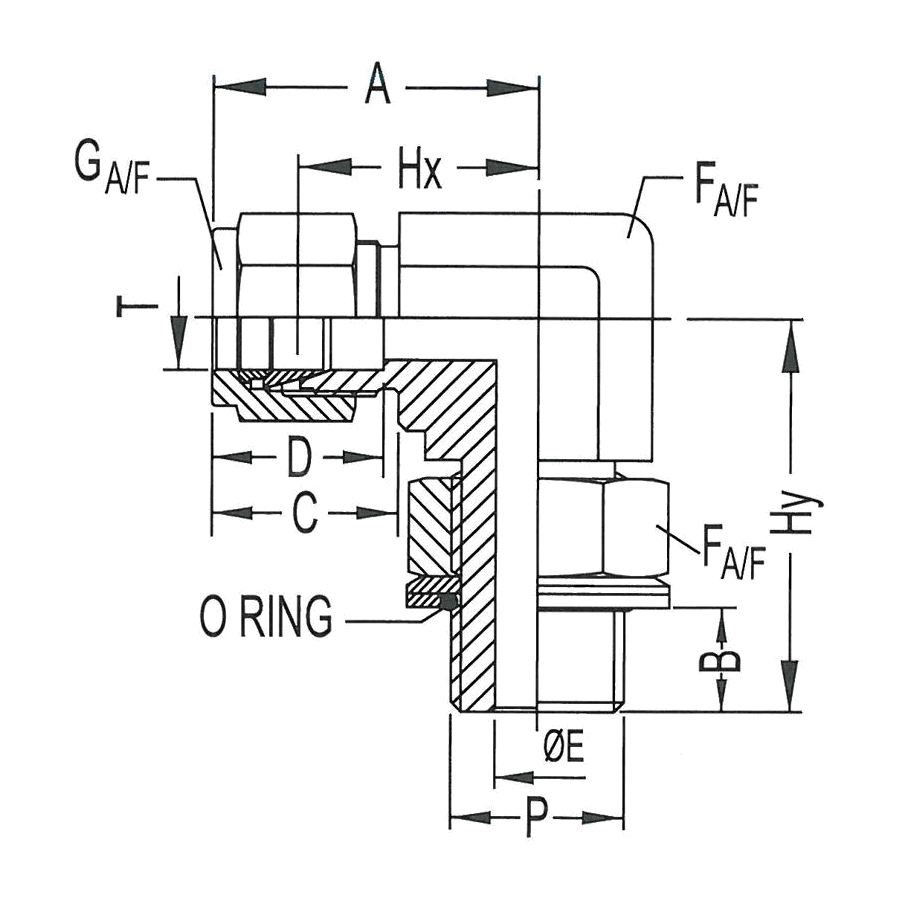

Dimensions	Hex/Wrench: 0.5" Overall Length/Centerline: 0.77" Weight: 0.4416 lb
Performance Specifications	Temperature Range: -15°F to 400°F Temperature Notes: Temperature limited by FKM Seal Pressure Rating Notes: See Tube Pressure Rating Chart
Cross References	Parker IPD ALOK Part Number: 4MSEL2R-B Swagelok Part Number: B-400-2-2PR
Series Configuration	Double Ferrule Compression x Male Adjustable BSPP ORR
Side 1 Connection Type	Double Ferrule Compression
Side 2 Connection Type	Male Adjustable BSPP ORR
Product Type	Fittings
