N6400-06-06-O-B - Capital Rubber & Gasket: A Singer Industrial Company

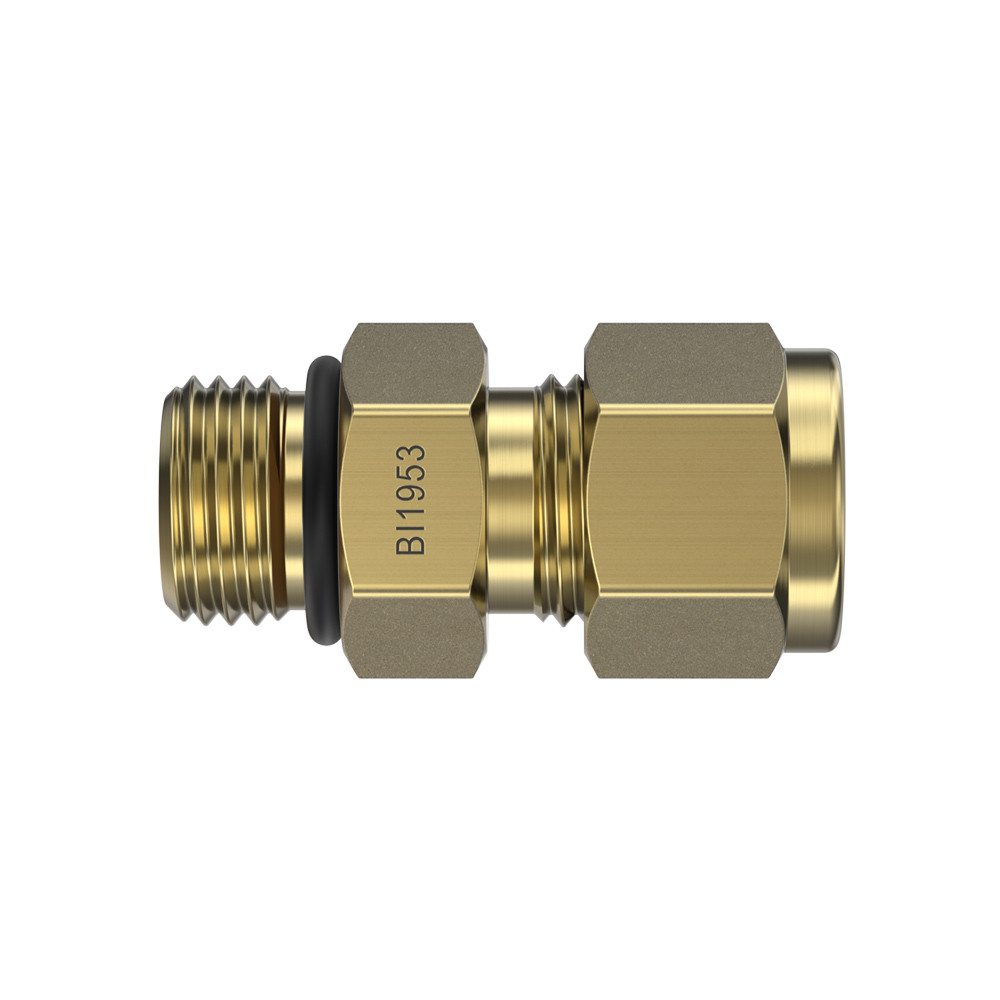

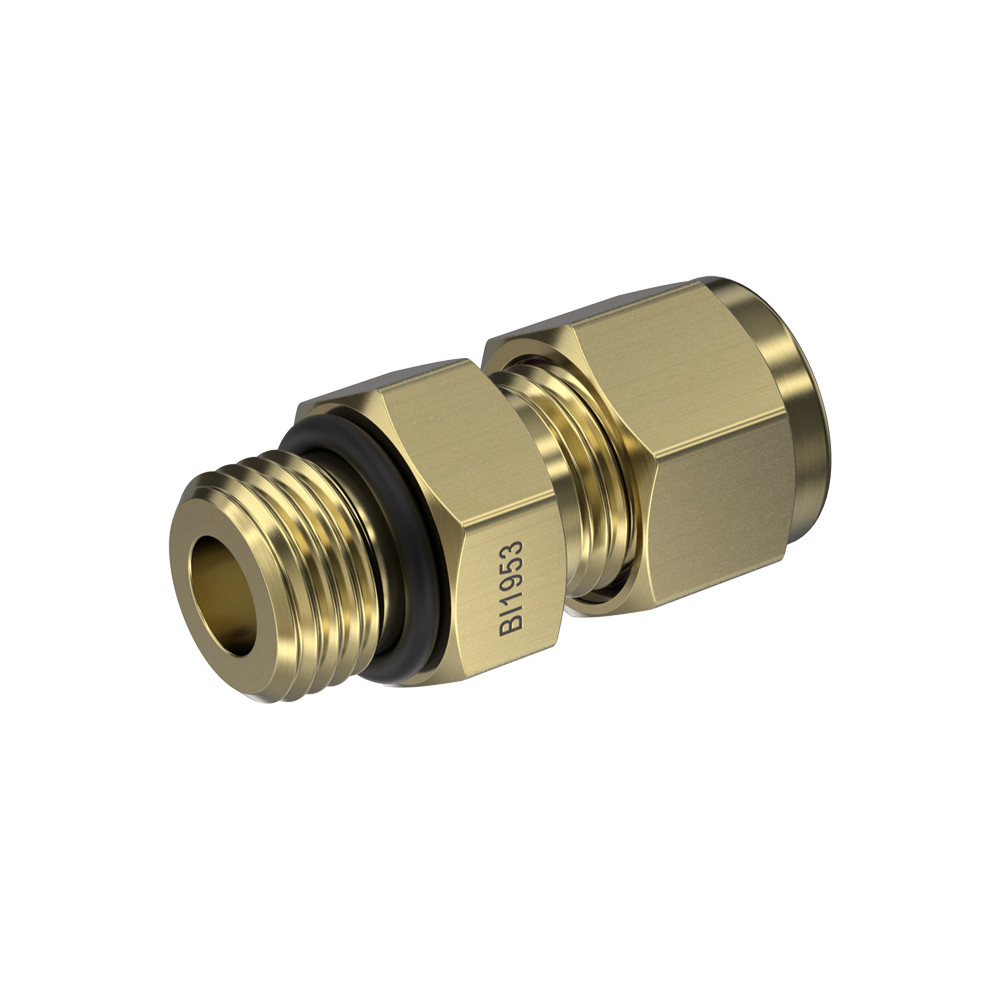

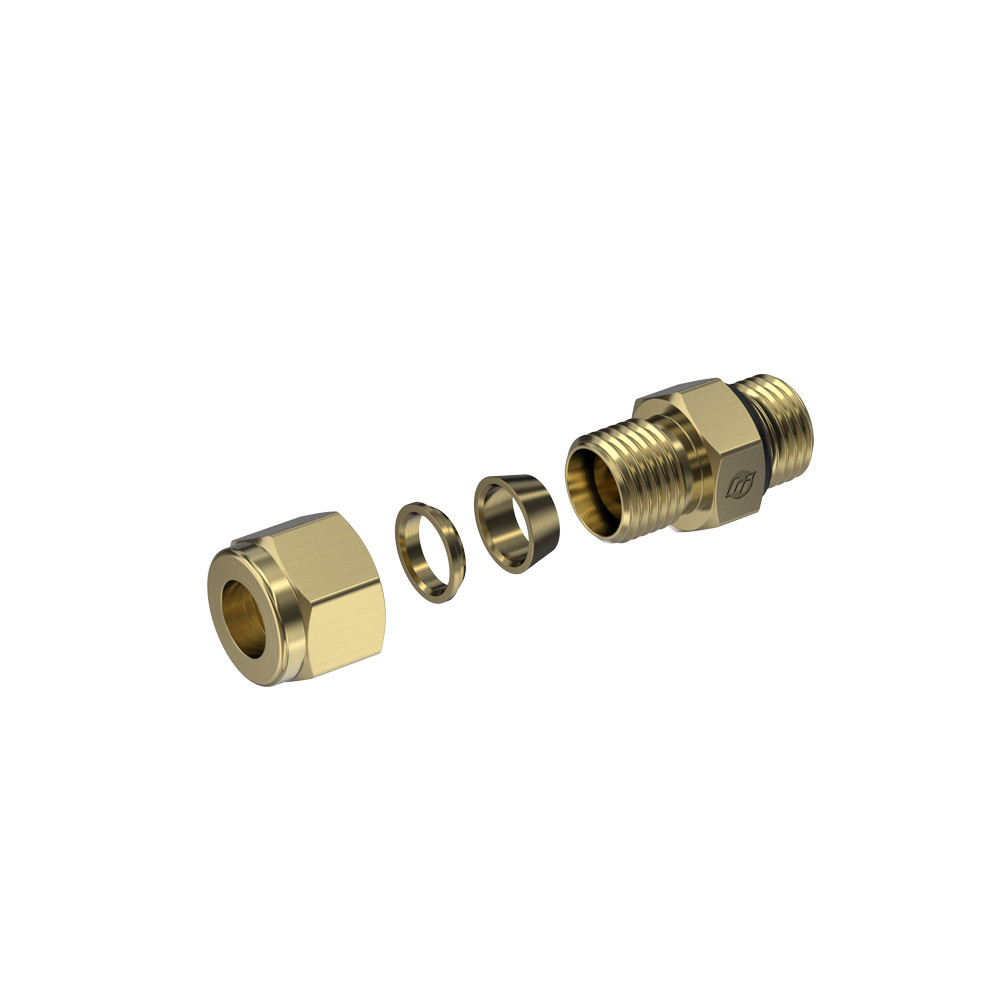

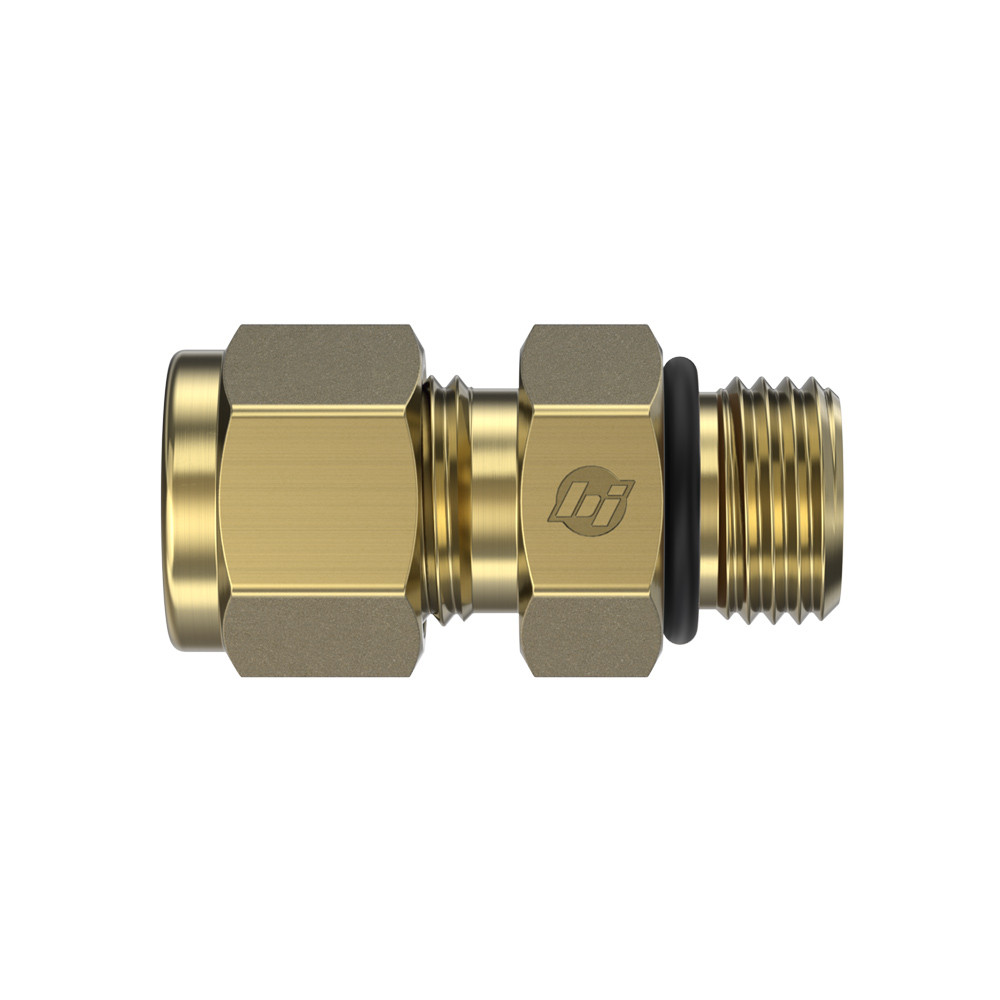

Brass, Brennan Tube Fitting Male SAE Port Connector, 3/8″ Tube OD x 9/16-18 UNF Male ORB

Connection Details	Side 1 Connection Type: Double Ferrule Compression Side 1 Tube OD: 3/8" Side 1 Thread Type: 9/16-20 UN Side 1 Role: Tube Connection Side 1 Replacement Ferrule: N0319-F-06-B, N0319-B-06-B Side 1 Replacement Nut: N0318-06-B Side 1 Tube Fitting System: Brennan N Series Side 2 Connection Type: Male ORB Side 2 Thread Type: 9/16-18 UNF Side 2 Standard: SAE J1926 Side 2 Role: Port Connection Side 2 Replacement Seal: 4000-06
Body & Materials	Shape: Straight Shape Type: Male Connector Primary Material: Brass Material Grade: ASTM B16 C36000 Seal Code: FKM Seal Material: Viton (Fluorocarbon) Length: 1.46"
Dimensions	Hex/Wrench: 0.6875" Overall Length/Centerline: 1.46" Weight: 0.1306 lb
Performance Specifications	Temperature Range: -15°F to 400°F Temperature Notes: Temperature limited by FKM Seal Pressure Rating Notes: See Tube Pressure Rating Chart
Cross References	Parker IPD ALOK Part Number: 6M1SC6-B Swagelok Part Number: B-600-1-6-ST
Series Configuration	Double Ferrule Compression x Male ORB
Side 1 Connection Type	Double Ferrule Compression
Side 2 Connection Type	Male ORB
Product Type	Fittings
