N2706-LN-04-04-B - Capital Rubber & Gasket: A Singer Industrial Company

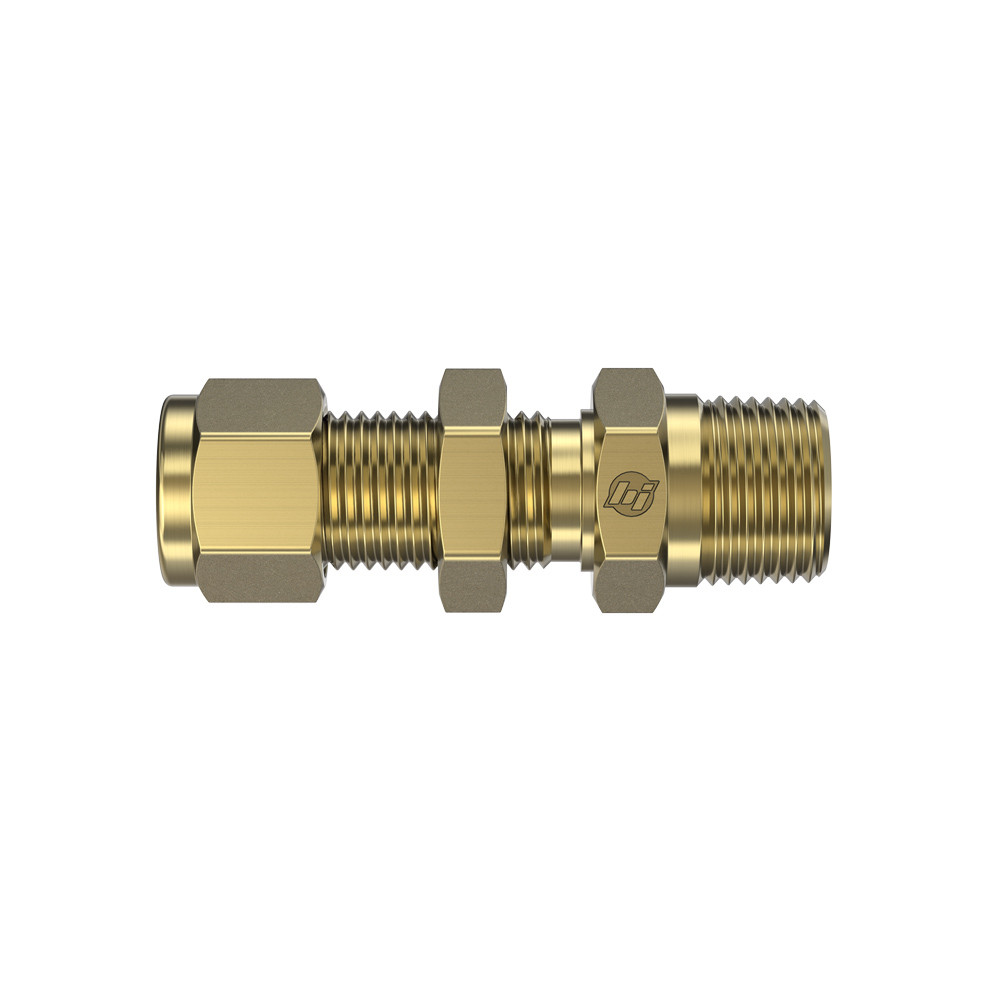

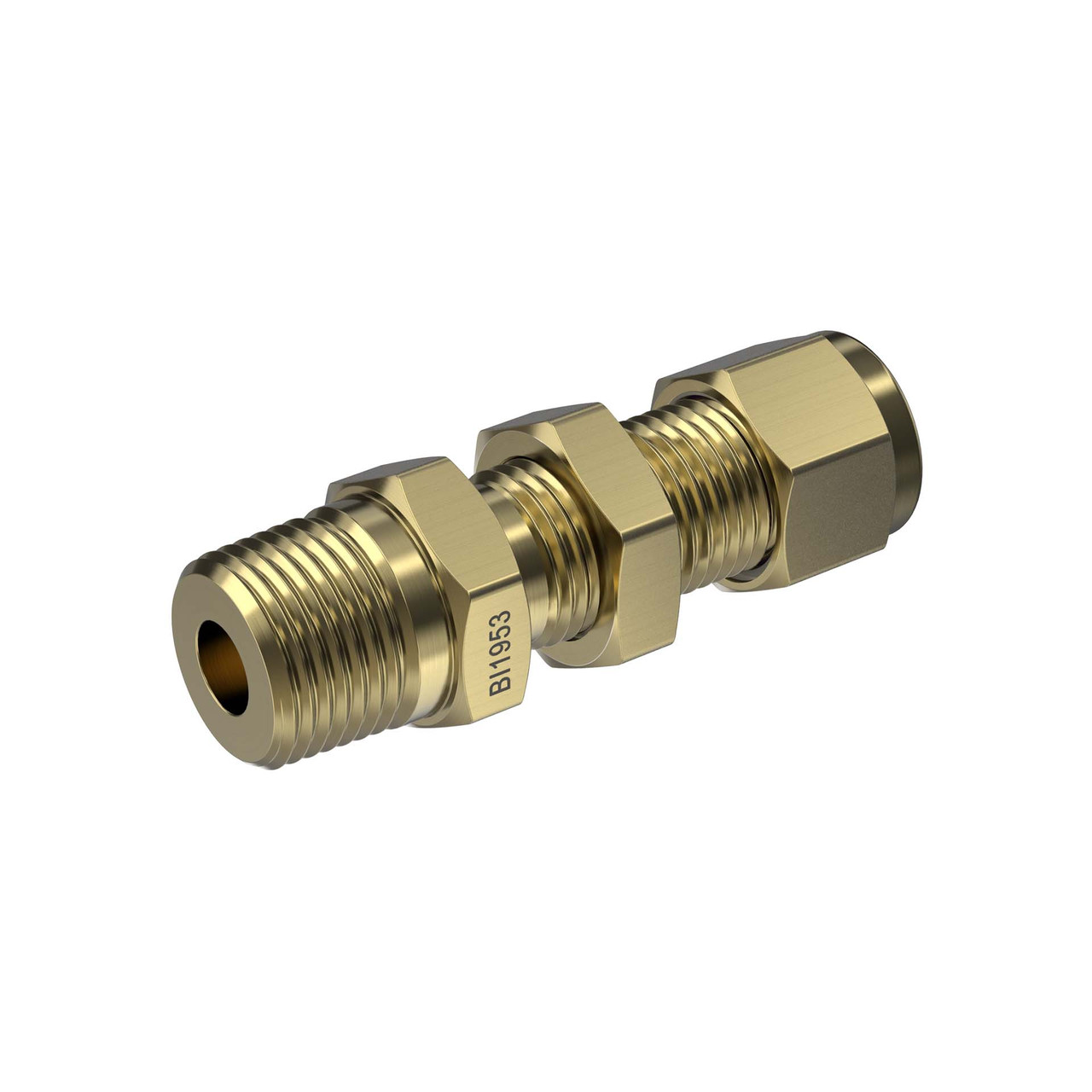

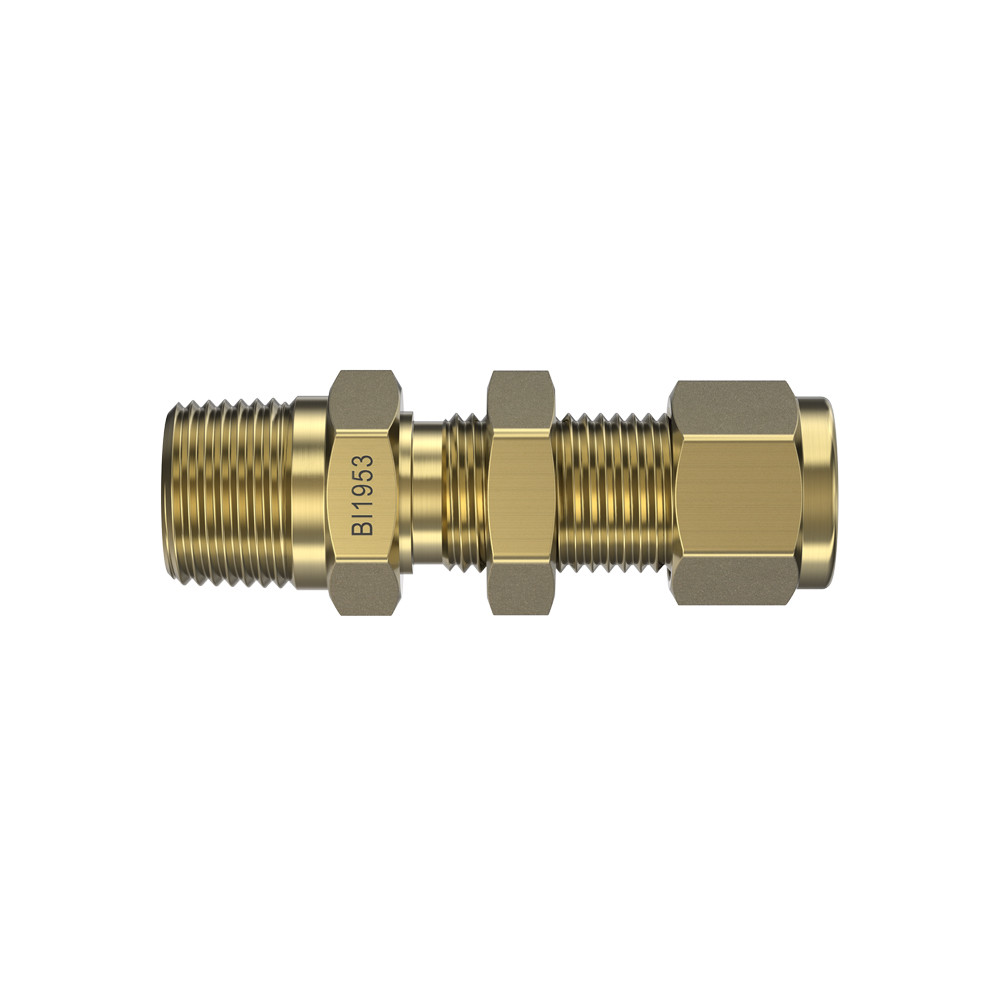

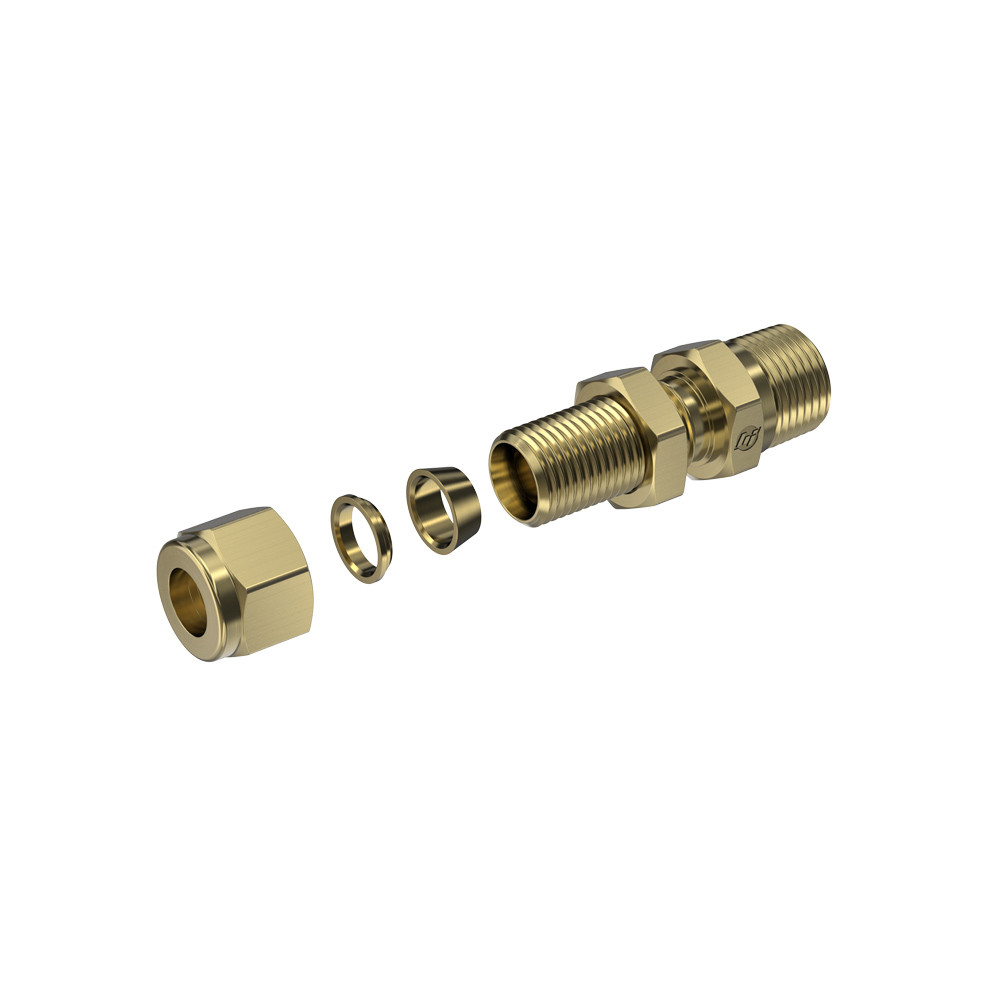

Brass, Brennan Tube Fitting Bulkhead Male Connector, 1/4″ Tube OD x 1/4″ Male NPT

Connection Details	Side 1 Connection Type: Double Ferrule Compression Side 1 Tube OD: 1/4" Side 1 Thread Type: 7/16-20 UNF Side 1 Role: Tube Connection Side 1 Replacement Ferrule: N0319-F-04-B, N0319-B-04-B Side 1 Replacement Nut: N0318-04-B Side 1 Tube Fitting System: Brennan N Series Side 2 Connection Type: Male NPT Side 2 Pipe Size: 1/4" Side 2 Thread Type: 1/4-18 NPT Side 2 Standard: ASME/ANSI B1.20.1 Side 2 Role: Pipe Connection
Body & Materials	Shape: Straight Shape Type: Bulkhead Male Connector Primary Material: Brass Material Grade: ASTM B16 C36000 Length: 2.13"
Dimensions	Hex/Wrench: 0.625" Overall Length/Centerline: 2.13" Weight: 0.2026 lb
Performance Specifications	Working Pressure: 1300 psi Temperature Range: -325°F to 400°F Pressure Rating Notes: See Tube Pressure Rating Chart
Cross References	Parker IPD ALOK Part Number: 4MBC4N-B
Series Configuration	Double Ferrule Compression Bulkhead x Male NPT
Side 1 Connection Type	Double Ferrule Compression
Side 2 Connection Type	Male NPT
Product Type	Fittings
