N2700-LN-02-02-B - Capital Rubber & Gasket: A Singer Industrial Company

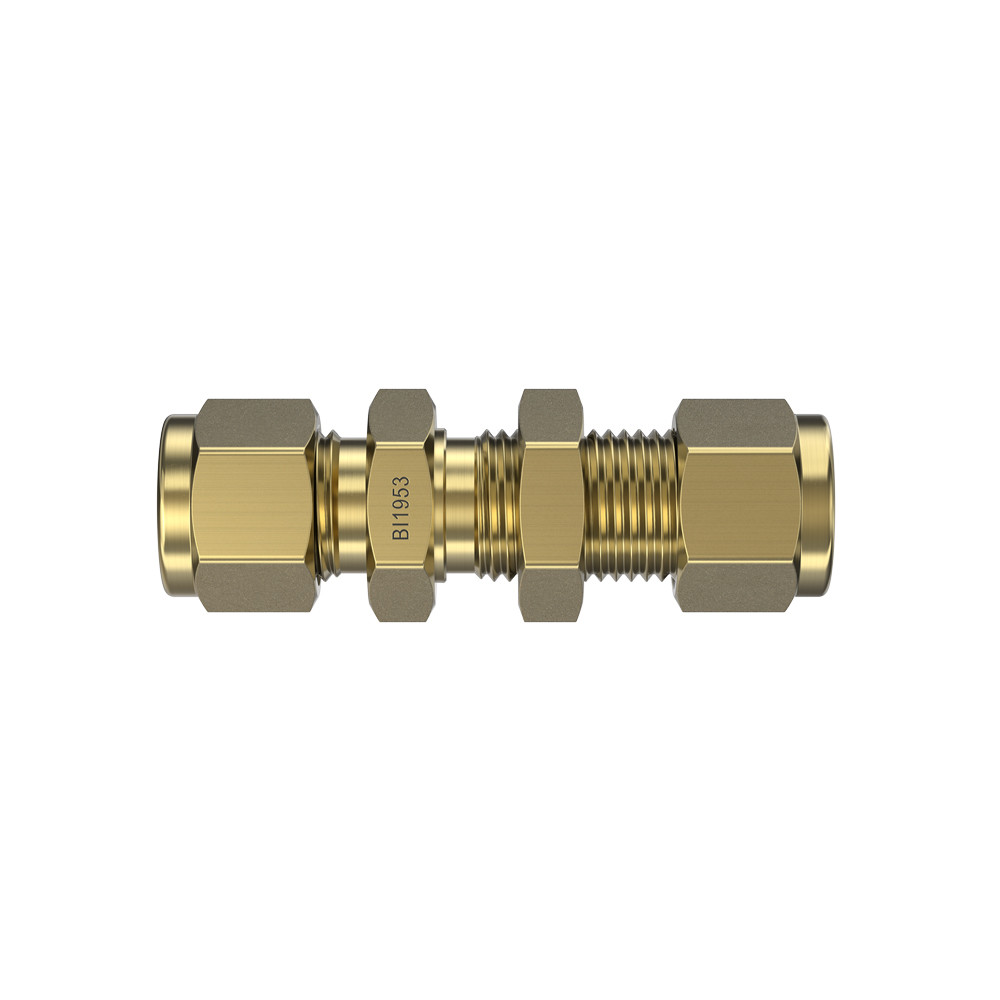

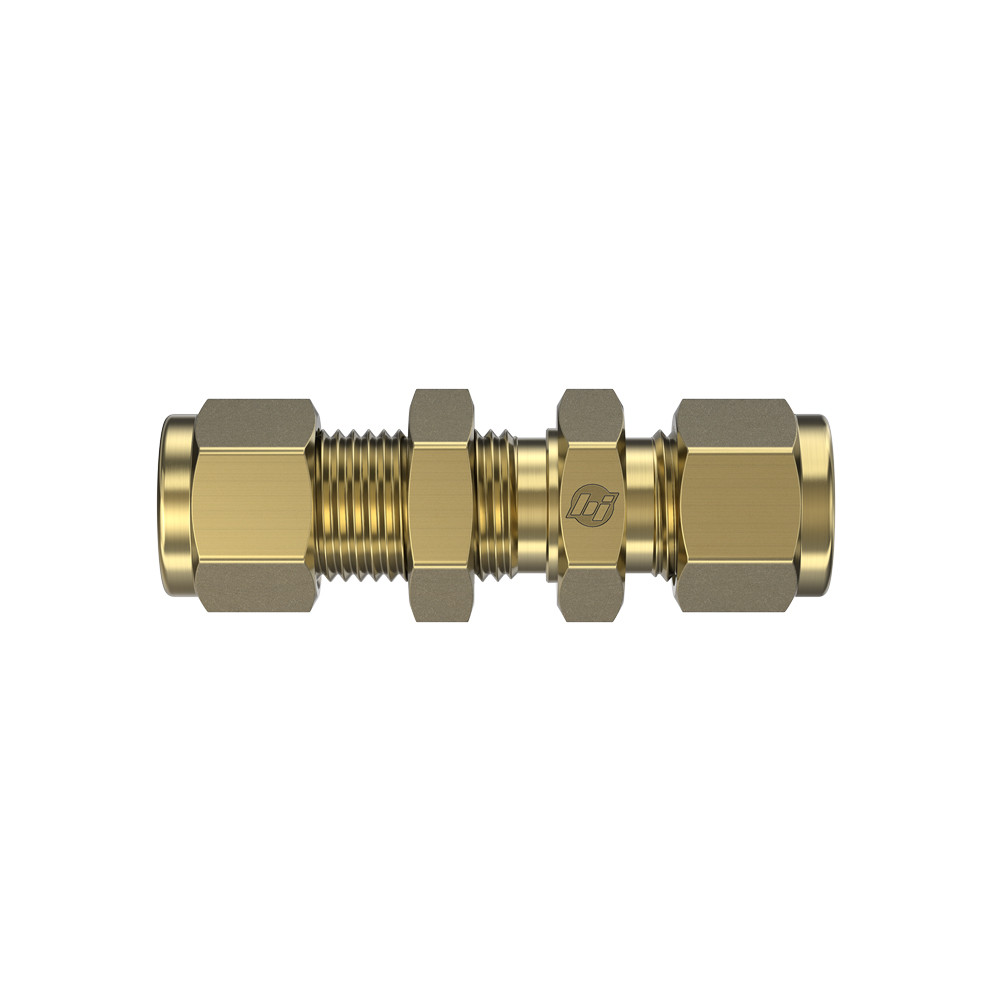

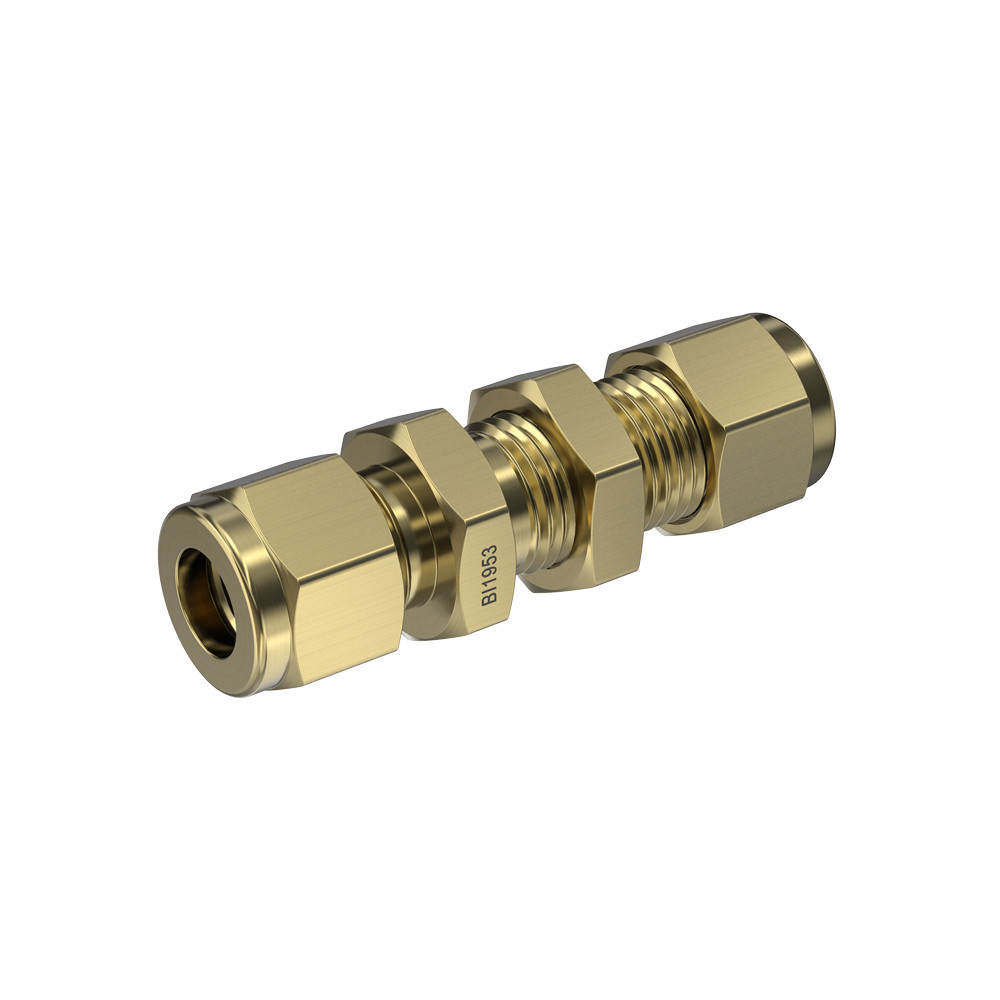

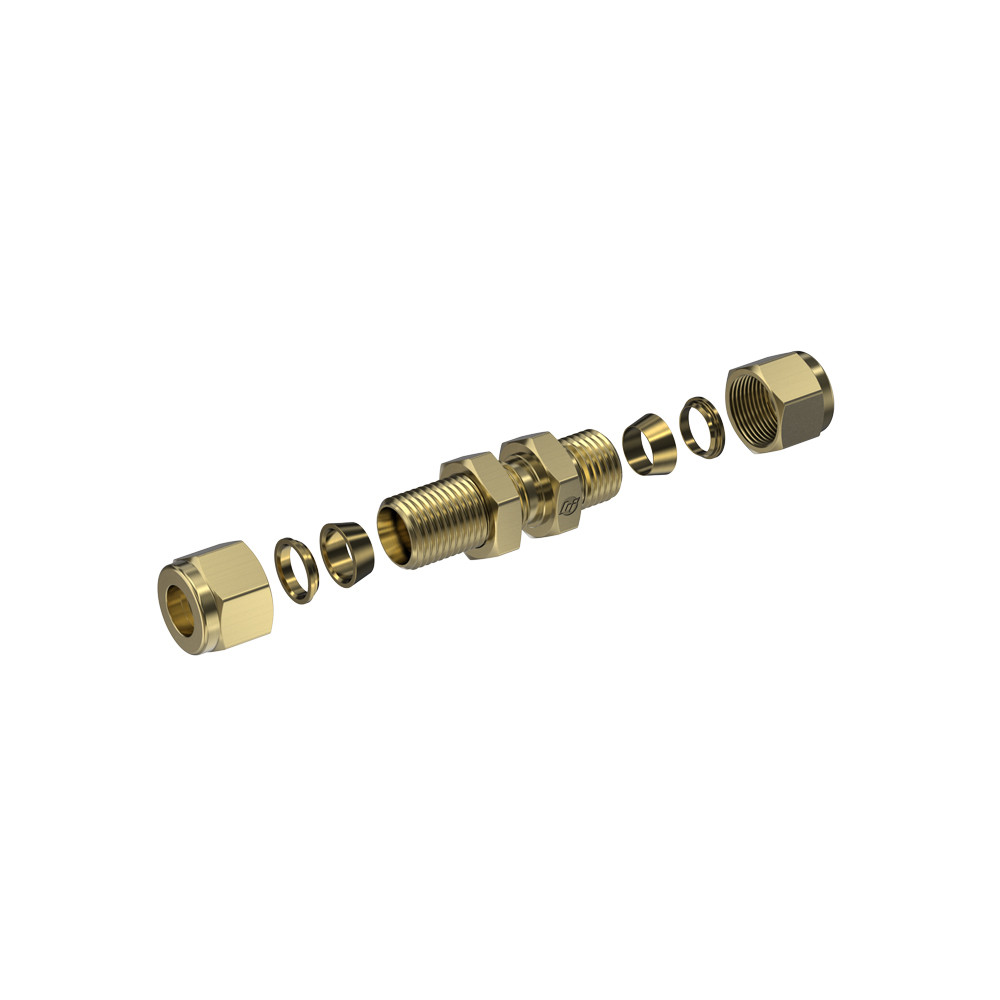

Brass, Brennan Tube Fitting Bulkhead Union, 1/8″ Tube OD

Connection Details	Side 1 Connection Type: Double Ferrule Compression Side 1 Tube OD: 1/8" Side 1 Thread Type: 5/16-20 UN Side 1 Role: Tube Connection Side 1 Replacement Ferrule: N0319-F-02-B, N0319-B-02-B Side 1 Replacement Nut: N0318-02-B Side 1 Tube Fitting System: Brennan N Series Side 2 Connection Type: Double Ferrule Compression Side 2 Tube OD: 1/8" Side 2 Thread Type: 5/16-20 UN Side 2 Role: Tube Connection Side 2 Replacement Ferrule: N0319-F-02-B, N0319-B-02-B Side 2 Replacement Nut: N0318-02-B Side 2 Tube Fitting System: Brennan N Series
Body & Materials	Shape: Straight Shape Type: Bulkhead Union Primary Material: Brass Material Grade: ASTM B16 C36000 Length: 1.95"
Dimensions	Hex/Wrench: 0.5" Overall Length/Centerline: 1.95" Weight: 0.1429 lb
Performance Specifications	Working Pressure: 2900 psi Temperature Range: -325°F to 400°F Pressure Rating Notes: See Tube Pressure Rating Chart
Cross References	Parker IPD ALOK Part Number: 2BC2-B Swagelok Part Number: B-200-61
Series Configuration	Double Ferrule Compression Bulkhead x Double Ferrule Compression
Side 1 Connection Type	Double Ferrule Compression
Side 2 Connection Type	Double Ferrule Compression
Product Type	Fittings
