N2605-06-04-06-B - Capital Rubber & Gasket: A Singer Industrial Company

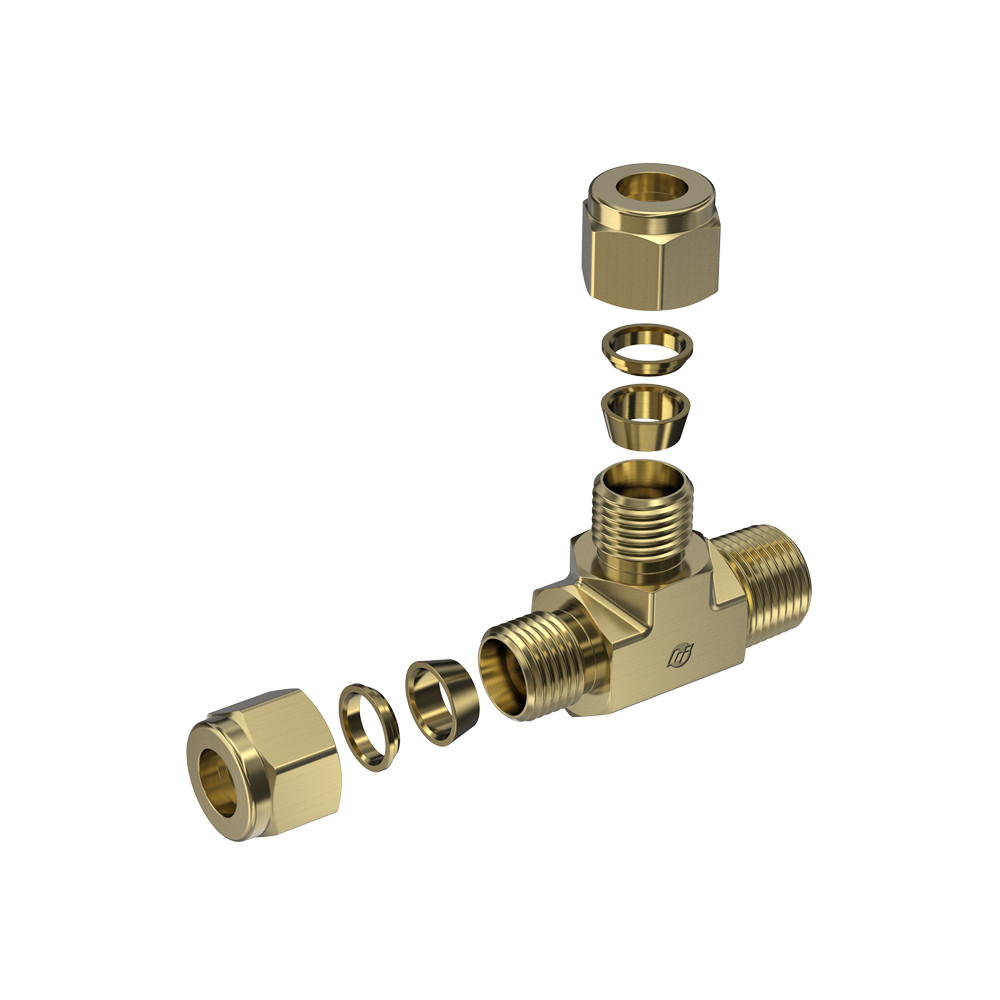

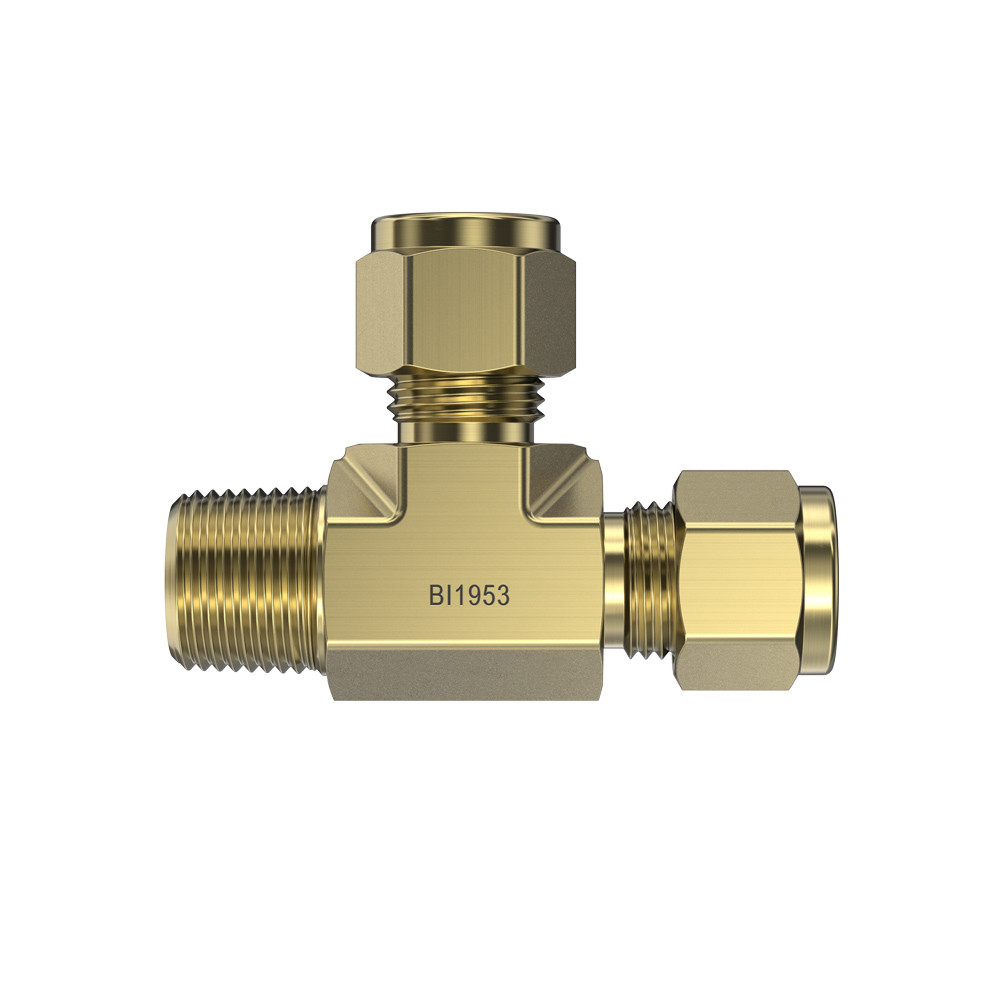

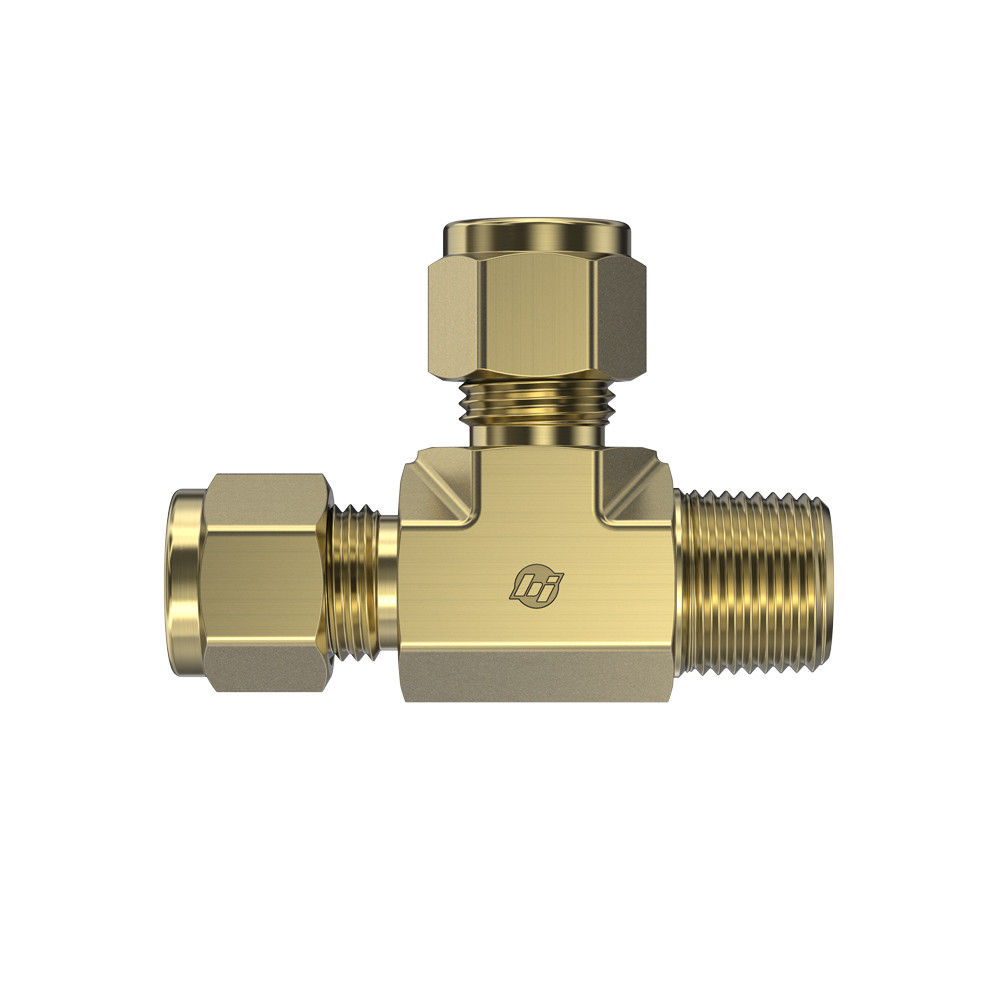

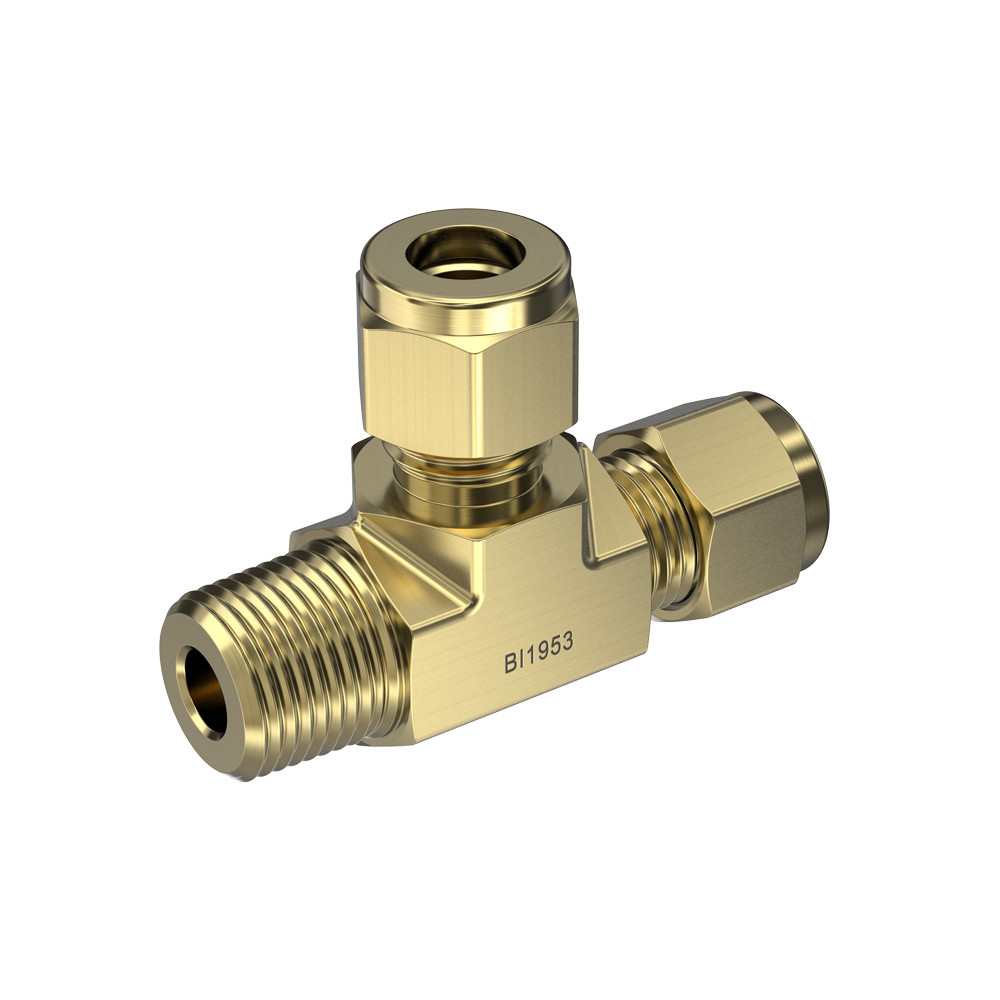

Brass, Brennan Tube Fitting Male Run Tee, 3/8″ Tube OD x 1/4″ Male NPT x 3/8″ Tube OD

Connection Details	Side 1 Connection Type: Double Ferrule Compression Side 1 Tube OD: 3/8" Side 1 Thread Type: 9/16-20 UN Side 1 Role: Tube Connection Side 1 Replacement Ferrule: N0319-F-06-B, N0319-B-06-B Side 1 Replacement Nut: N0318-06-B Side 1 Tube Fitting System: Brennan N Series Side 2 Connection Type: Male NPT Side 2 Pipe Size: 1/4" Side 2 Thread Type: 1/4-18 NPT Side 2 Standard: ASME/ANSI B1.20.1 Side 2 Role: Pipe Connection Side 3 Connection Type: Double Ferrule Compression Side 3 Tube OD: 3/8" Side 3 Thread Type: 9/16-20 UN Side 3 Role: Tube Connection Side 3 Replacement Ferrule: N0319-F-06-B, N0319-B-06-B Side 3 Replacement Nut: N0318-06-B Side 3 Tube Fitting System: Brennan N Series
Body & Materials	Shape: Tee Shape Type: Male Run Tee Primary Material: Brass Material Grade: ASTM B124 CA37700 Length: 0.91"
Dimensions	Hex/Wrench: 0.625" Overall Length/Centerline: 0.91" Weight: 0.2982 lb
Performance Specifications	Working Pressure: 1000 psi Temperature Range: -325°F to 400°F Pressure Rating Notes: See Tube Pressure Rating Chart
Cross References	Parker IPD ALOK Part Number: 6MRT4N-B Swagelok Part Number: B-600-3TMT
Series Configuration	Double Ferrule Compression x Male NPT x Double Ferrule Compression
Side 1 Connection Type	Double Ferrule Compression
Side 2 Connection Type	Male NPT
Shape	Tee
Product Type	Fittings
