N2602-06-06-04-B - Capital Rubber & Gasket: A Singer Industrial Company

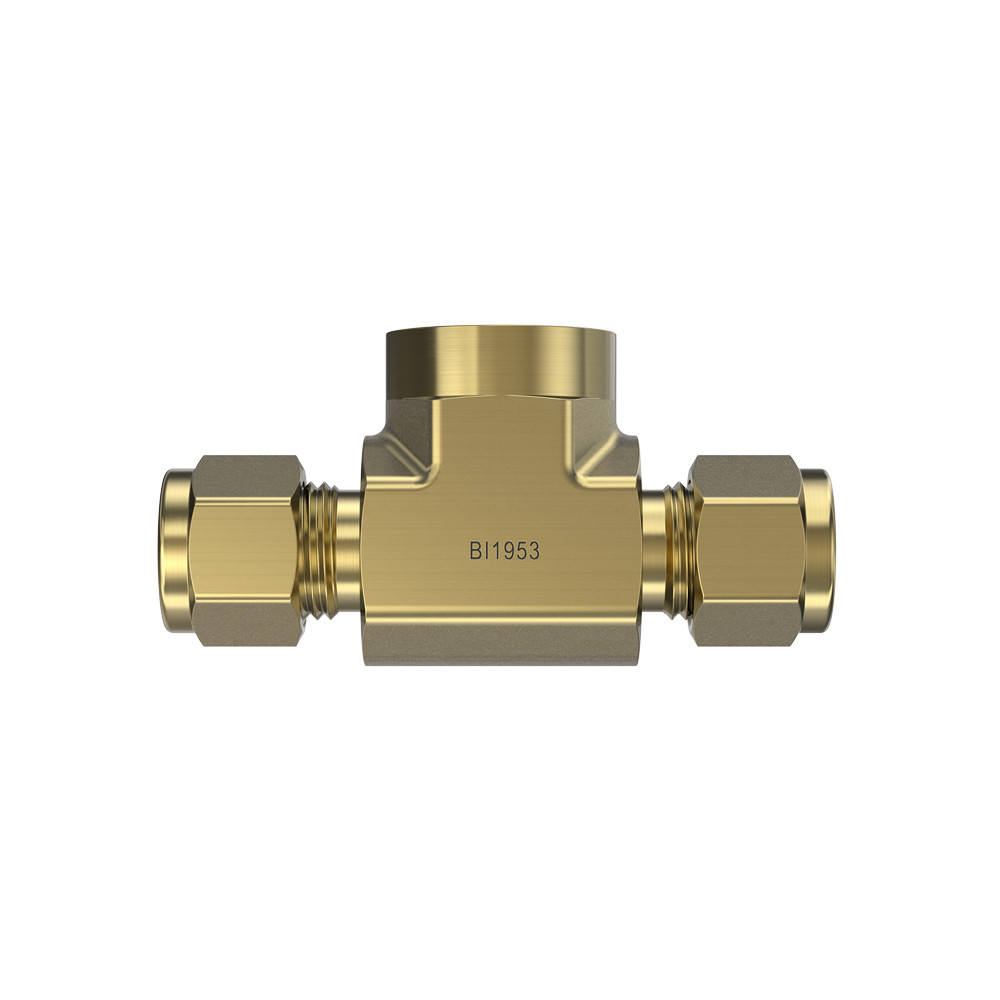

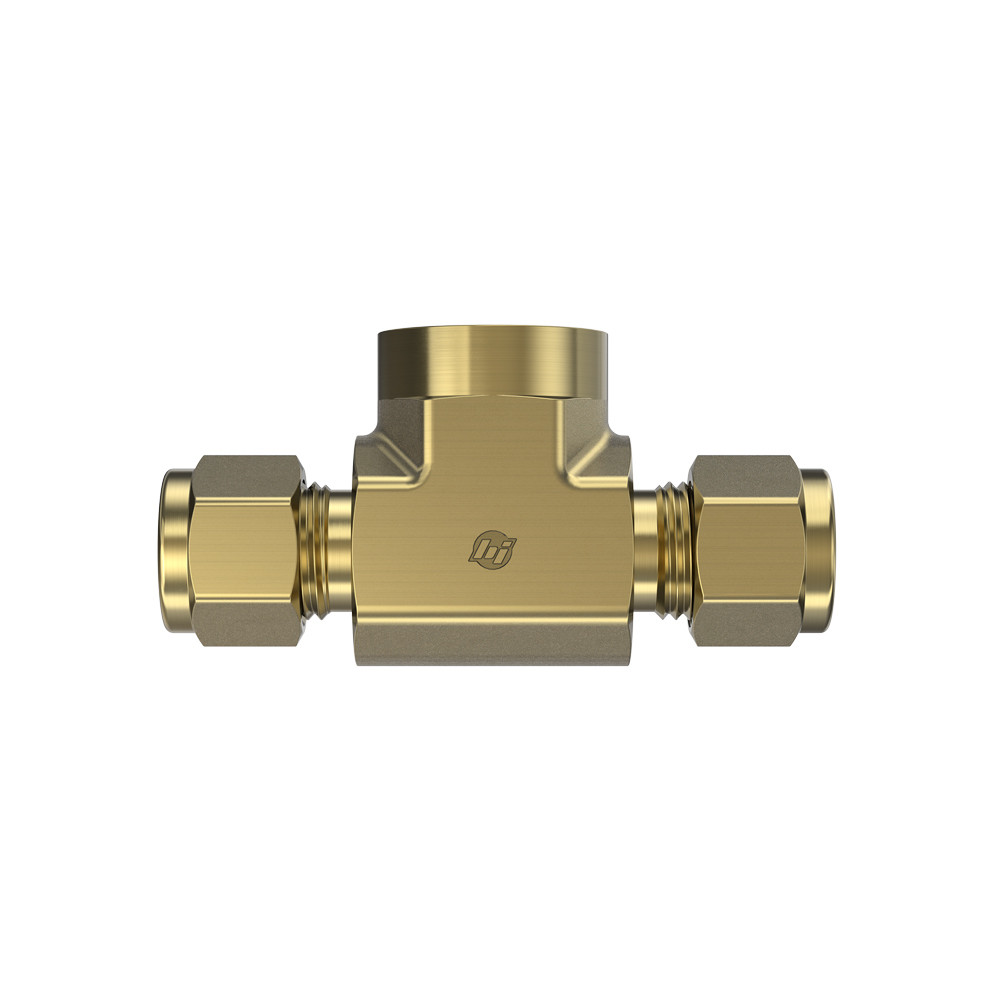

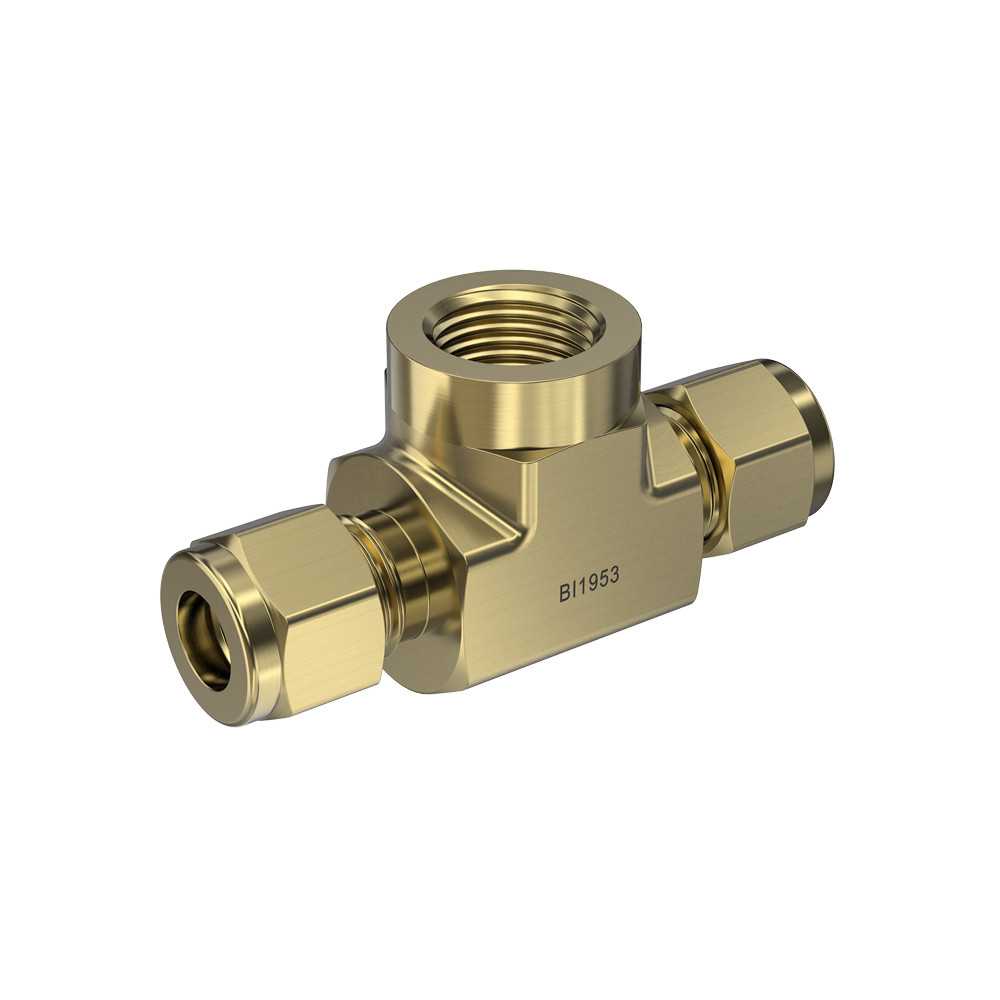

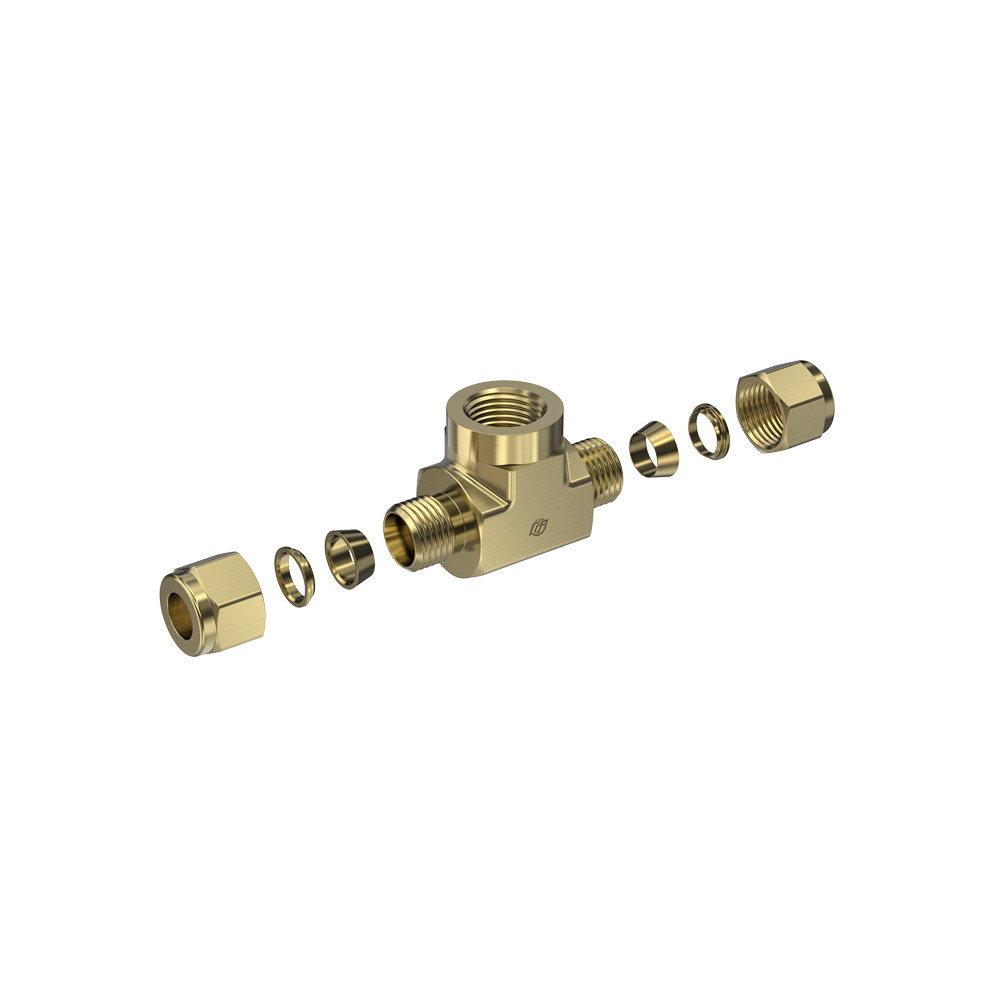

Brass, Brennan Tube Fitting Female Branch Tee, 3/8″ Tube OD x 3/8″ Tube OD x 1/4″ Female NPT

Connection Details	Side 1 Connection Type: Double Ferrule Compression Side 1 Tube OD: 3/8" Side 1 Thread Type: 9/16-20 UN Side 1 Role: Tube Connection Side 1 Replacement Ferrule: N0319-F-06-B, N0319-B-06-B Side 1 Replacement Nut: N0318-06-B Side 1 Tube Fitting System: Brennan N Series Side 2 Connection Type: Double Ferrule Compression Side 2 Tube OD: 3/8" Side 2 Thread Type: 9/16-20 UN Side 2 Role: Tube Connection Side 2 Replacement Ferrule: N0319-F-06-B, N0319-B-06-B Side 2 Replacement Nut: N0318-06-B Side 2 Tube Fitting System: Brennan N Series Side 3 Connection Type: Female NPT Side 3 Pipe Size: 1/4" Side 3 Thread Type: 1/4-18 NPT Side 3 Standard: ASME/ANSI B1.20.1 Side 3 Role: Pipe Connection
Body & Materials	Shape: Tee Shape Type: Female Branch Tee Primary Material: Brass Material Grade: ASTM B124 CA37700 Length: 0.94"
Dimensions	Hex/Wrench: 0.8125" Overall Length/Centerline: 0.94" Weight: 0.3259 lb
Performance Specifications	Working Pressure: 1000 psi Temperature Range: -325°F to 400°F Pressure Rating Notes: See Tube Pressure Rating Chart
Cross References	Parker IPD ALOK Part Number: 6FBT4N-B Swagelok Part Number: B-600-3TTF
Series Configuration	Double Ferrule Compression x Double Ferrule Compression x Female NPT
Side 1 Connection Type	Double Ferrule Compression
Side 2 Connection Type	Double Ferrule Compression
Shape	Tee
Product Type	Fittings
